Renault F4R - Camshaft Position Sensor: Removal - Refitting

17B-13
PETROL INJECTION
Camshaft position sensor: Removal - Refitting
K4M, and 858 or 866
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
-the intake distributor (see 12A, Fuel mixture, Inlet
manifold: Removal - Refitting, page 12A-23) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

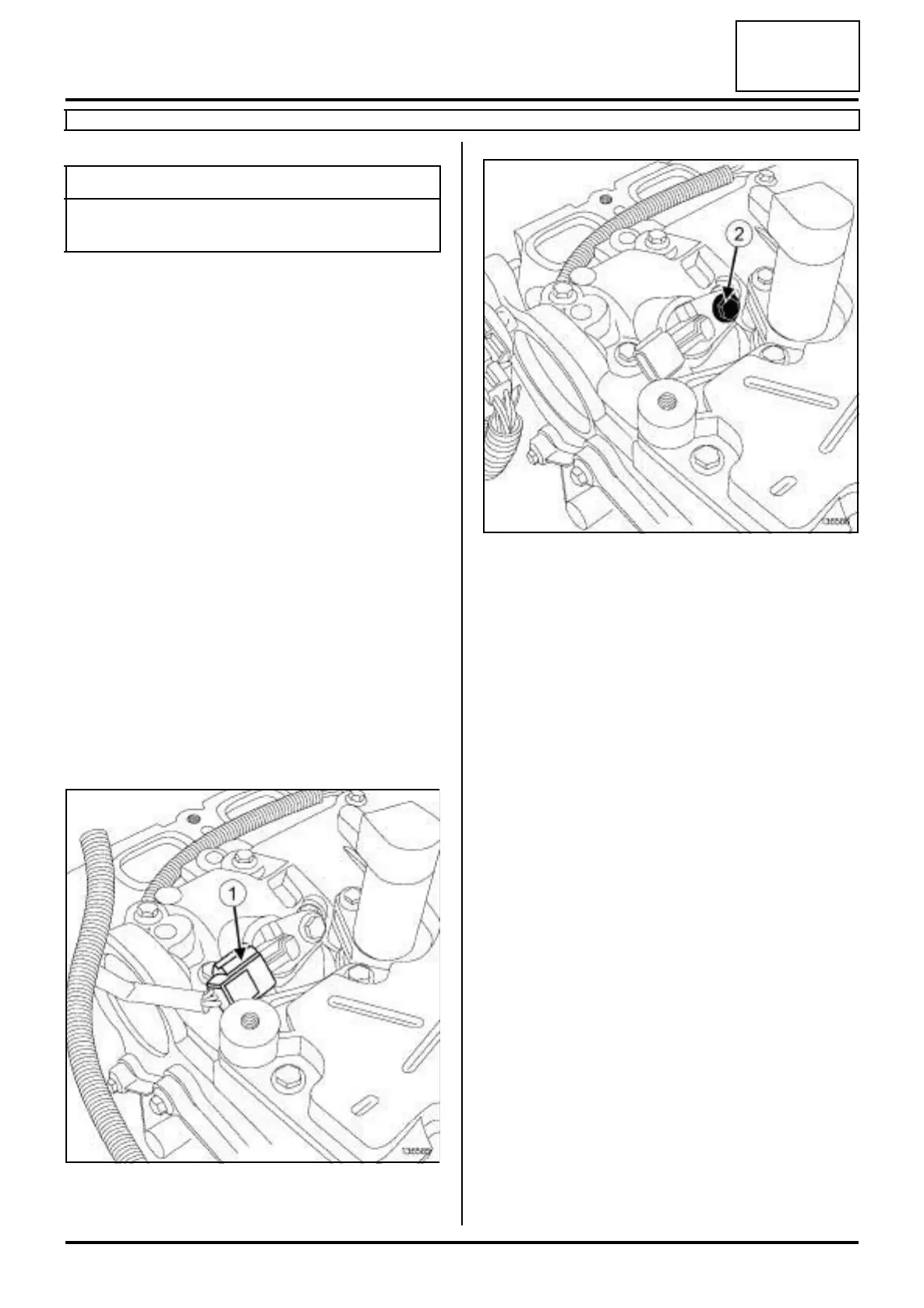

a Disconnect the connector (1) from the camshaft po-
sition sensor.
a Remove:
- the bolt (2) from the camshaft position sensor,
- the camshaft position sensor.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the camshaft position sensor.
a Torque tighten the camshaft position sensor bolt
(8 Nm).
a Connect the camshaft position sensor connector.
II - FINAL OPERATION
a Refit:
- the inlet manifold (see 12A, Fuel mixture, Inlet
manifold: Removal - Refitting, page 12A-23) ,
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the engine cover.
Tightening torquesm
camshaft position sen-
sor bolt
8 Nm
136585
136586
