17B-14
PETROL INJECTION
Camshaft position sensor: Removal - Refitting
F4R
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

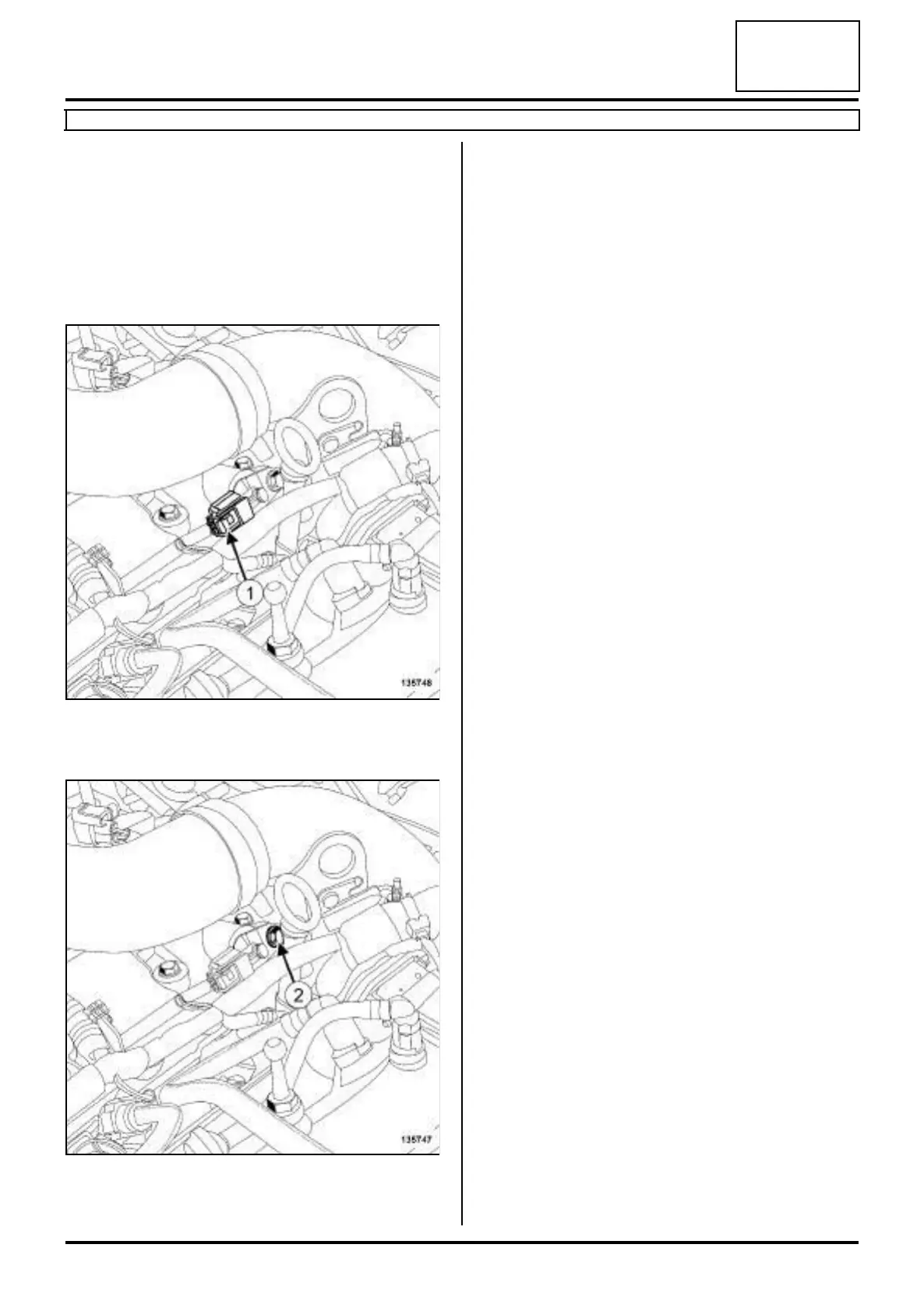

a Disconnect the connector (1) from the camshaft po-
sition sensor.
a Remove:
-the bolt (2) from the camshaft position sensor,
- the camshaft position sensor.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the camshaft position sensor.
a Connect the camshaft position sensor connector.
II - FINAL OPERATION
a Refit the engine cover.
135748
135747
