Renault F4R - Camshaft Position Sensor: Removal - Refitting

13B-19
DIESEL INJECTION
Camshaft position sensor: Removal - Refitting
K9K, and 832 or 834
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION

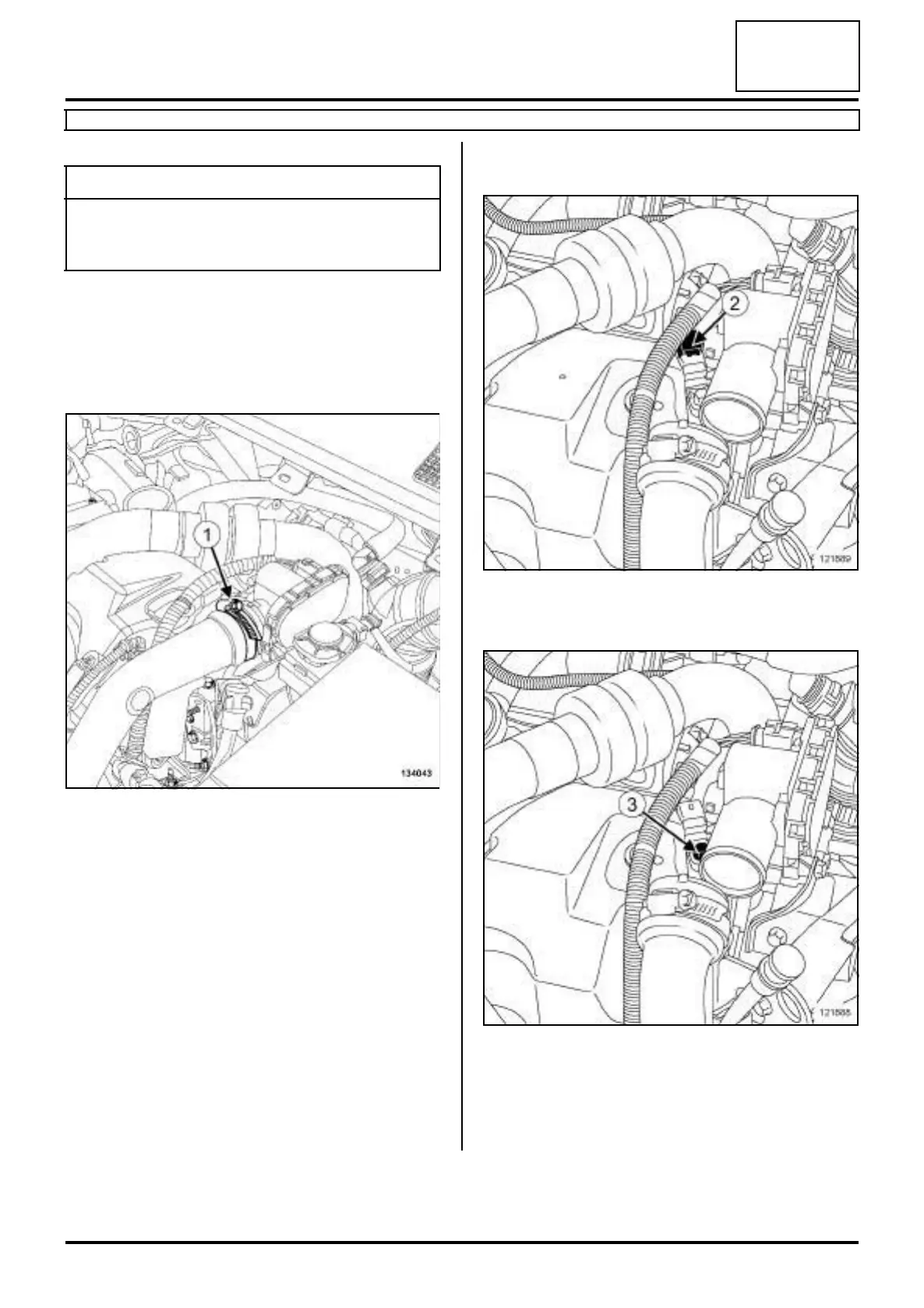

a Remove the front engine cover.
a Separate the intercooler air outlet pipe clip (1) on the
damper valve.
a Disconnect the intercooler air outlet pipe from the
damper valve.
a Move the intercooler air outlet pipe slightly away
from the damper valve.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (2) from the camshaft po-
sition sensor.
a Remove:
- the bolt (3) from the camshaft position sensor,
- the camshaft position sensor,
- the camshaft position sensor seal.
Tightening torquesm
intercooler air outlet
pipe clip on the damper
valve
5.5 N.m
134043
121889
121888
