Renault F4R - Exhaust Fuel Injector Solenoid Valve: Removal - Refitting

19B-56
EXHAUST
Exhaust fuel injector solenoid valve: Removal - Refitting
F9Q, and 870
19B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine cover,
-the fuel temperature sensor (see 13B, Diesel in-
jection, Fuel temperature sensor: Removal -
Refitting, page 13B-118) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a

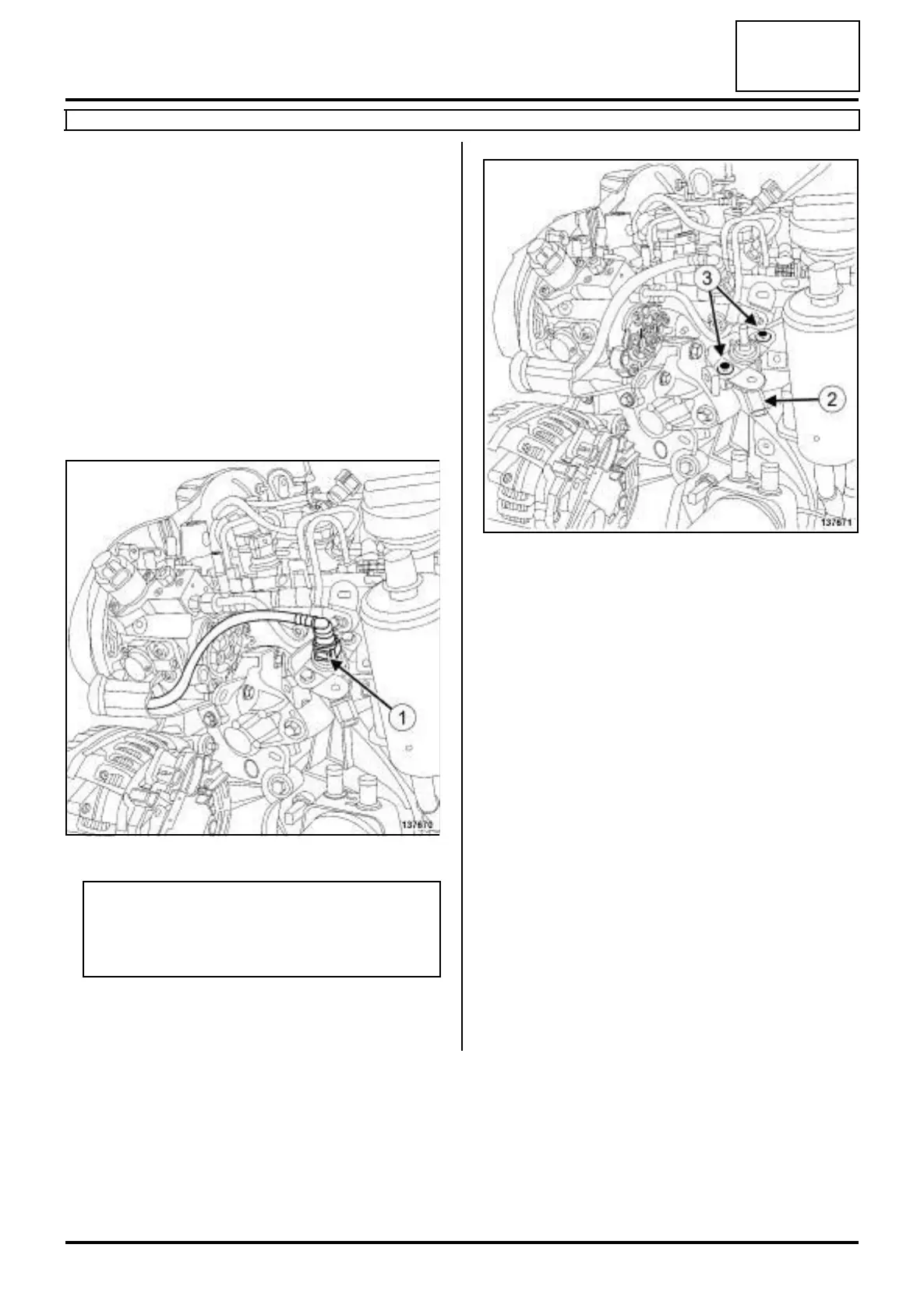

a Disconnect the upper union (1) of the fuel pipe of the
exhaust fuel injector solenoid valve.
a Fit blanking plugs.
a Disconnect the connector (2) of the exhaust fuel in-
jector solenoid valve.
a Remove the bolts (3) of the exhaust fuel injector so-
lenoid valve.
137670
WARNING
To prevent impurities from entering the circuit,
place protective plugs on all fuel circuit compo-
nents exposed to the open air.
137671
