17A-4
IGNITION
Coils Removal - Refitting
K4M
17A
REFITTING
I - REFITTING PREPARATION OPERATION

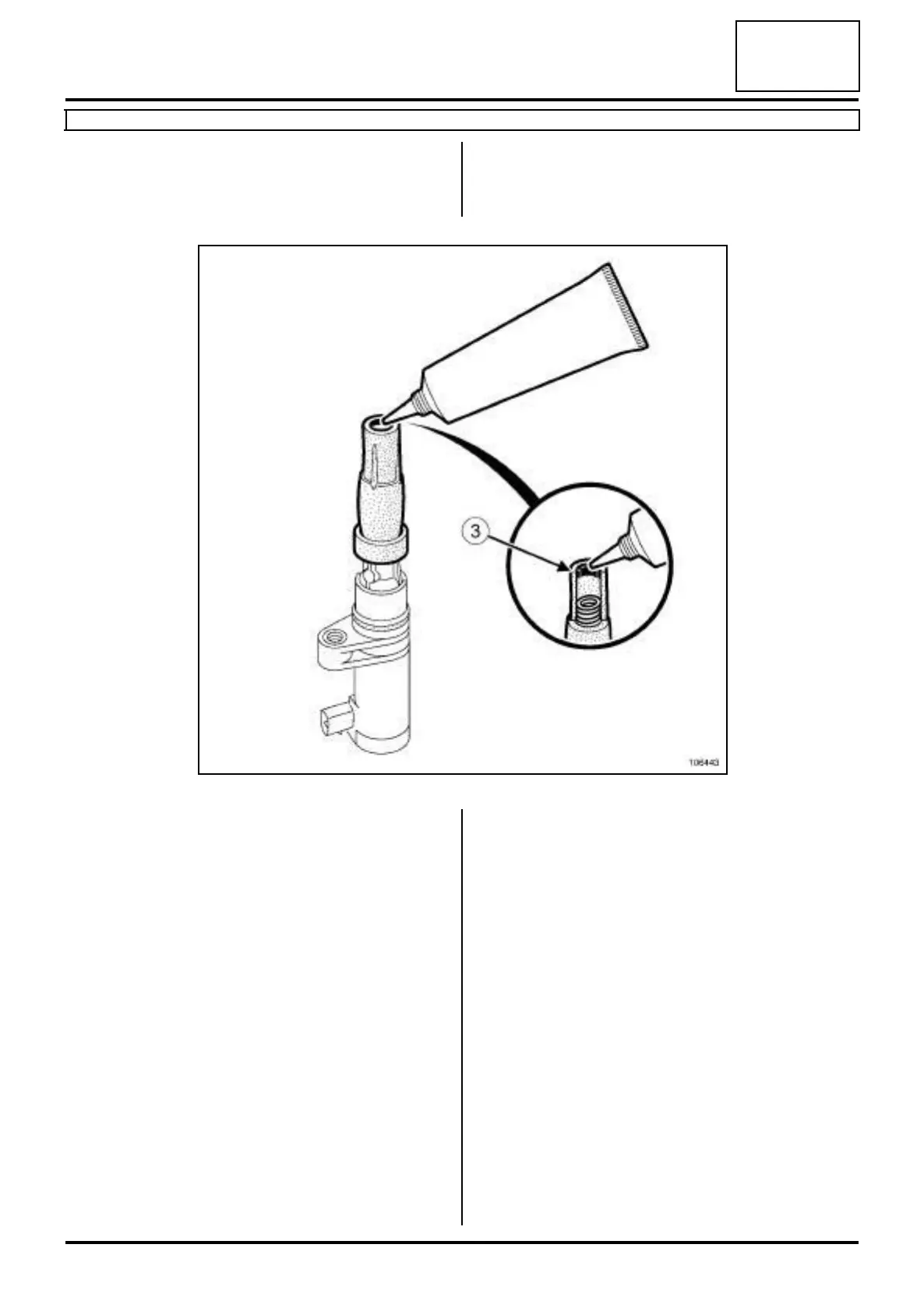

a Apply a bead of FLUOSTAR 2L grease (3) (see Ve-
hicle: Parts and ingredients for the repairwork)
(04B, Consumables - Products) 2 mm in diameter
on the internal perimeter of the high tension caps on
the four coils.
a Always replace the coil bolts.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the coils equipped with new bolts.
a Torque tighten the coil bolts (14 N.m).
a Connect the connectors to the coils.
III - FINAL OPERATION
a Refit the engine cover.
106443
