12B-57
TURBOCHARGING
Intercooler air outlet pipe: Removal - Refitting
K9K
12B

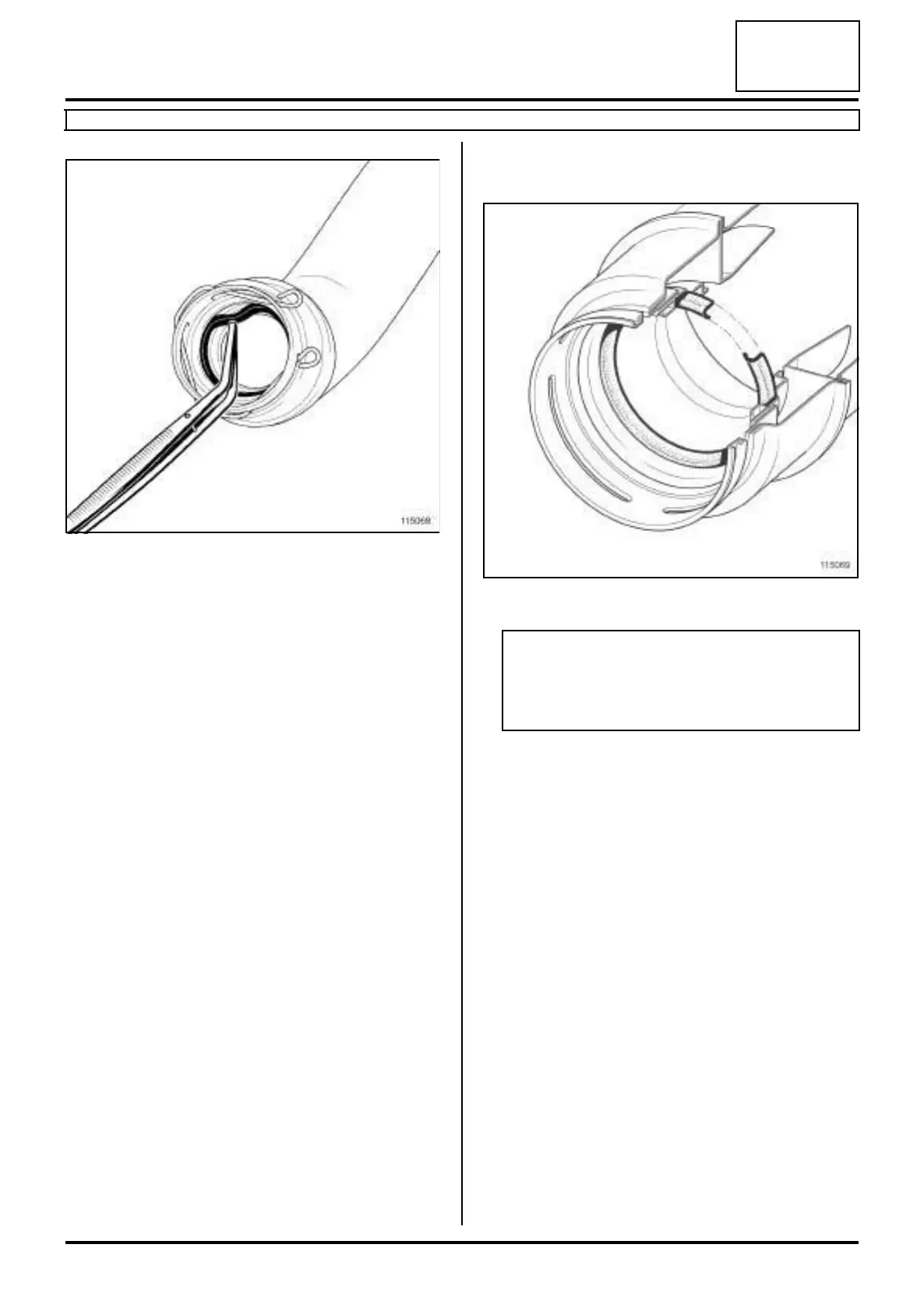

a Remove the intercooler air outlet pipe seal at the in-
tercooler end using tweezers.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: turbocharger air
cooler air outlet pipe seal (10,09,04,05).
II - REFITTING OPERATION FOR PART
CONCERNED
a
a Refit:
- the new seal for the intercooler air outlet pipe at the
intercooler end,
-the intercooler air outlet pipe equipped with a new
seal.
a Connect the intercooler air outlet pipe on the damper
valve.
a Torque tighten the intercooler air outlet pipe clip
on the damper valve (5.5 N.m).
a Clip the turbocharger pressure sensor wiring onto
the intercooler air outlet pipe.
a Connect the turbocharger pressure sensor connec-
tor.
a Refit the nut for the bracket of the intercooler air out-
let pipe.
a Fit the clip for the intercooler air outlet pipe.
a Clip the intercooler air outlet pipe onto the intercoo-
ler.
115068
115069
Note:
Check that the intercooler air outlet pipe seal at
the intercooler end is fitted the correct way
round.
