ENGINE AND CYLINDER BLOCK ASSEMBLY
Flywheel: Removal - Refitting
F4R
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

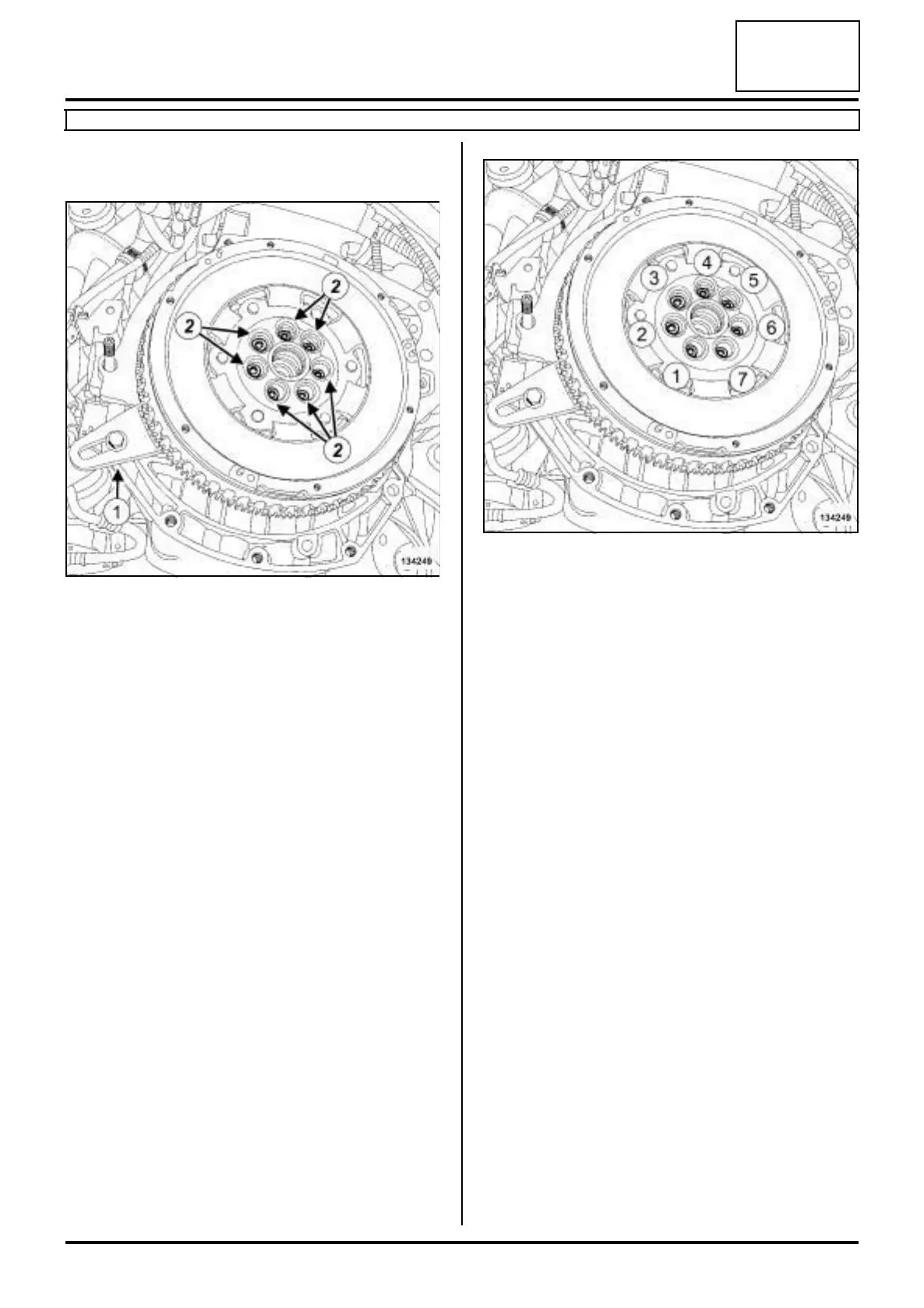

a Lock the flywheel using tool (Mot. 1431) (1) .
a Remove:
-the flywheel bolts (2) ,
-the (Mot. 1431),
-the flywheel.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Flywheel bolts (10,
03,03,14).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the flywheel bearing faces if reusing,
-the bearing faces of the crankshaft.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the flywheel,
-new flywheel bolts.
a Position the (Mot. 1431).
a Torque tighten in order the flywheel bolts (30 N.m
+ 56˚ ±±
±±
6˚).
III - FINAL OPERATION
a Refit:
- the pressure plate - disc assembly (see Mecha-
nism / Disk: Removal - Refitting) (20A, Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the starter (see 16A, Starting - Charging, Starter:
Removal - Refitting, page 16A-16) ,
- the new differential output seals (see Differential
output seal: Removal - Refitting) (21A, Manual
gearbox),
