TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A

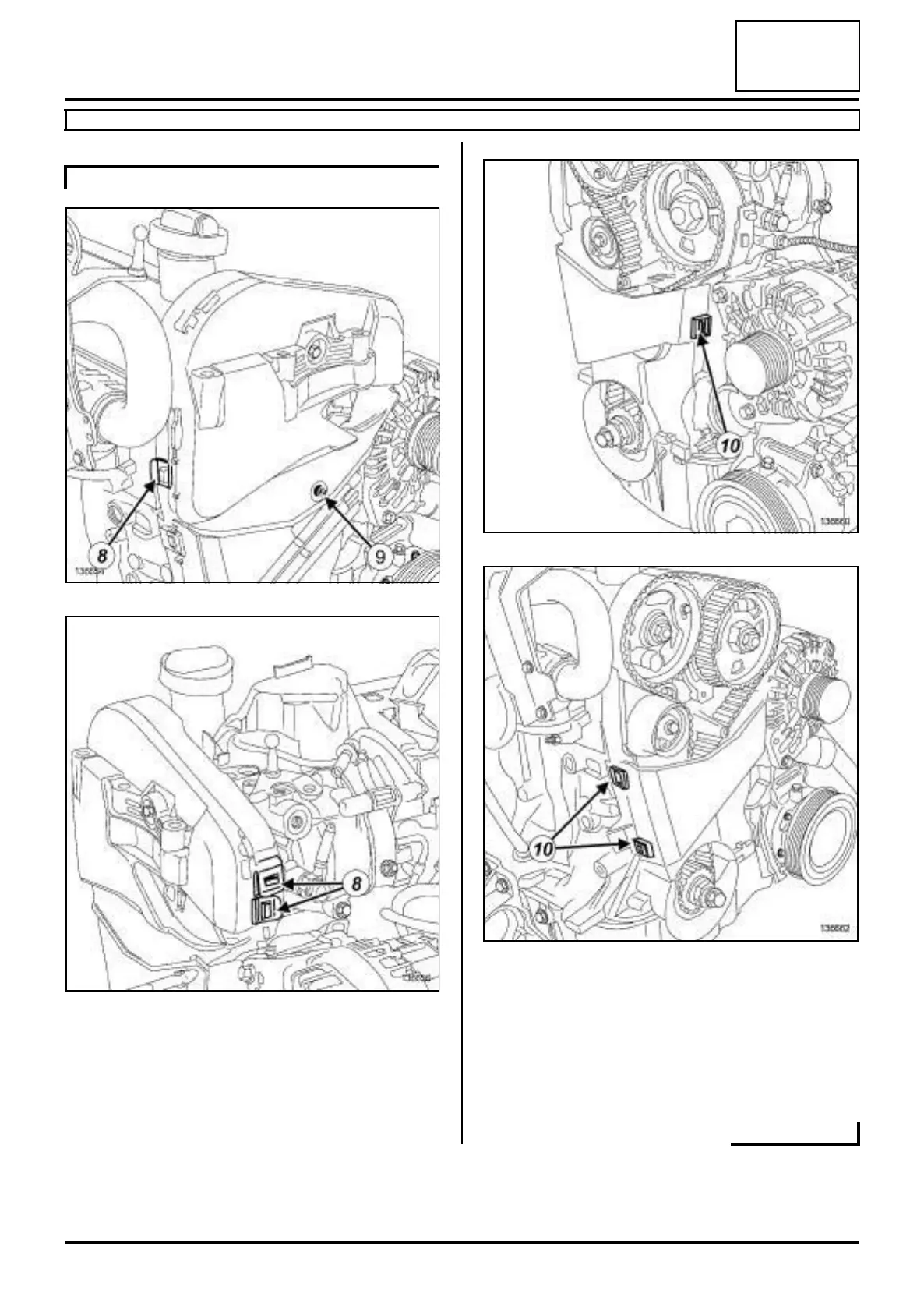

a Unclip the upper timing cover at (8) .
a Remove:
- the bolt (9) from the upper timing cover,
- the upper timing cover,
- the lower timing cover by pressing the clips (10) .
K9K, and 830 or 834
