TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A

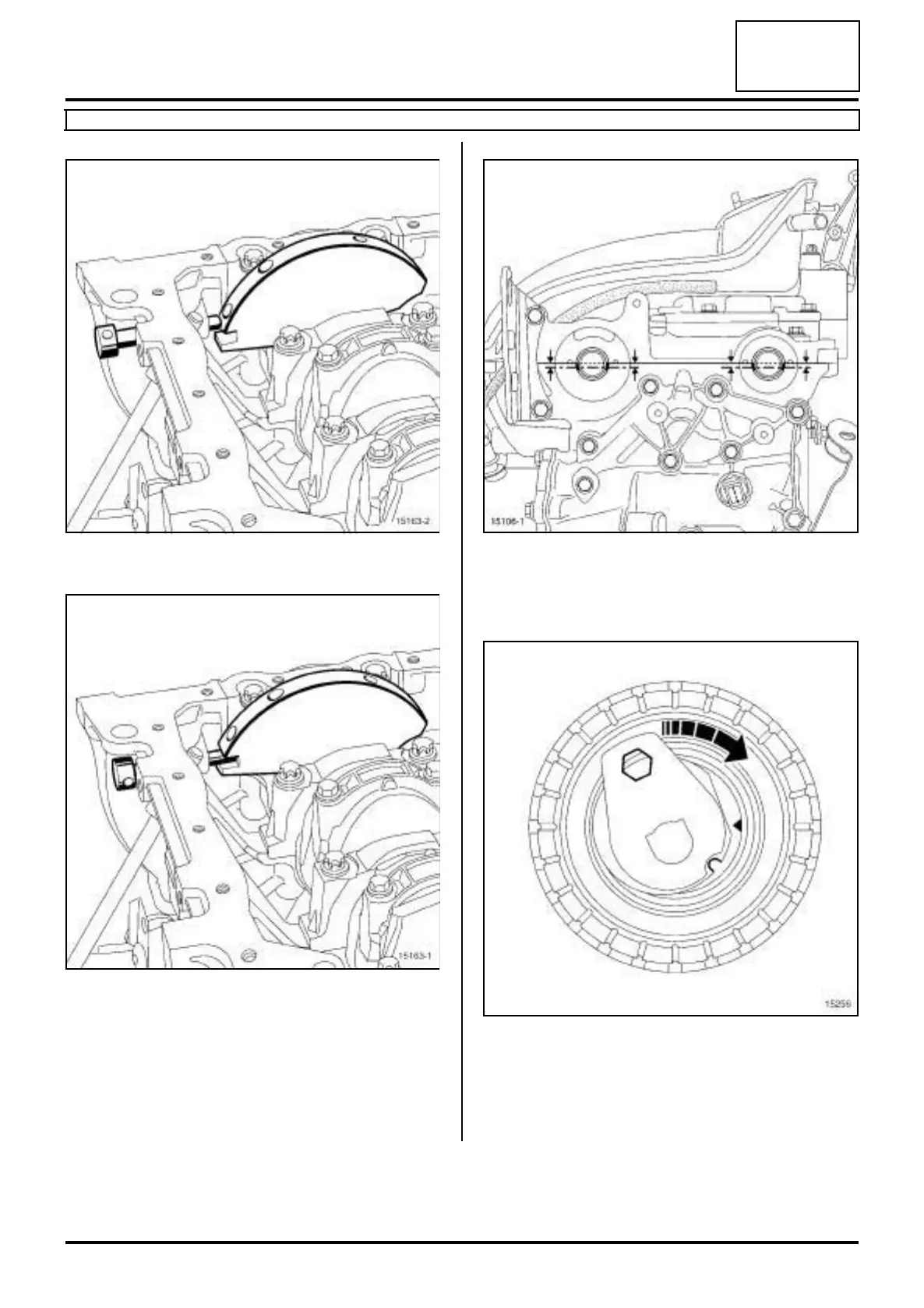

Position of TDC pin before setting point
Position of TDC pin setting point
a Rotate the crankshaft clockwise by two turns (timing
end) and before the end of the two turns insert the
TDC pin (Mot. 1054) then move the crankshaft to its
setting point.
a Fit the tool (Mot. 1496) (without forcing it).
b - Checking the tension
a After the engine has been rotated twice, check that
the tensioning roller marks are correctly aligned; if
they are not aligned return to the timing belt tension
step.
a Torque tighten the tensioning roller nut (32 N.m).
15163-2
15163-1
15106-1
15256
