TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

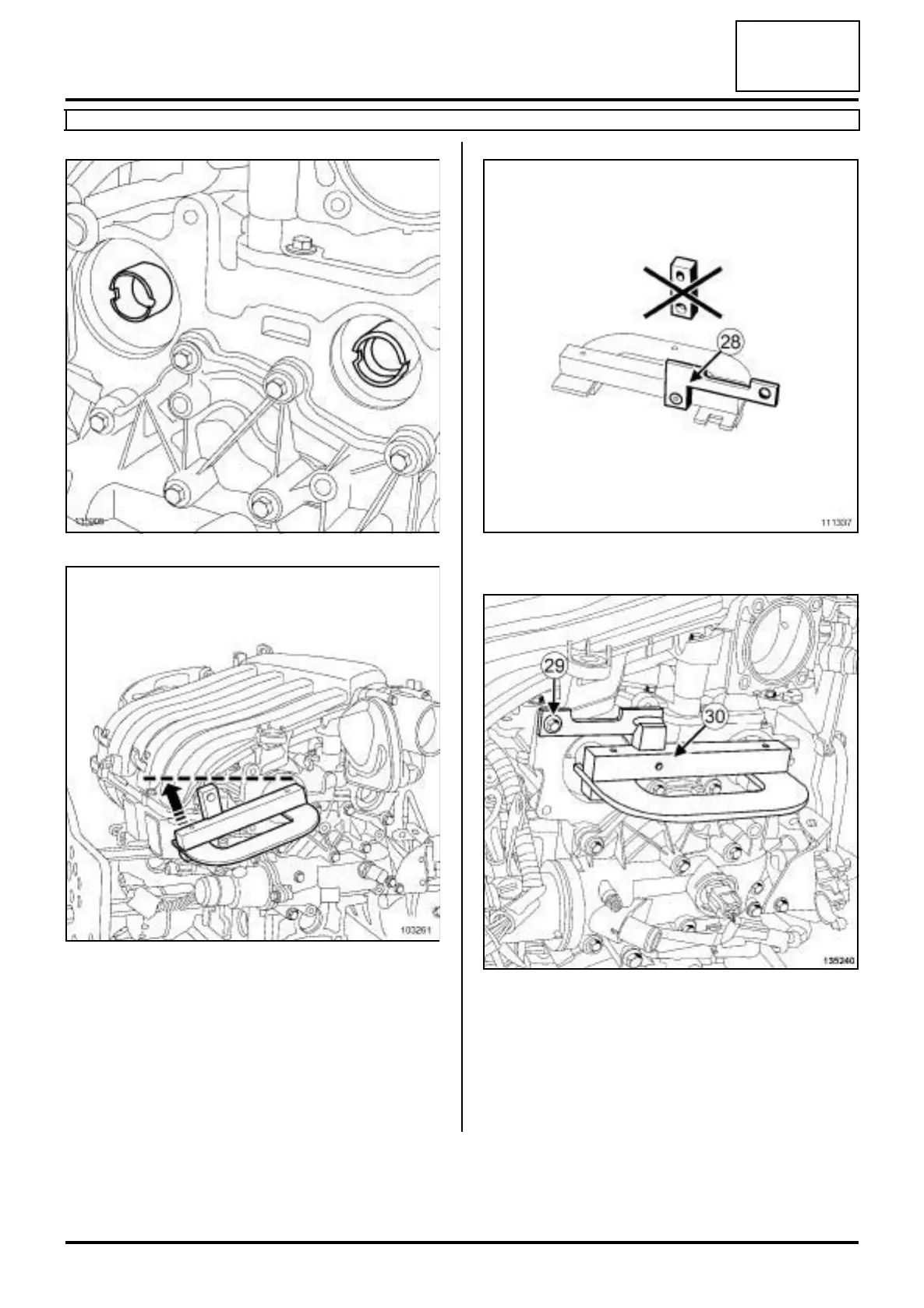

a Position the camshaft grooves horizontally and be-
low the centre line, by turning the camshafts with the
(Mot. 1496) if necessary.
a Fit the (Mot. 1496) with the (Mot. 1750) (28) .
a Fit:
- the (Mot. 1496) (30) fitted with the (Mot. 1750) on
the end of the camshaft,
-a lifting eye bolt (29) to secure the tool (Mot. 1496).
a Refit the crankshaft sprocket.
