10A-20
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at gearbox end : Removal - Refitting
F9Q
10A
REFITTING
I - REFITTING PREPARATION OPERATION
a
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for repair) (04B, Consumables
and Products) to clean and degrease:
-the seal mating face on the crankshaft,
-the seal housing on the cylinder block.
a parts always to be replaced: Crankshaft seal on
gearbox end (10,03,03,05)
II - REFITTING OPERATION FOR PART
CONCERNED

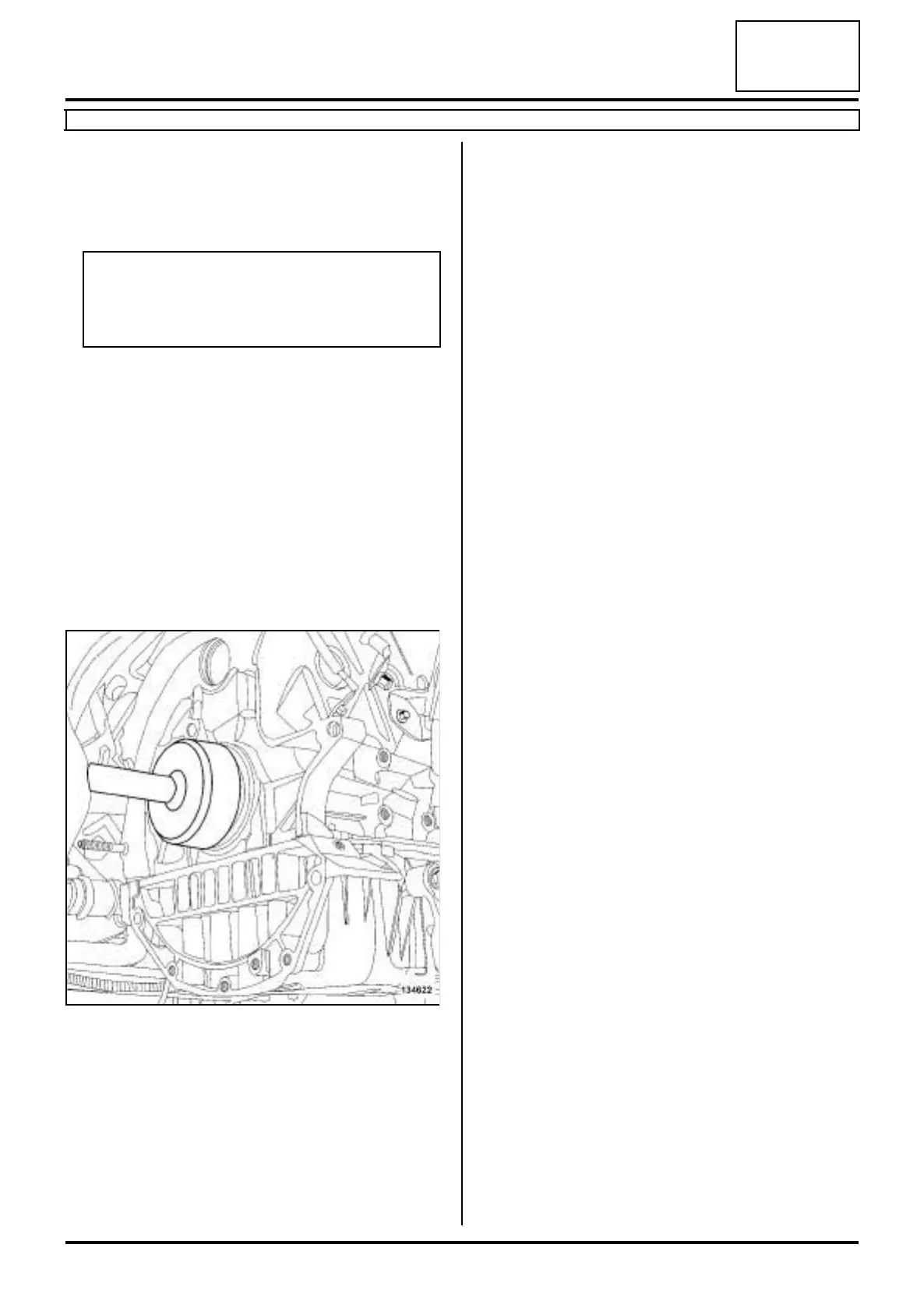

a Refit a new crankshaft seal at the gearbox end,
using the tool (Mot. 991-01).
III - FINAL OPERATION
a Refit:
-the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-157) ,
- the « clutch pressure plate - disc » assembly (see
Mechanism / Disk: Removal - Refitting) (21A,
Manual gearbox),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox),
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the front axle subframe (see Front axle sub-fra-
me: Removal - Refitting) (31A, Front axle compo-
nents),
- the engine tie-bar (see 19D, Engine mounting,
Lower engine tie-bar: Removal - Refitting, page
19D-33) ,
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(41A, Front lower structure),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front left-hand wheel driveshaft (see Front left-
hand wheel driveshaft: Removal - Refitting)
(29A, Driveshaft),
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshaft),
a Fill the manual gearbox (see Manual gearbox oil:
Draining - Refilling) (21A, Manual gearbox).
a Refit:
- the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protec-
tion),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
- the windscreen wiper blade arms (see Winds-
creen wiper arm: Removal - Refitting) (85A, Wi-
ping - Washing),
- the starter (see 16A, Starting - Charging, Starter:
Removal - Refitting, page 16A-16) ,
-the hydraulic clutch control pipe (see Clutch cir-
cuit: Removal - Refitting) (37A, Mechanical com-
ponent controls),
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
134622
