11A-88
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K9K
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray.
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) .
a Remove the camshaft position sensor (see 13B,
Diesel injection, Camshaft position sensor: Re-
moval - Refitting, page 13B-19) .

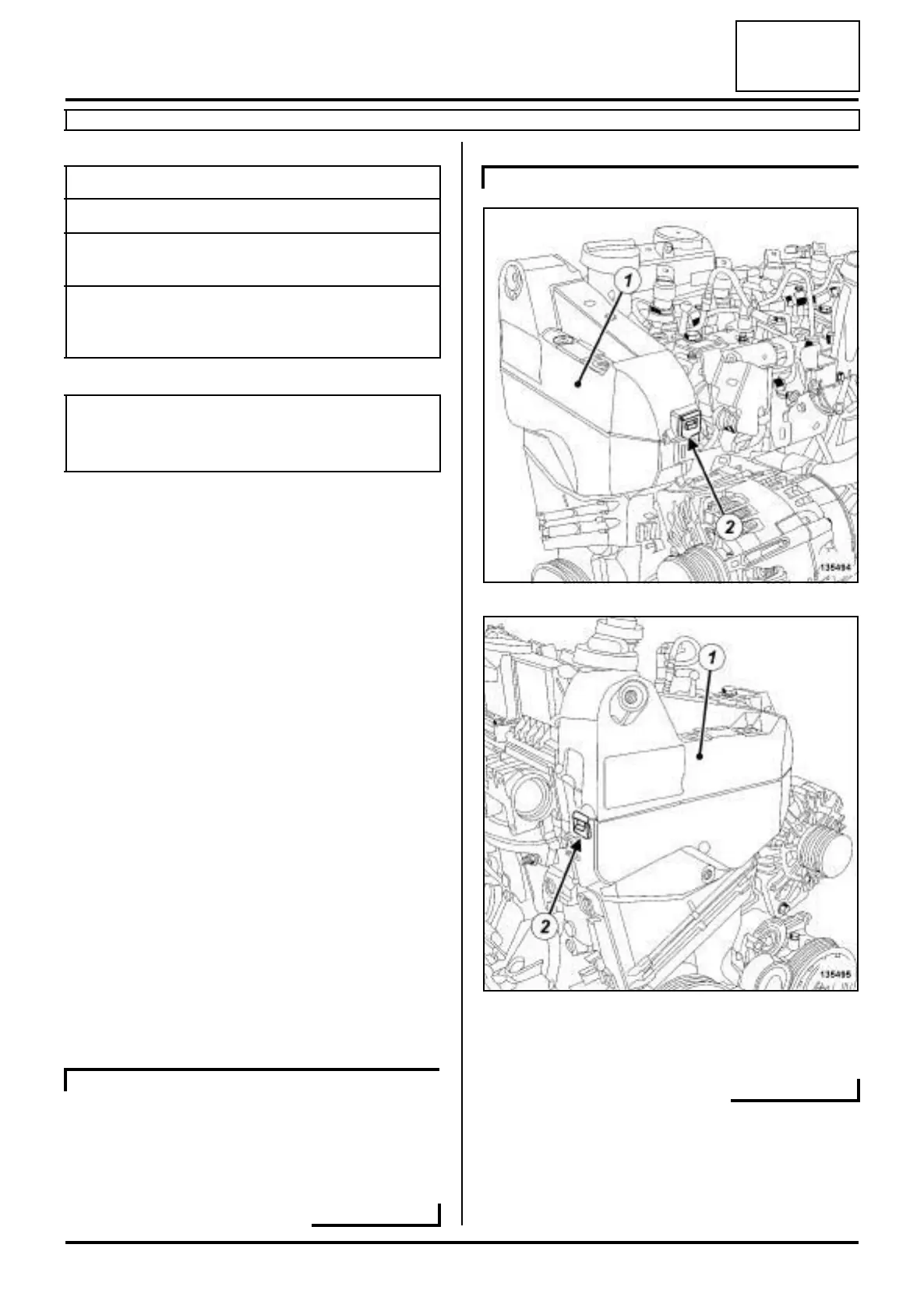

a Remove the upper timing cover (1) by pressing the
clips (2) .
Tightening torquesm
rocker cover bolts 11 N.m
lower engine tie-bar bolt
on the subframe
180 N.m
lower engine tie-bar bolt
on the lower engine tie-
bar support
180 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
K9K, and 830
K9K, and 832
135494
135495
