Renault F4R - Page 272

11A-98
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K4M
11A

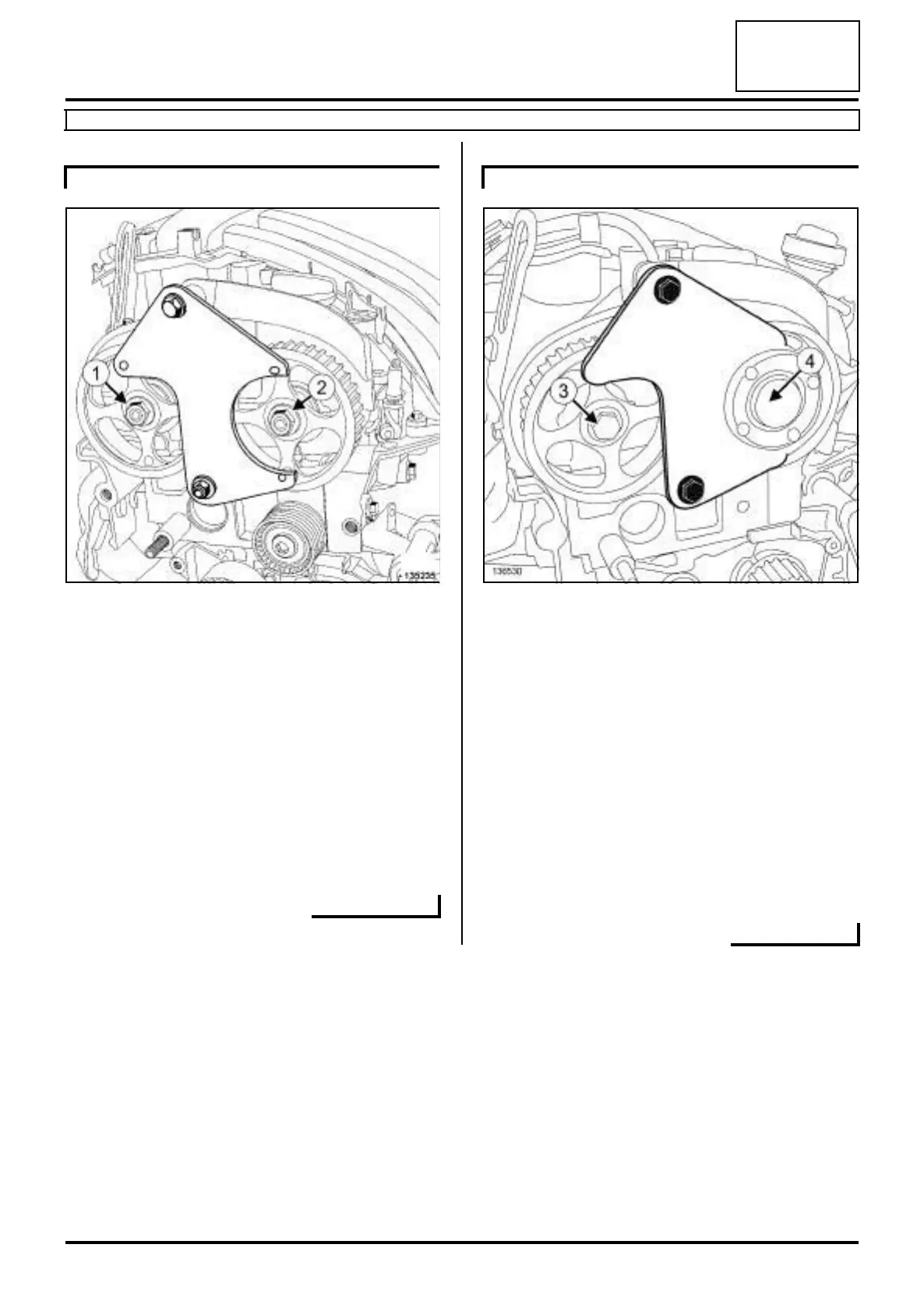

a Undo:
-the exhaust camshaft sprocket nut (1) ,
-the inlet camshaft sprocket nut (2) .
a Remove the tool (Mot. 1490-01) from the camshaft
sprockets.
a Remove:
-the exhaust camshaft sprocket nut,
-the exhaust camshaft sprocket,
-the inlet camshaft sprocket nut,
-the inlet camshaft sprocket.
a Remove the camshaft dephaser blanking cover (4) .
a Undo:
- the exhaust camshaft sprocket nut (3) ,
- the camshaft dephaser bolt.
a Remove the tool (Mot. 1490-01) from the camshaft
sprockets.
a Remove:
- the exhaust camshaft sprocket nut,
- the exhaust camshaft sprocket,
- the camshaft dephaser bolt,
- the camshaft dephaser.
K4M, and 848
135235
K4M, and 858 or 866
136530
