11A-124
TOP AND FRONT OF ENGINE
Camshaft: Removal - Refitting
K9K
11A
a Refit the camshaft bearings.

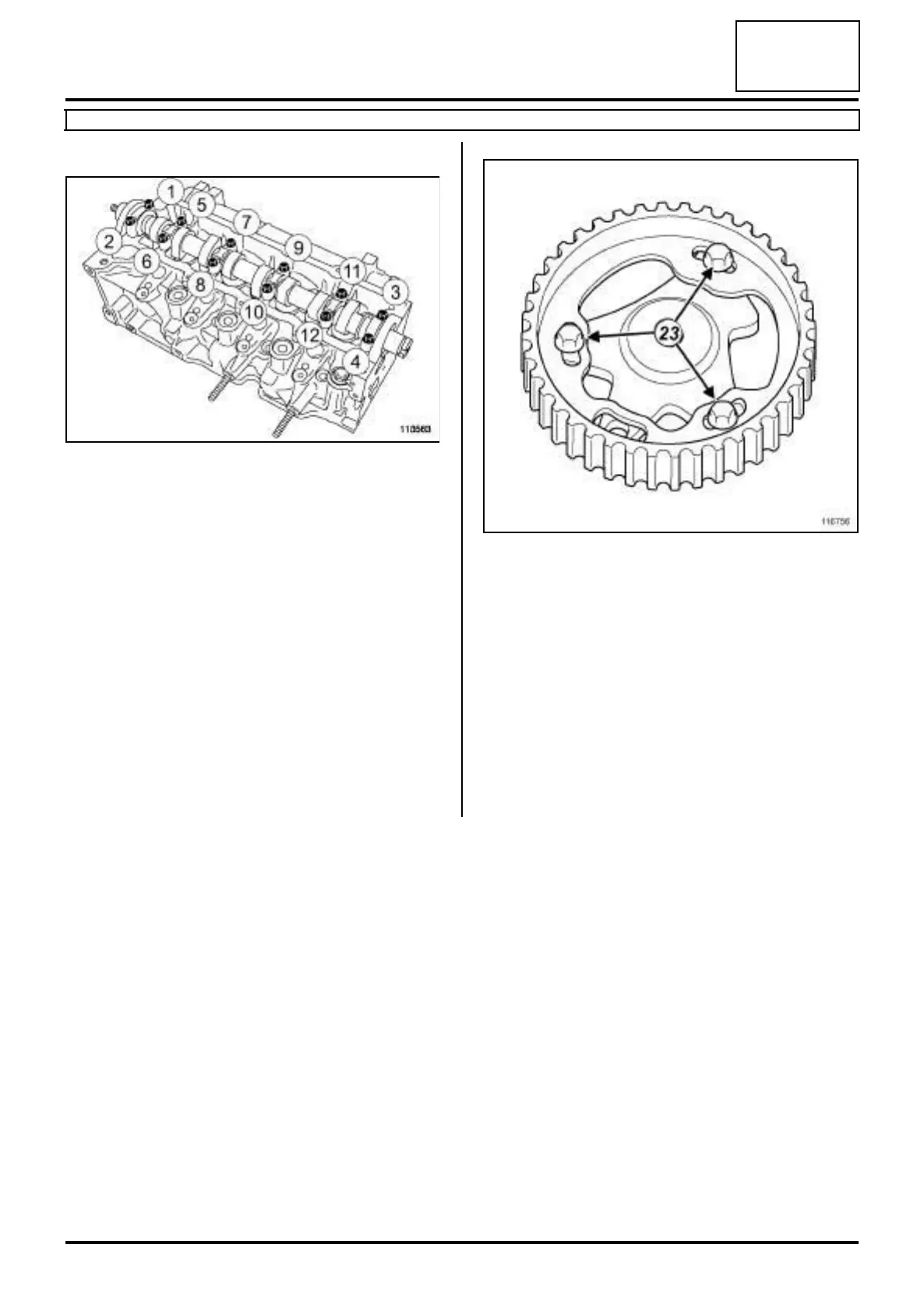

a Refit the camshaft bearing bolts (1) , (3) , (4) and (2)
in order.
a Tighten the camshaft bearing bolts (1) , (3) , (4) and
(2) in order.
a Refit the camshaft bearing bolts in order.
a Tighten to torque and in order the bolts of the
camshaft bearings (10 N.m).
III - FINAL OPERATION
a Refit the camshaft seal (see 11A, Top and front of
engine, Camshaft seal at timing end: Removal -
Refitting, page 11A-186) .
a Fit the camshaft pulley.
a Refit a new camshaft pulley nut.
a Undo the camshaft pulley hub bolts (23) .
a Fit the (Mot. 1606) on the cylinder head to lock the
camshaft pulley wheel.
a Tighten to torque:
- the camshaft pulley hub bolts (14 N.m),
- and to angle the camshaft pulley nut (30 N.m +
86˚ ±±
±±
6˚).
a Remove the tool (Mot. 1606).
a Refit the vacuum pump (see Vacuum pump: Re-
moval - Refitting) (37A, Mechanical component
controls).
113563
116756
