TOP AND FRONT OF ENGINE
Camshaft dephaser solenoid valve: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

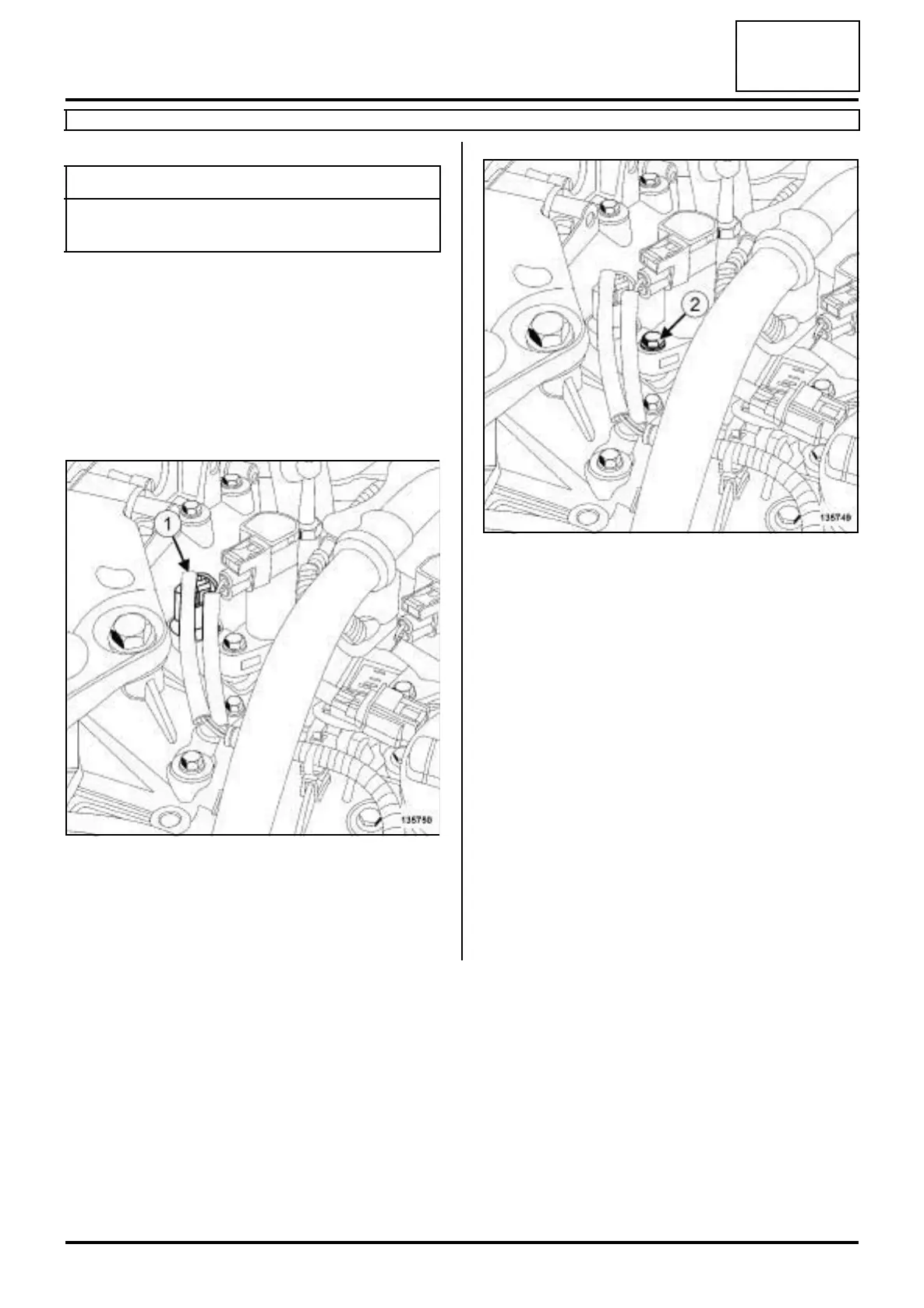

a Disconnect the connector (1) from the camshaft de-
phaser solenoid valve.
a Remove the bolt (2) of the camshaft dephaser sole-
noid valve.
a Move aside the coil of cylinder no. 4.
a Remove the camshaft dephaser solenoid valve.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the camshaft dephaser solenoid valve.
a Torque tighten the camshaft dephaser solenoid
valve bolt (10 N.m).
a Connect the camshaft dephaser solenoid valve con-
nector.
II - FINAL OPERATION
a Refit the engine cover.
Tightening torquesm
camshaft dephaser
solenoid valve bolt
10 N.m
