12A-1
FUEL MIXTURE
Air resonator: Removal - Refitting
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the left-hand headlight (see Front headlight: Re-
moval - Refitting) (80B, Headlights),
-the front left-hand support of the front bumper (see
Front bumper support: Removal - Refitting)
(42A, Front upper structure).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

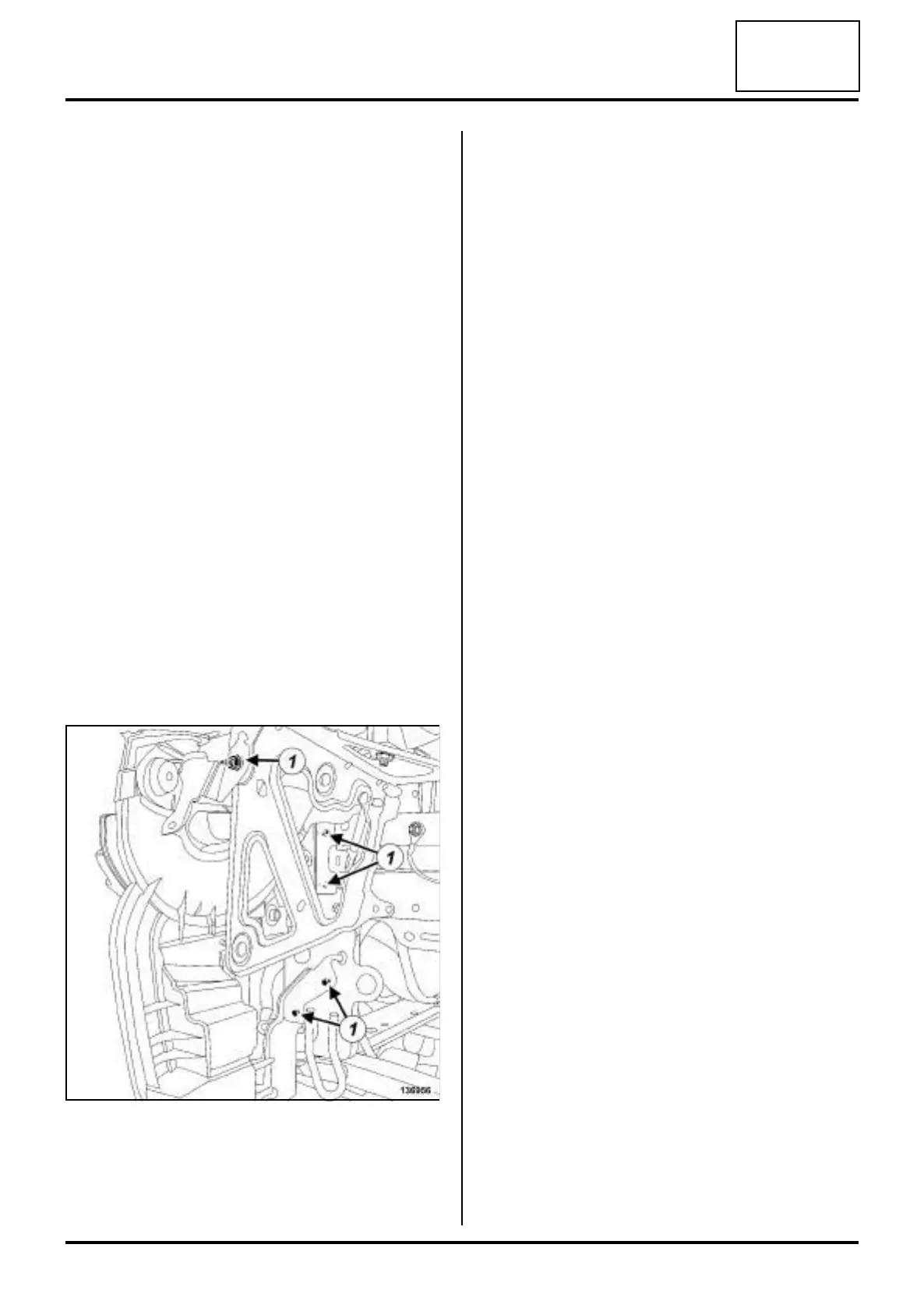

-the air resonator bolts (1) ,
-the air resonator.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the air resonator.
II - FINAL OPERATION
a Refit:
-the front left-hand support of the front bumper (see
Front bumper support: Removal - Refitting)
(42A, Front upper structure),
- the left-hand headlight (see Front headlight: Re-
moval - Refitting) (80B, Headlights),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
