Exhaust manifold: Removal - Refitting
F4R
12A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

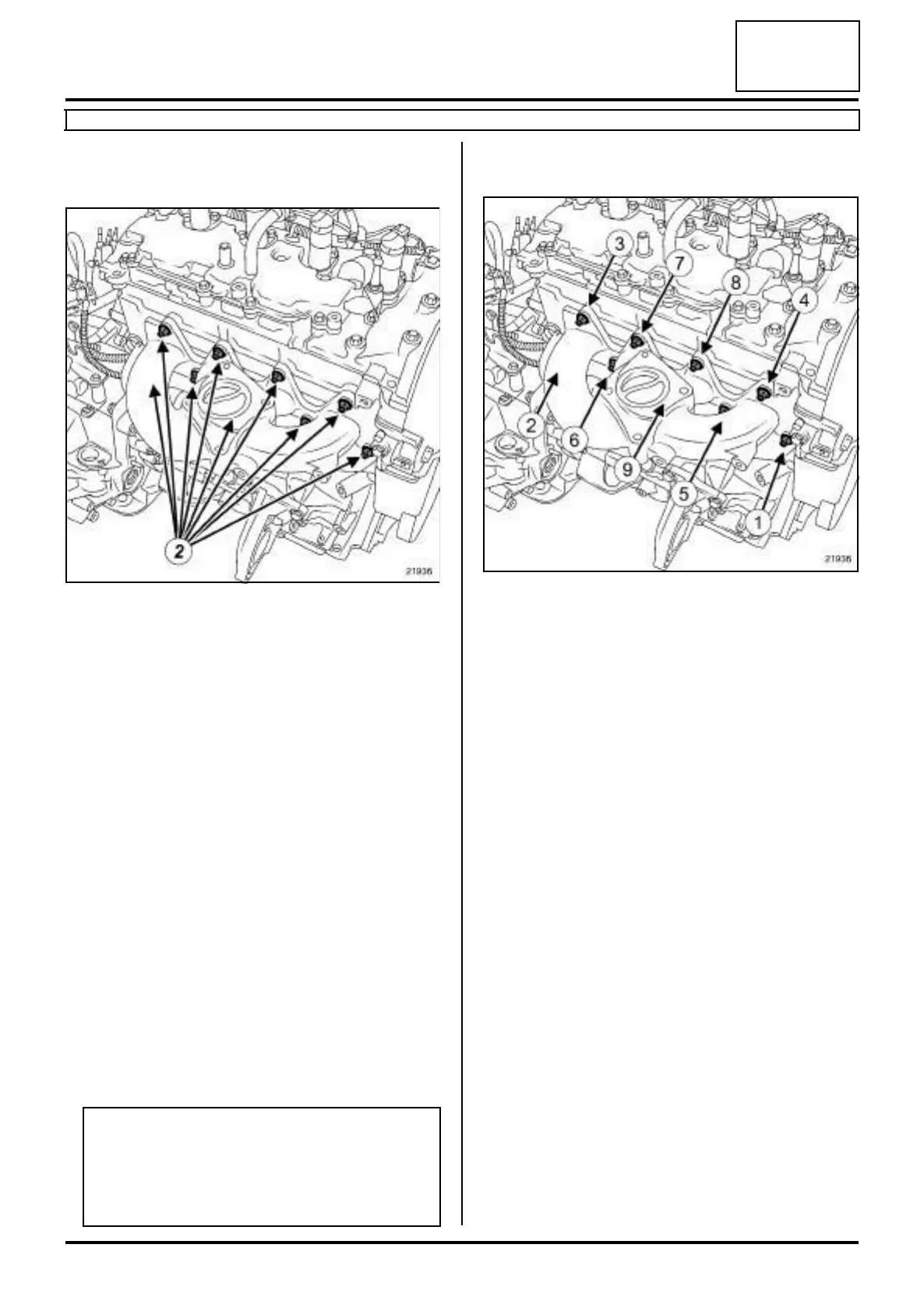

a Remove:
-the nuts (2) from the exhaust manifold,
-the exhaust manifold,
-the exhaust manifold gasket.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Exhaust manifold
seal (10,07,02,07).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the exhaust manifold joint face if it is to be re-used,
-the cylinder head joint face.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new exhaust manifold gasket,
- the exhaust manifold.
a Screw on the exhaust manifold nuts without tighte-
ning them.
a Tighten to torque and in order the exhaust manifold
nuts (25 N.m).
III - FINAL OPERATION
a Refit:
- the heat shield to the starter,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
,
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-a new right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts).
a Fill the manual gearbox (see Manual gearbox oil:
Draining - Refilling) (21A, Manual gearbox).
21936
Note:
If a stud loosens during this operation, coat it
with HIGH STRENGTH THREAD LOCK (see
Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products).
