Renault F4R - Page 450

12B-14
TURBOCHARGING
Turbocharger: Removal - Refitting
F4R
12B
a

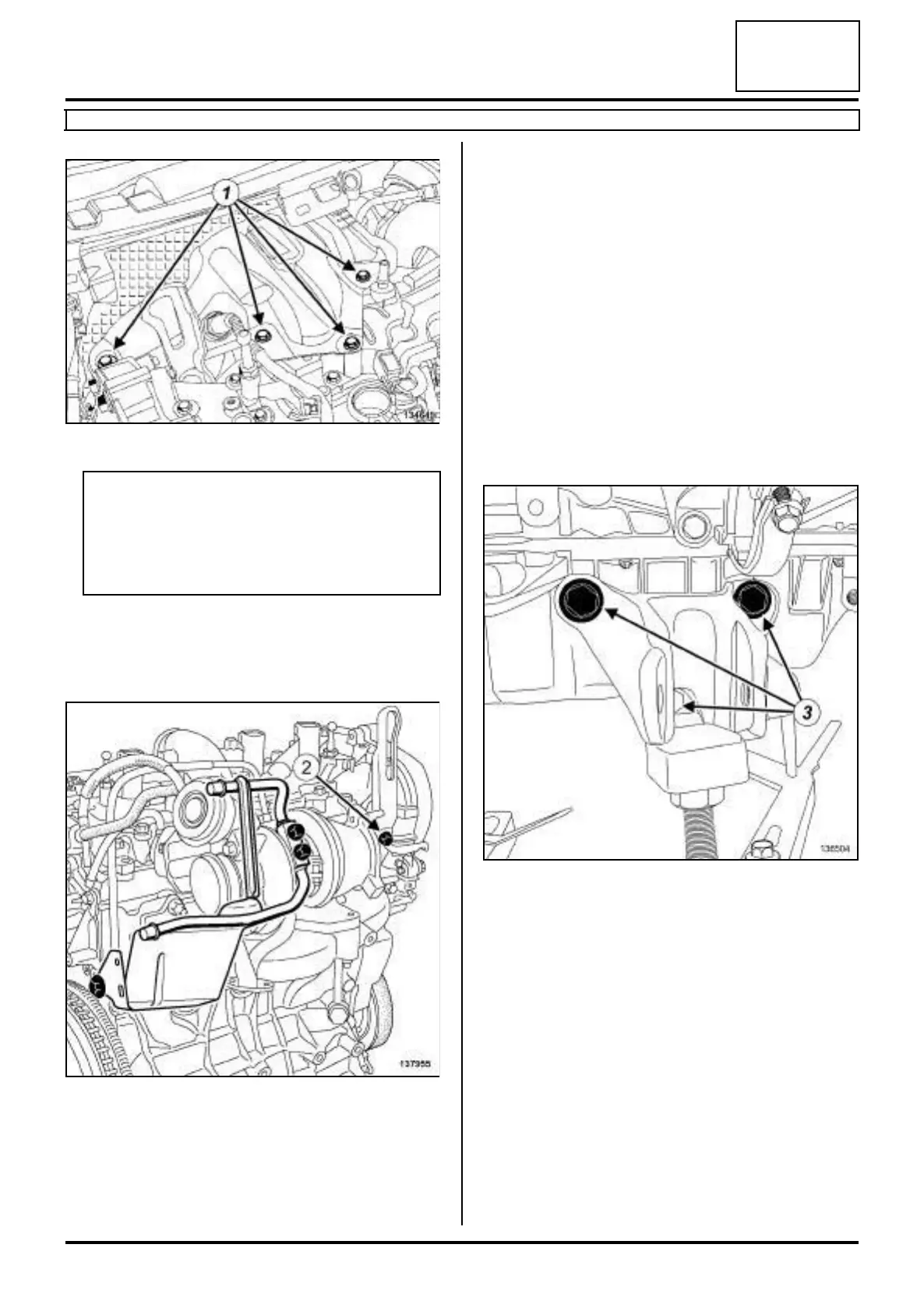

Remove:
-the bolts (1) from the turbocharger heat shield,
-the turbocharger heat shield.
a Remove:
-the bolt (2) from the lifting eye,
-the lifting eye,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
a Remove:
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
- the right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Remove:
- the lower engine tie-bar mounting bolts (3) ,
- the lower engine tie-bar support.
134649
WARNING
To prevent the surrounding components from
overheating, do not damage (tear, pierce, bend,
etc.) a heat shield.
Any damaged heat shields must be replaced.
137955
136504
