12B-50
TURBOCHARGING
Turbocharger outlet exhaust gas duct: Removal - Refitting
F9Q
12B

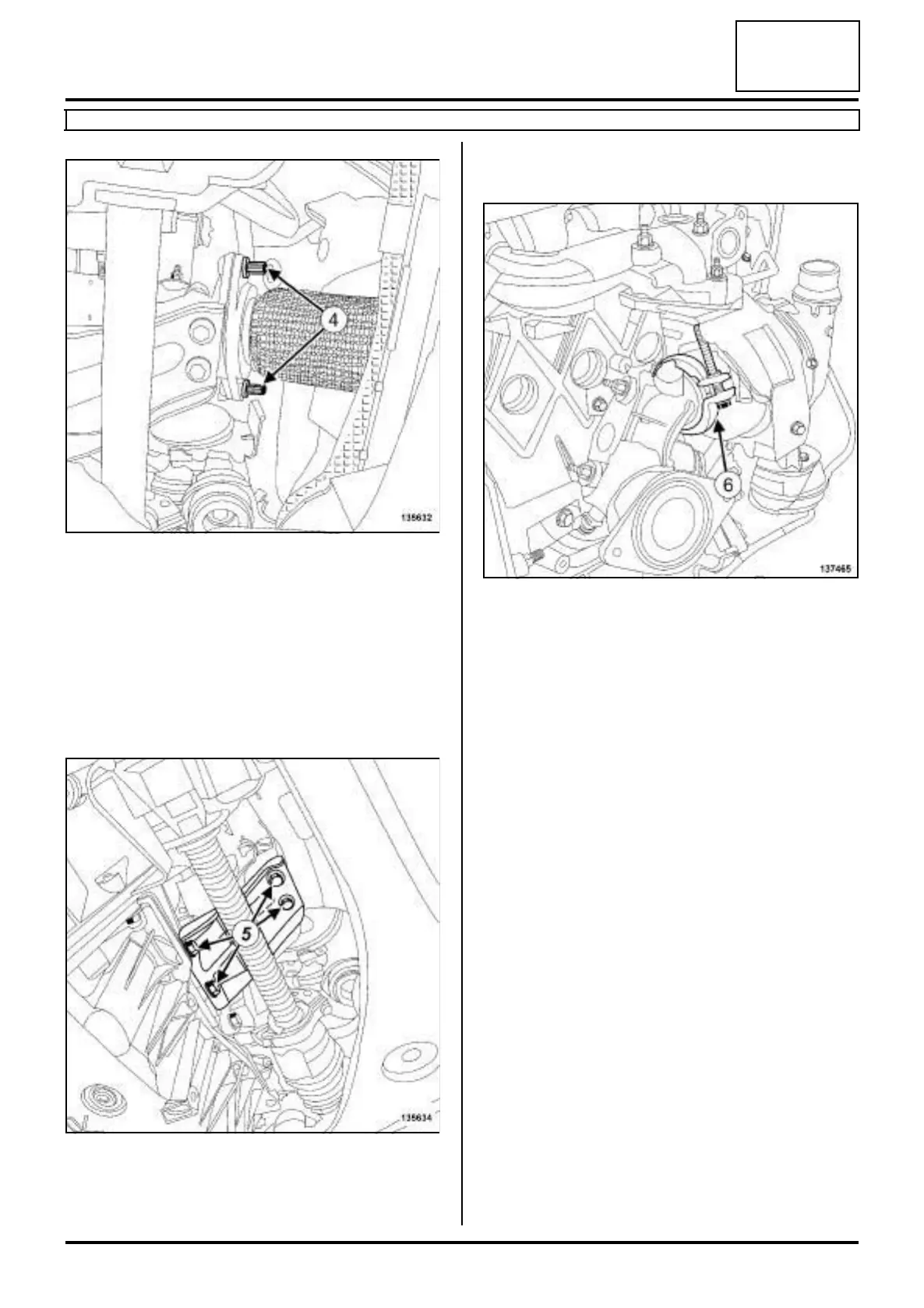

a Remove:
-the nuts (4) from the exhaust flange,
-the exhaust flange seal.
a Move the exhaust pipe to one side.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the bolts (5) from the bracket of the turbocharger
outlet exhaust gas duct,
- the bracket from the turbocharger outlet exhaust
gas duct.
a Remove:
- the clip (6) from the turbocharger outlet exhaust
gas duct,
- the turbocharger outlet exhaust gas duct.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace:
- the clip of the turbocharger outlet exhaust gas duct,
- the exhaust flange seal.
II - REFITTING OPERATION FOR PART
CONCERNED
a Fit a new clip on the turbocharger outlet exhaust gas
duct.
a Fit the turbocharger outlet exhaust gas duct on the
turbocharger.
a Refit the bracket for the turbocharger outlet exhaust
gas duct.
a Fit without tightening the bolts on the bracket of the
turbocharger outlet exhaust gas duct.
135632
135634
137465
