13B-23
DIESEL INJECTION
Camshaft position sensor: Removal - Refitting
F9Q
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION

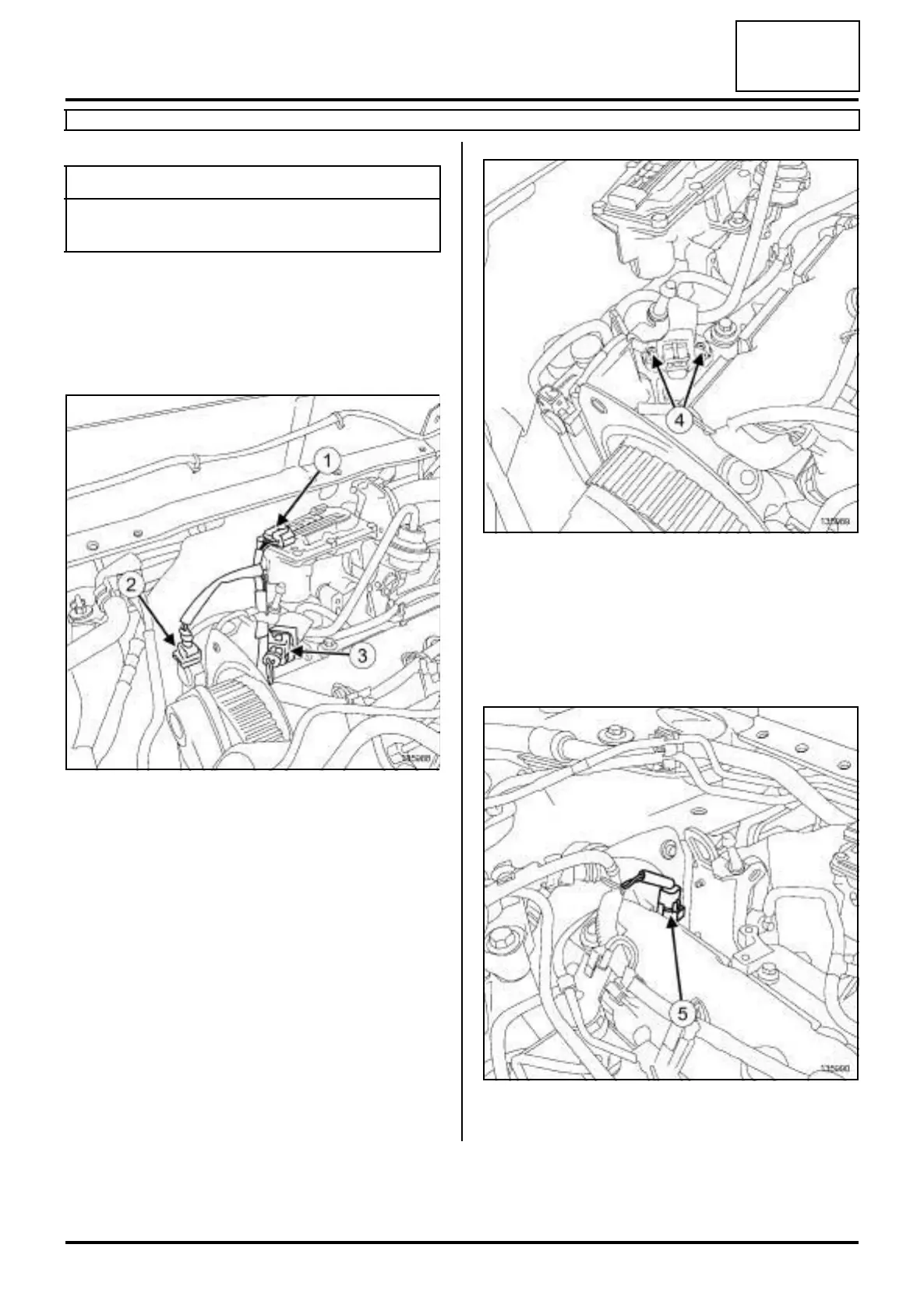

a Remove the front engine cover.
a Disconnect:
-the connector (1) from the EGR solenoid valve,
-the connector (2) from the turbocharger control so-
lenoid valve,
-the connector (3) from the EGR bypass control so-
lenoid valve.
a Remove the bolts (4) from the EGR bypass control
solenoid valve.
a Move aside the EGR bypass control solenoid valve.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (5) from the camshaft po-
sition sensor.
Tightening torquesm
EGR bypass control
solenoid valve bolts
10 N.m
135988
135989
135990
