10A-56
ENGINE AND CYLINDER BLOCK ASSEMBLY
Exchanger: Removal - Refitting
K9K
10A
a Remove the "intermediate pipe - compressor" con-
necting pipe seal.
a Fit a suitable blanking plug to:
-the opening of the "intermediate pipe - compres-
sor" connecting pipe,
-the compressor opening.
a Separate the "intermediate pipe - compressor" con-
necting pipe from the air conditioning compressor
II - OPERATION FOR REMOVAL OF PART
CONCERNED

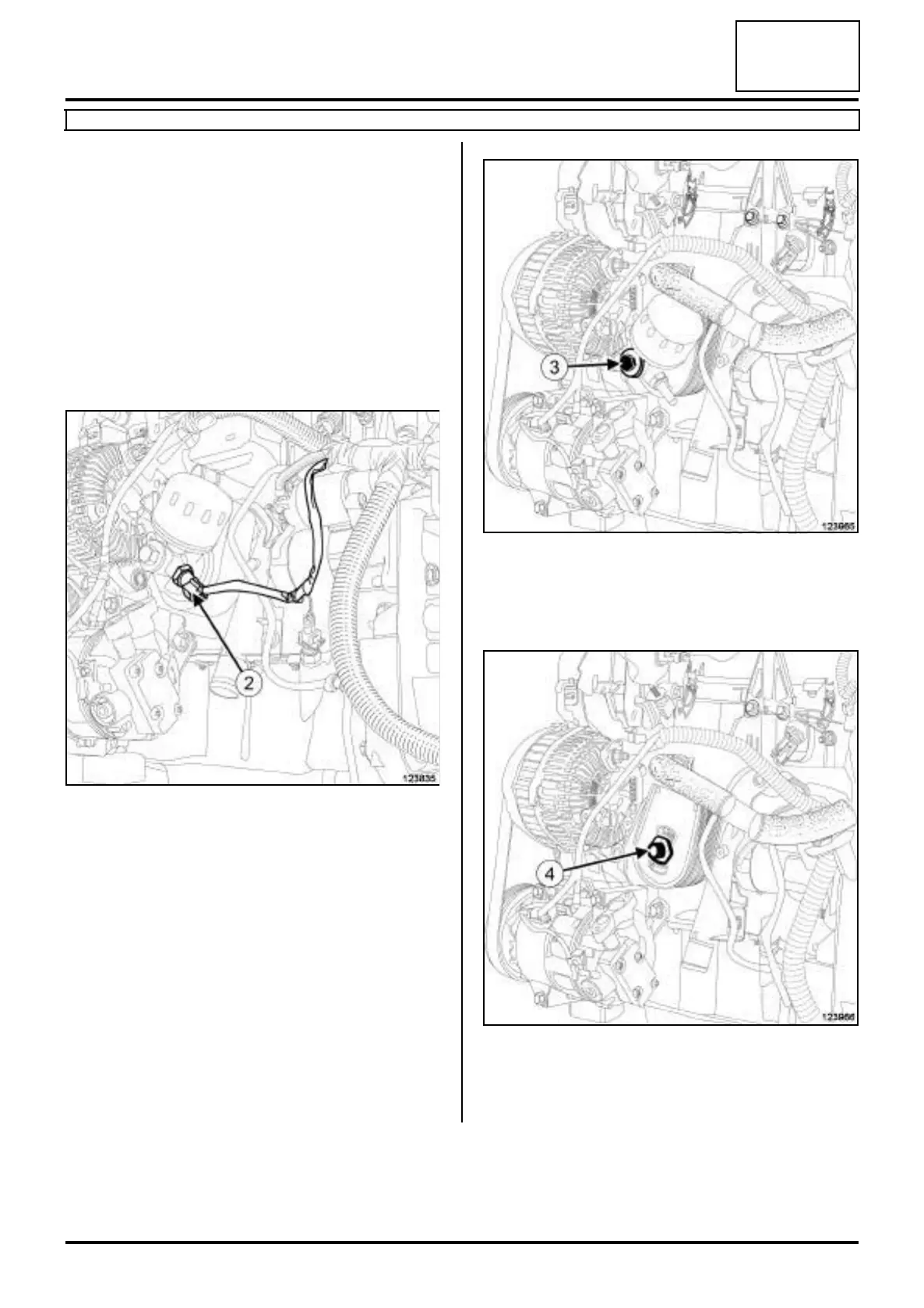

a Disconnect the oil pressure sensor connector (2) .
a Remove:
- the bolt (3) from the oil filter support,
- the oil filter support.
a Remove:
- the bolt (4) from the oil-water heat exchanger,
- the oil-water heat exchanger.
