14A-35
ANTIPOLLUTION
Exhaust gas recirculation rigid pipe: Removal - Refitting
F9Q
14A
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

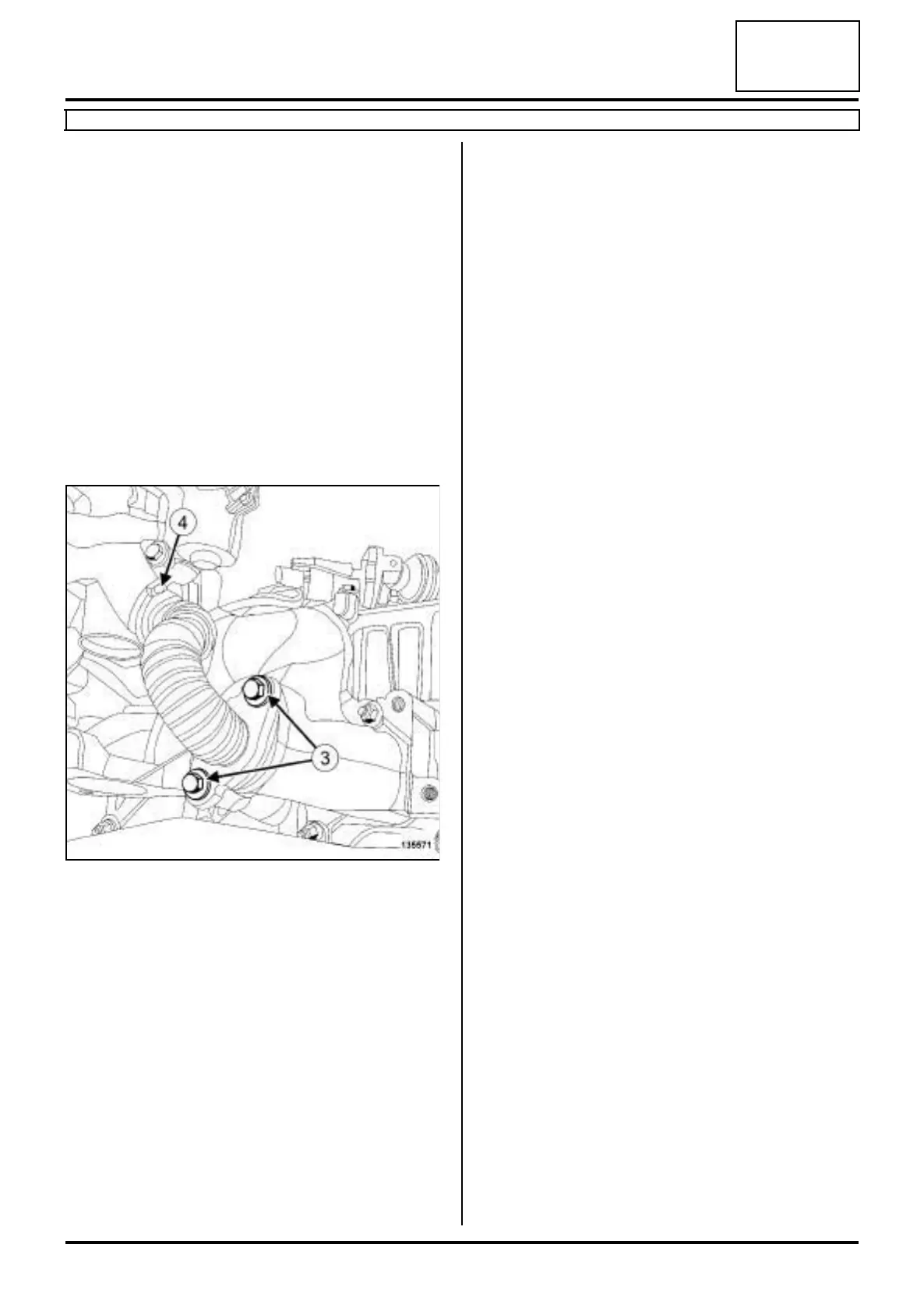

-the bolts (3) from the exhaust gas recirculation
lower rigid pipe,
-the clip (4) of the exhaust gas recirculation lower ri-
gid pipe,
-the exhaust gas recirculation lower rigid pipe,
-the seal of the exhaust gas recirculation lower rigid
pipe.
REFITTING THE EXHAUST GAS
RECIRCULATION LOWER RIGID PIPE
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Exhaust gas recir-
culation pipe clip (11,07,01,14).
parts always to be replaced: Exhaust gas recir-
culation pipe seal (11,07,01,15).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease the joint
faces:
- of the exhaust gas recirculation solenoid valve,
- of the exhaust manifold.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new seal of the exhaust gas recirculation lower ri-
gid pipe,
-a new clip of the exhaust gas recirculation lower ri-
gid pipe,
- the exhaust gas recirculation lower rigid pipe.
a Attach the clip of the exhaust gas recirculation lower
rigid pipe using the tool (Mot. 1567).
a Torque tighten the EGR lower rigid pipe bolts (30
N.m).
III - FINAL OPERATION
a Refit:
- the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
- the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the battery (see Battery : Removal - Refitting)
(80A, Battery),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the engine undertray,
135571
