Renault F4R - Page 762

17B-18
PETROL INJECTION
Crankshaft position sensor: Removal - Refitting
F4R
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

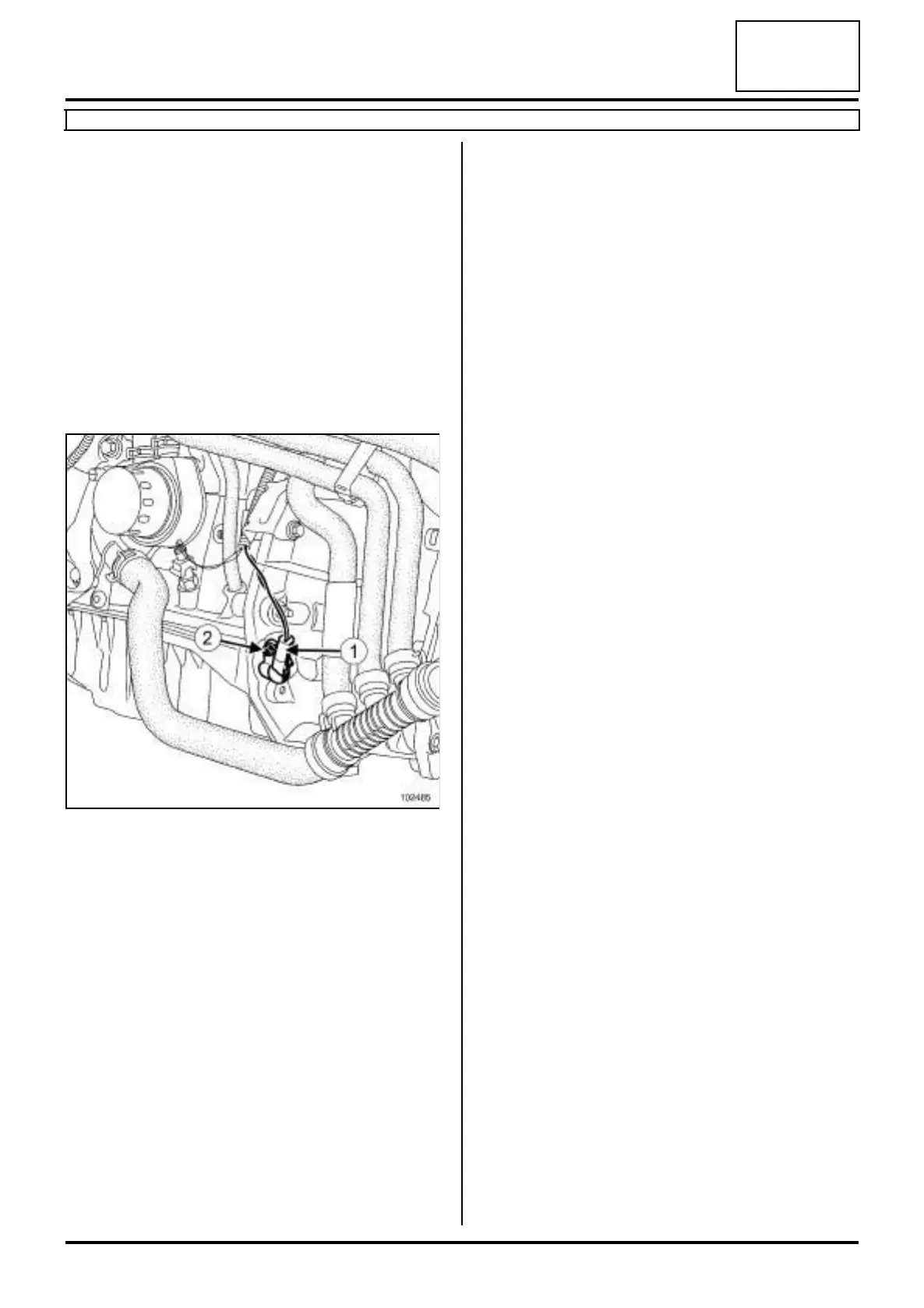

a Disconnect the crankshaft position sensor connector
(1) .
a Remove:
-the crankshaft position sensor bolt (2) ,
-the crankshaft position sensor.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
a Refit the crankshaft position sensor.
a Tighten the crankshaft position sensor bolt.
a Connect the crankshaft position sensor connector.
FINAL OPERATION
a Refit the engine undertray.
102485
