17B-21
PETROL INJECTION
Injector rail - Injectors: Removal - Refitting
F4R
17B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the front engine cover.

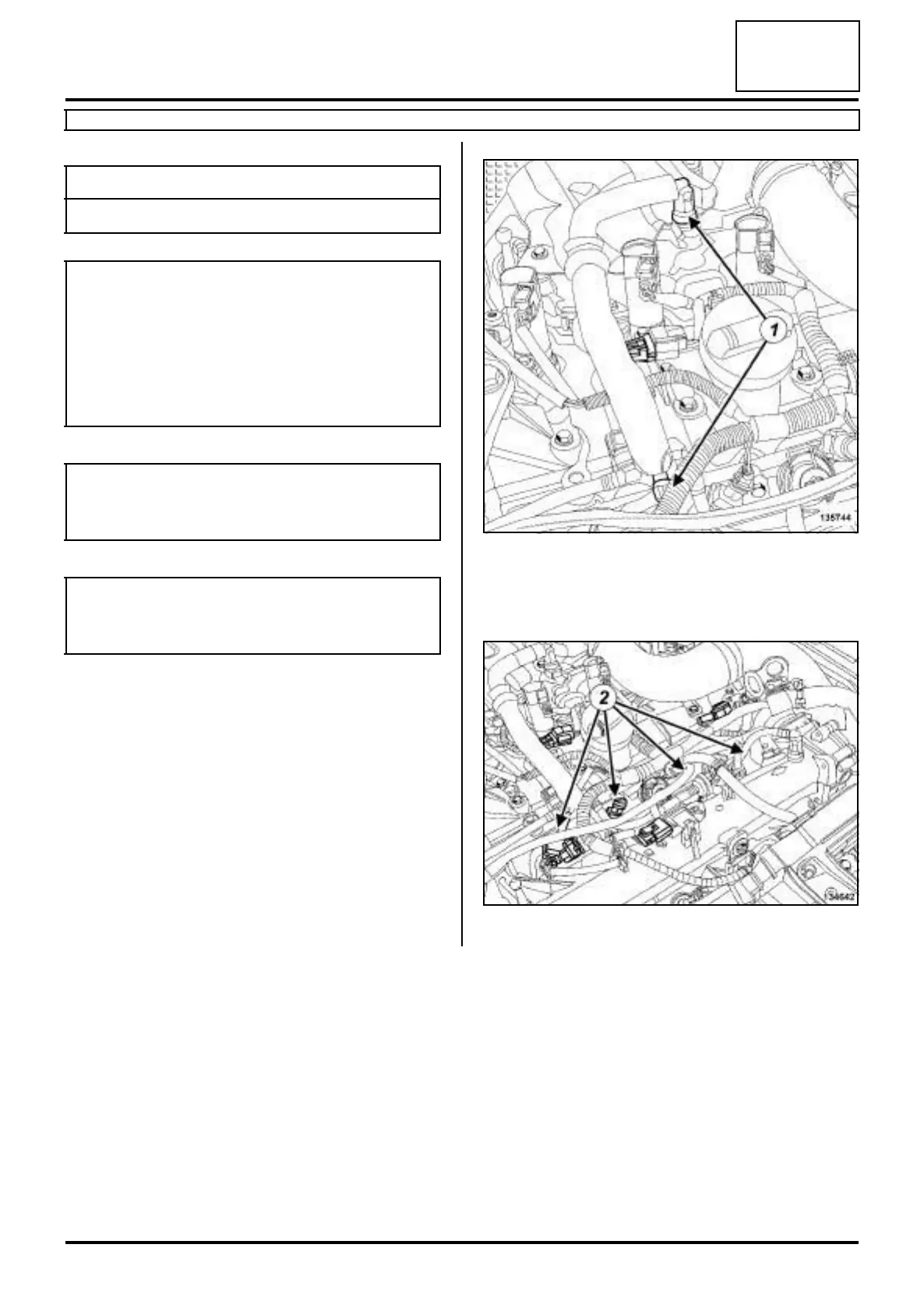

a Disconnect the connectors (1) from the oil vapour re-
breathing pipe.
a Remove the oil vapour rebreathing pipe.
a Disconnect the injector connectors (2) .
Tightening torquesm
injector rail bolts 10 N.m
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing red hot objects
close to the working area,
- be careful of fuel splashes when disconnecting the
union.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
135744
134642
