10A-72
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil level sensor: Removal - Refitting
F4R
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

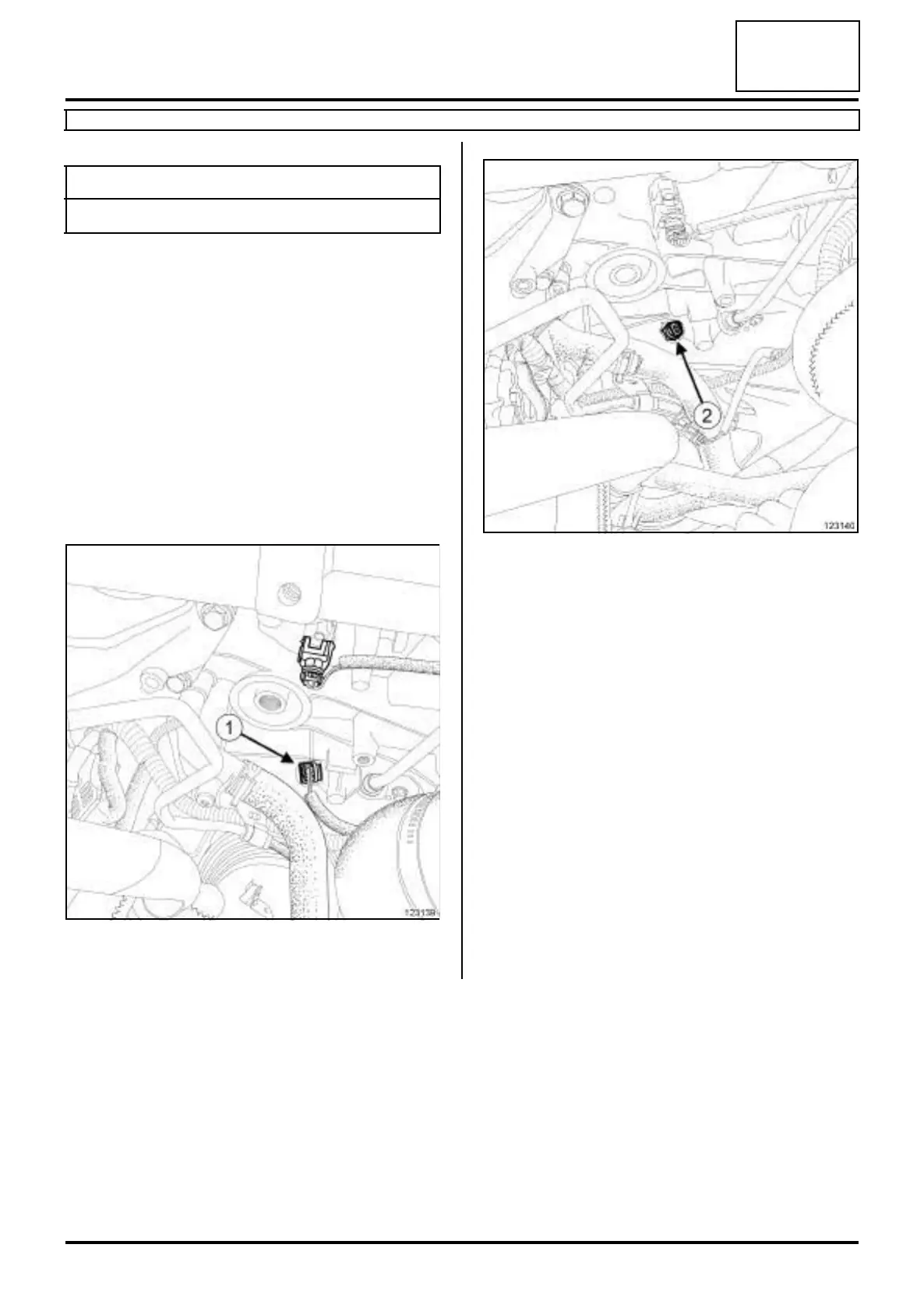

a Disconnect the connector (1) from the oil level sen-
sor from underneath.
a Remove the oil level sensor (2) from underneath.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil level sensor.
a Tighten to torque the oil level sensor (25 Nm).
a Connect the connector to the oil level sensor.
II - FINAL OPERATION
a Refit the engine undertray.
Tightening torquesm
oil level sensor 25 Nm
123139
123140
