19A-32
COOLING
Cooling radiator: Removal - Refitting
K4M
19A

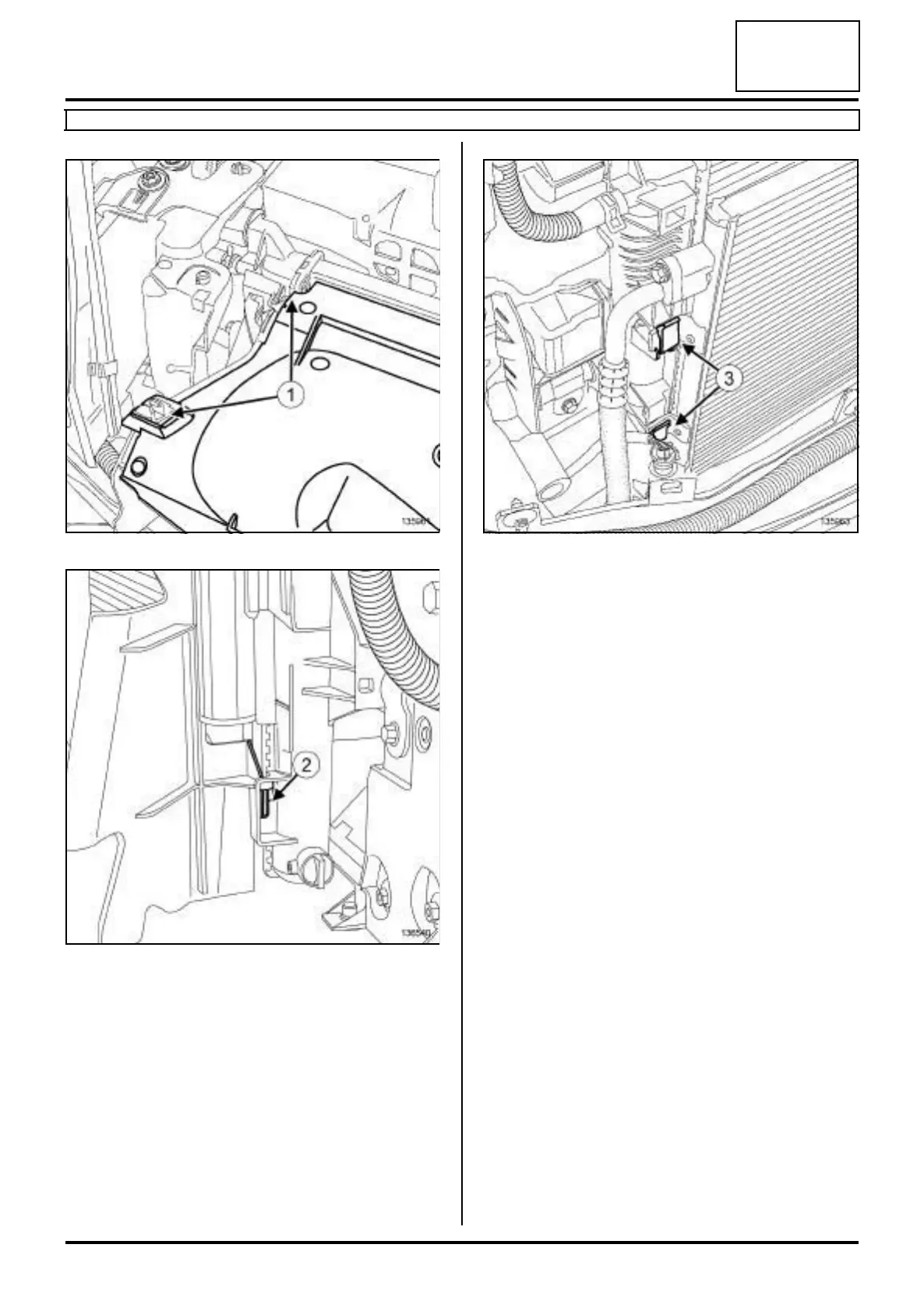

a Unclip the air deflectors at (1) and (2) .
a Remove:
-the air deflectors,
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn).
a Unclip the condenser from each side at (3) .
a Attach the condenser to the front impact cross mem-
ber using a safety strap(s).
135961
136540
135963
