Cooling radiator: Removal - Refitting
F4R
19A
a Remove:

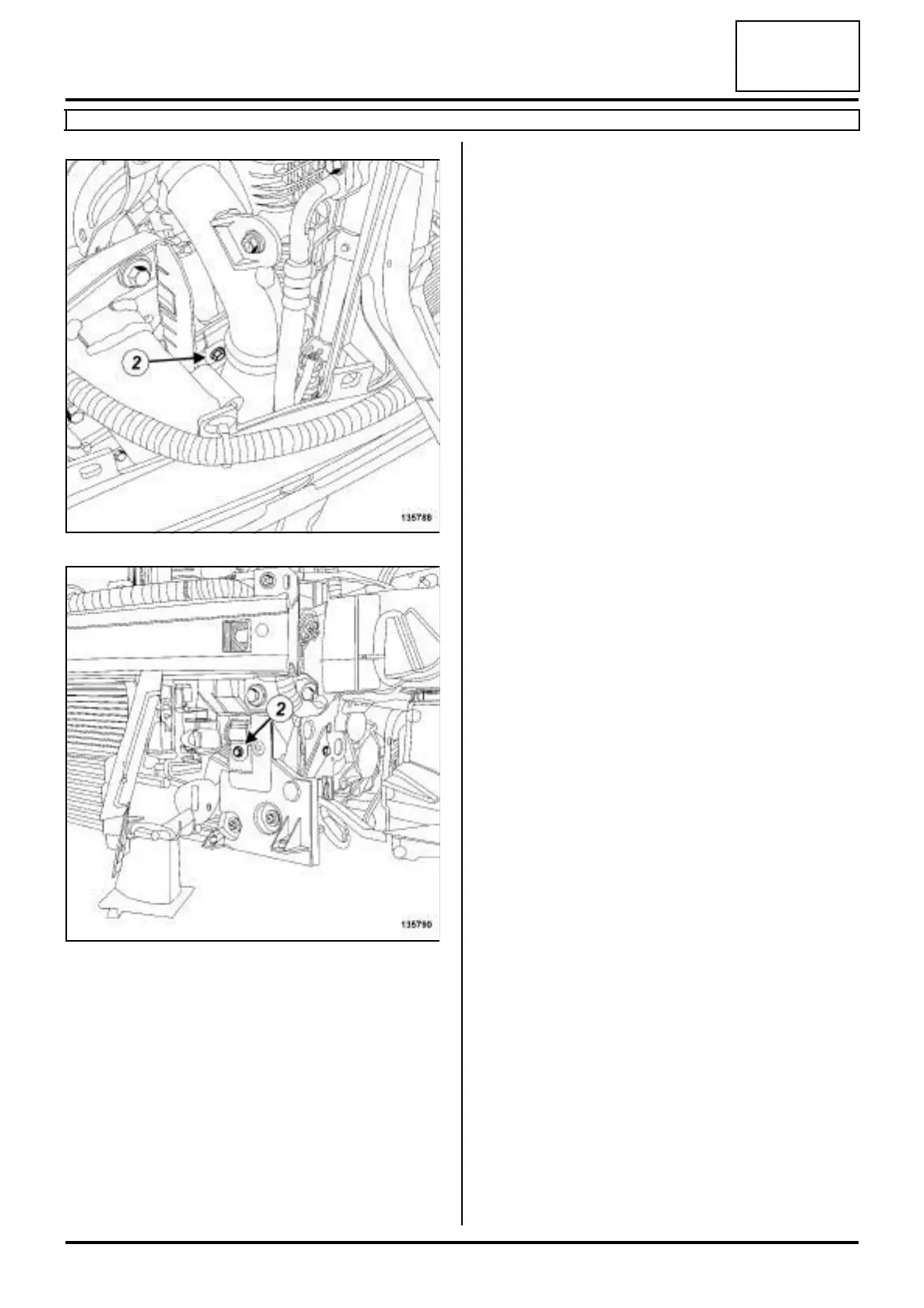

-the retaining bracket bolts (2) on the cooling radia-
tor,
-the retaining brackets on the cooling radiator,
-the cooling radiator.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the cooling radiator,
- the retaining brackets on the cooling radiator.
a Connect the cooling radiator hoses.
a Fit the cooling radiator hose clips using the tool
(Mot. 1448).
II - FINAL OPERATION
a Detach the condenser from the front impact cross
member.
a Clip on the cooling radiator condenser.
a Refit:
- the intercooler (see 12B, Turbocharging, Inter-
cooler: Removal - Refitting, page 12B-37) ,
- the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
- the side air deflectors,
- the upper air deflector,
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray,
- the engine cover.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
a Fill and bleed the cooling system (see 19A, Coo-
ling, Cooling circuit: Draining - Refilling, page
19A-17) .
