19A-55
COOLING
Water pump: Removal - Refitting
F9Q
19A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

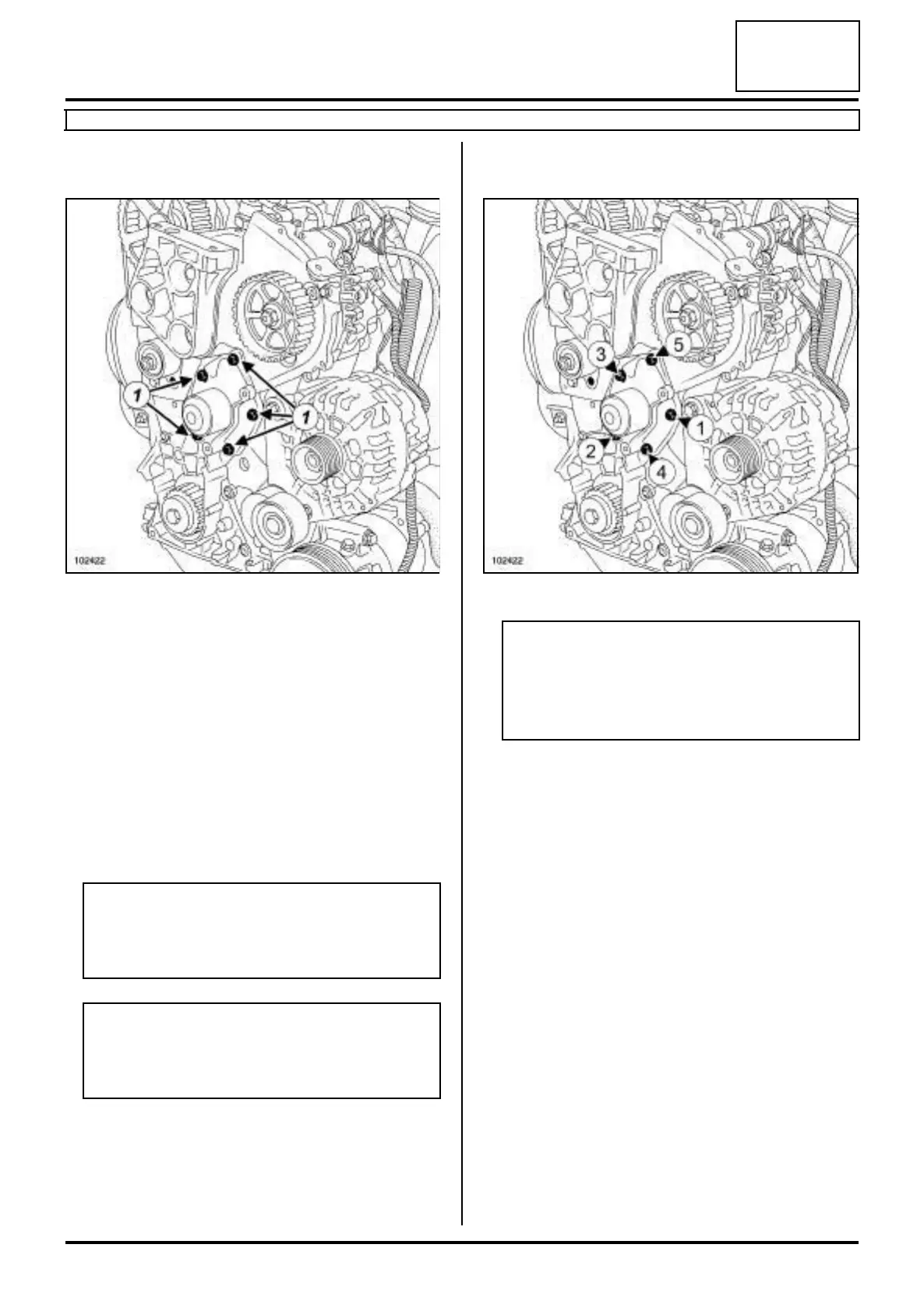

a Remove:
-the coolant pump bolts (1) ,
-the coolant pump,
-the coolant pump seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Coolant pump seal
(10,06,01,21).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the coolant pump sealing face if it is to be reused,
-the cylinder block gasket face.
II - REFITTING OPERATION FOR PART
CONCERNED
a
a Refit:
-a new coolant pump seal,
- the coolant pump.
a Tighten to torque and in order the coolant pump
bolts (12 N.m).
III - FINAL OPERATION
a Refit:
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) ,
- the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
102422
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
102422
Note:
Apply one to two drops of FRENETANCHE (see
Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products) to the
coolant pump bolts (2) and (3) .
