Water pump inlet pipe: Removal - Refitting
F4R
19A
-the coolant pump inlet pipe seal.
a Remove:

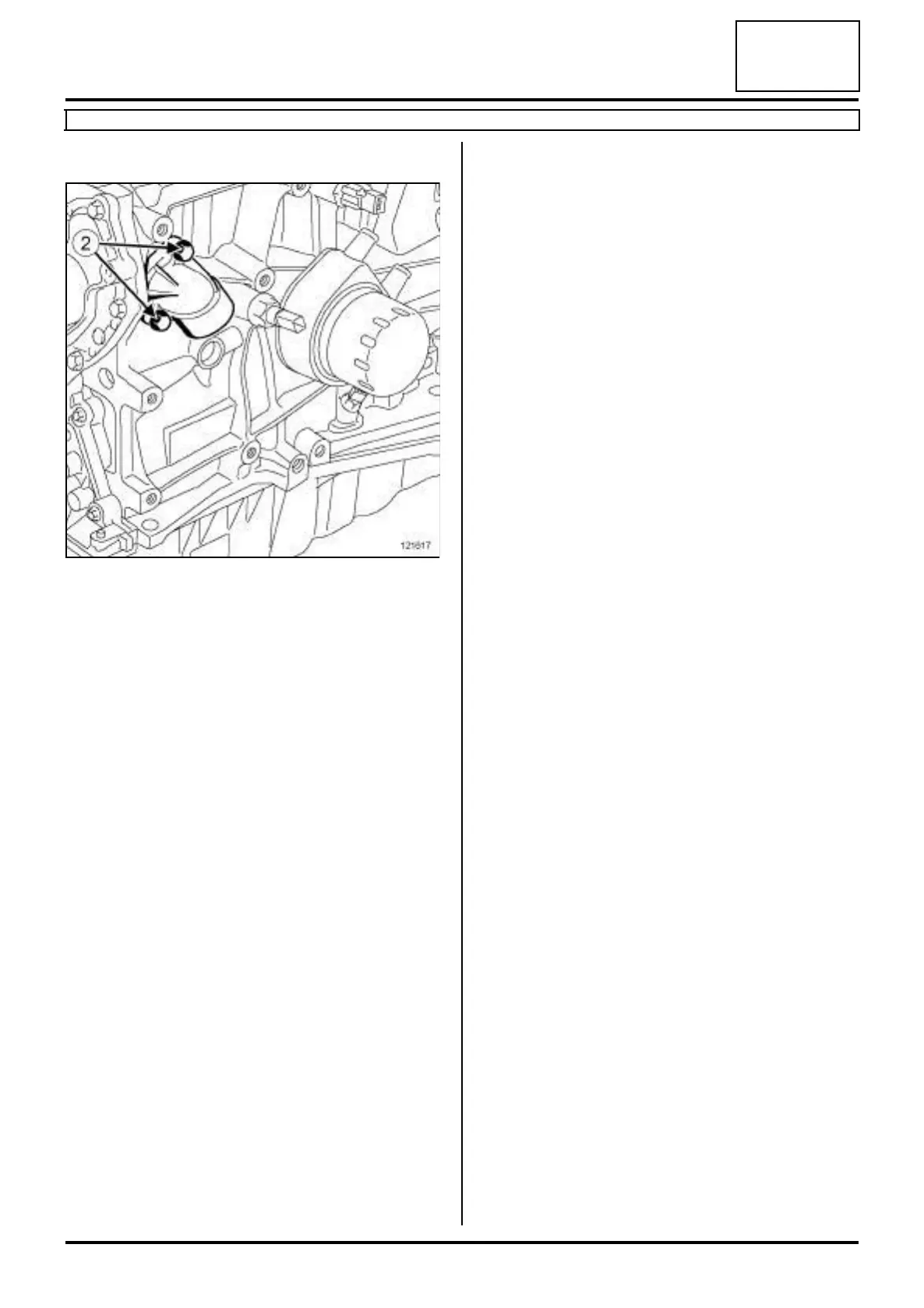

-the coolant pump inlet pipe offset bolt (2) on the cy-
linder block,
-the coolant pump inlet pipe offset,
-the coolant pump inlet pipe offset seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: seal between coo-
lant pump inlet pipe and coolant pump inlet
union (10,06,01,23).
a parts always to be replaced: seal between coo-
lant pump inlet pipe and coolant pump (10,06,01,
22).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the coolant pump inlet pipe seal mating face if it is
being reused,
-the coolant pump inlet pipe seal mating face if it is
being reused,
-the cylinder block gasket face.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
- the coolant pump inlet pipe offset fitted with a new
seal,
- the coolant pump inlet pipe offset bolt on the cylin-
der block.
a Torque tighten the coolant pump inlet pipe offset
bolts on the cylinder block (10 N.m).
a Refit:
- the coolant pump inlet pipe fitted with a new seal.
-the coolant pump inlet pipe bolt on the cylinder
block.
a Torque tighten the coolant pump inlet pipe bolt on
the cylinder block (38 N.m).
a Connect the hose to the coolant pump inlet pipe.
a Fit the hose clip on the coolant pump inlet pipe using
the tool (Mot. 1448).
III - FINAL OPERATION
a Refit:
- the multifunction support (see 10A, Engine and
cylinder block assembly, Multifunction sup-
port: Removal - Refitting, page 10A-84) ,
- the air conditioning compressor (see Compressor:
Removal - Refitting) (62A, Air conditioning),
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres).
a Perform the following operations:
- fill the refrigerant circuit using a refrigerant char-
ging station (see Coolant circuit Draining - Re-
filling) (62A, Air conditioning).
- fill and bleed the coolant circuit (see 19A, Cooling,
Cooling circuit: Draining - Refilling, page 19A-
17) .
