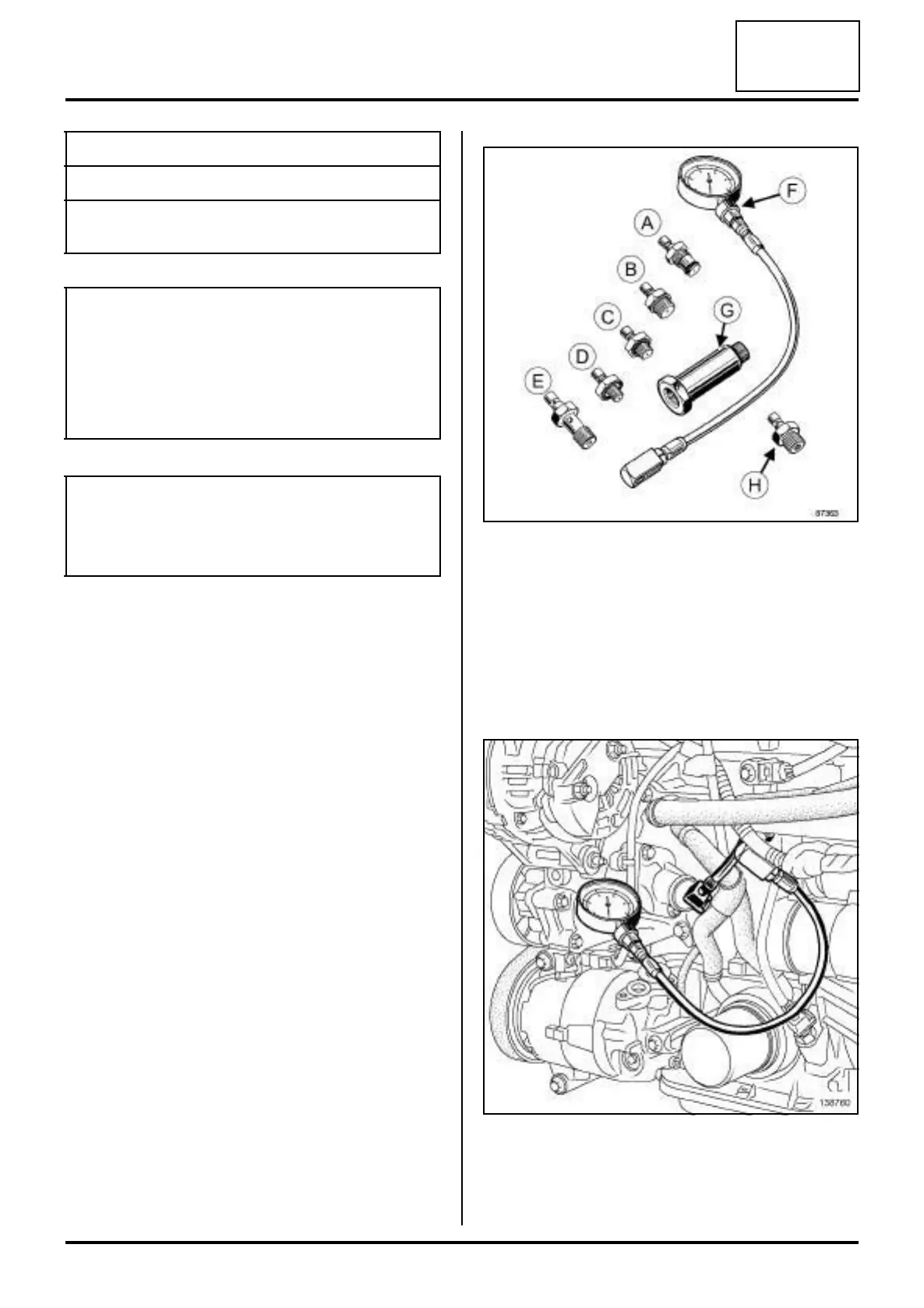

10A-82
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil pressure: Check
10A
I - PARTS AND CONSUMABLES FOR THE REPAIR
WORK
a parts always to be replaced: Engine oil sump
drain plug seal (10,03,01,04).
a parts always to be replaced: Oil filter (10,05,05,
03).
a Consumable:
- engine oil (see Engine oil: Specifications) (Tech-
nical Note 6013A, 04B, Lubricants).
II - CHECKING
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray,
-the oil pressure sensor (see 10A, Engine and cy-
linder block assembly, Oil pressure sensor: Re-
moval - Refitting, page 10A-64) .
a Engine + End pieces:
- F4R: (G) + (C) + (F) ,
- K9K: (G) + (C) + (F) ,
- F9Q: (G) + (C) + (F) ,
- K4M: (G) + (C) + (F) ,
- M4R:+ (F) .
a In place of the oil pressure sensor, fit the (Mot. 836-
05) with suitable adapters using the (Mot. 1495-01)
or a 22 mm long socket.
a Start the vehicle.
Essential special tooling
Mot. 836-05 Oil pressure gauge kit.
Mot. 1495-01 22 mm socket for removing/
refitting oxygen sensors.
WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before deli-
vering the vehicle to the customer.
Note:
When topping up the engine oil, always leave at
least 10 minutes before checking the level with a
dipstick.
