EXHAUST
Catalytic converter: Removal - Refitting
F4R
19B
a Refit:
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) ,
-the catalytic converter strut.
a Fit without tightening:
-the catalytic converter strut nut,
-the catalytic converter strut bolt.
a Tighten to torque:
-the catalytic converter strut bolt (8 N.m),
-the catalytic converter strut nut (44 N.m).
a Refit the driveshaft relay bearing.

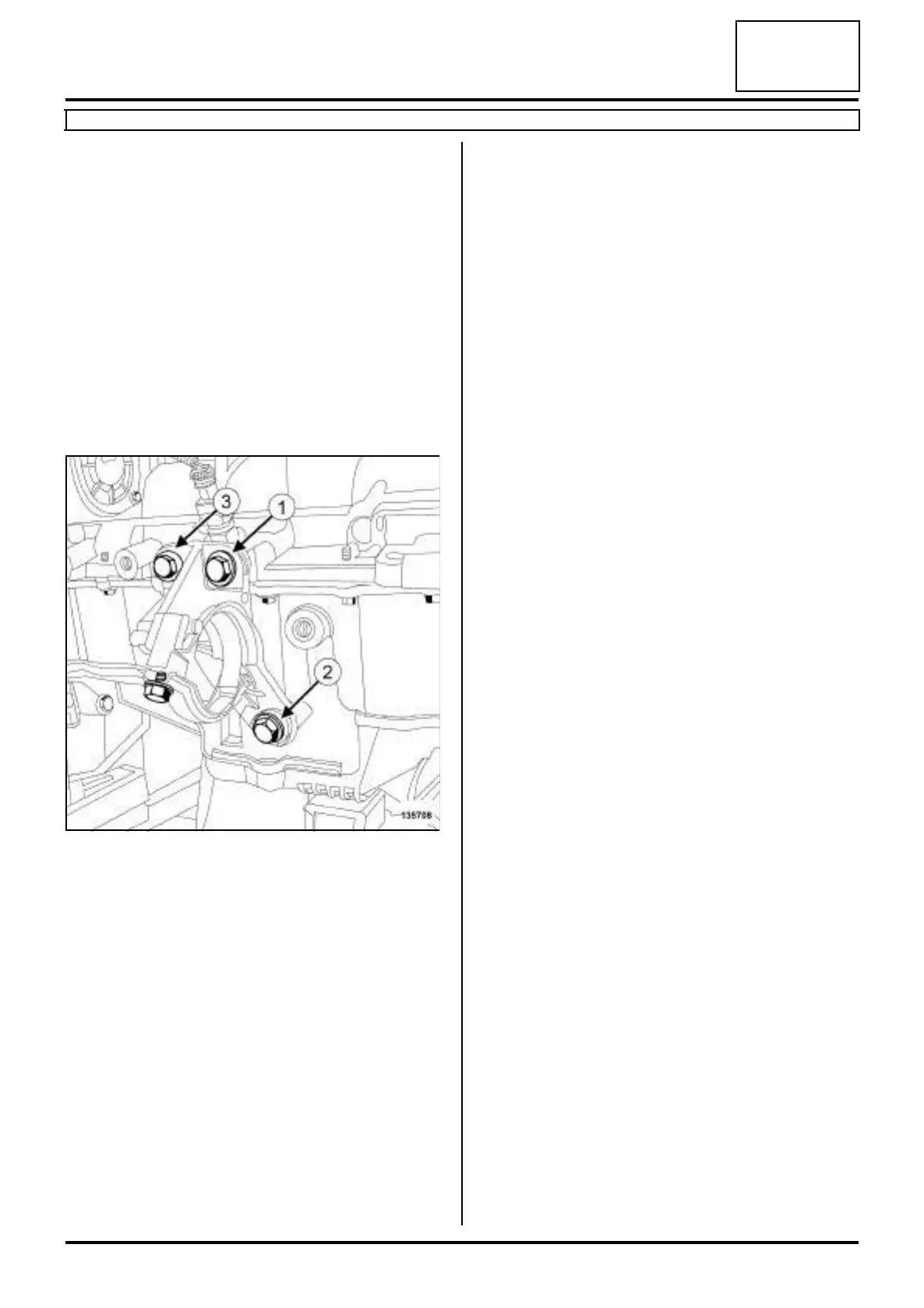

a Fit the driveshaft relay bearing bolt (3) without tighte-
ning it.
a Torque tighten in order the driveshaft relay bea-
ring bolts (44 N.m).
a Refit:
-the lower engine tie-bar support,
-the engine tie-bar support bolts.
a Torque tighten the engine tie-bar support bolts
(62 N.m).
a Fit the electric coolant pump.
a Refit:
-the electric coolant pump clips,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-a new right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts).
a Fill the manual gearbox (see Manual gearbox oil:
Draining - Refilling) (21A, Manual gearbox).
a Refit:
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the lifting eye on the timing end,
- the upstream oxygen sensor (see 17B, Petrol in-
jection, Oxygen sensors: Removal - Refitting,
page 17B-1) ,
- the turbocharger heat shield,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the engine undertray,
- the engine cover.
a Connect the battery (see Battery : Removal - Refit-
ting) (80A, Battery).
