19C-2
TANK

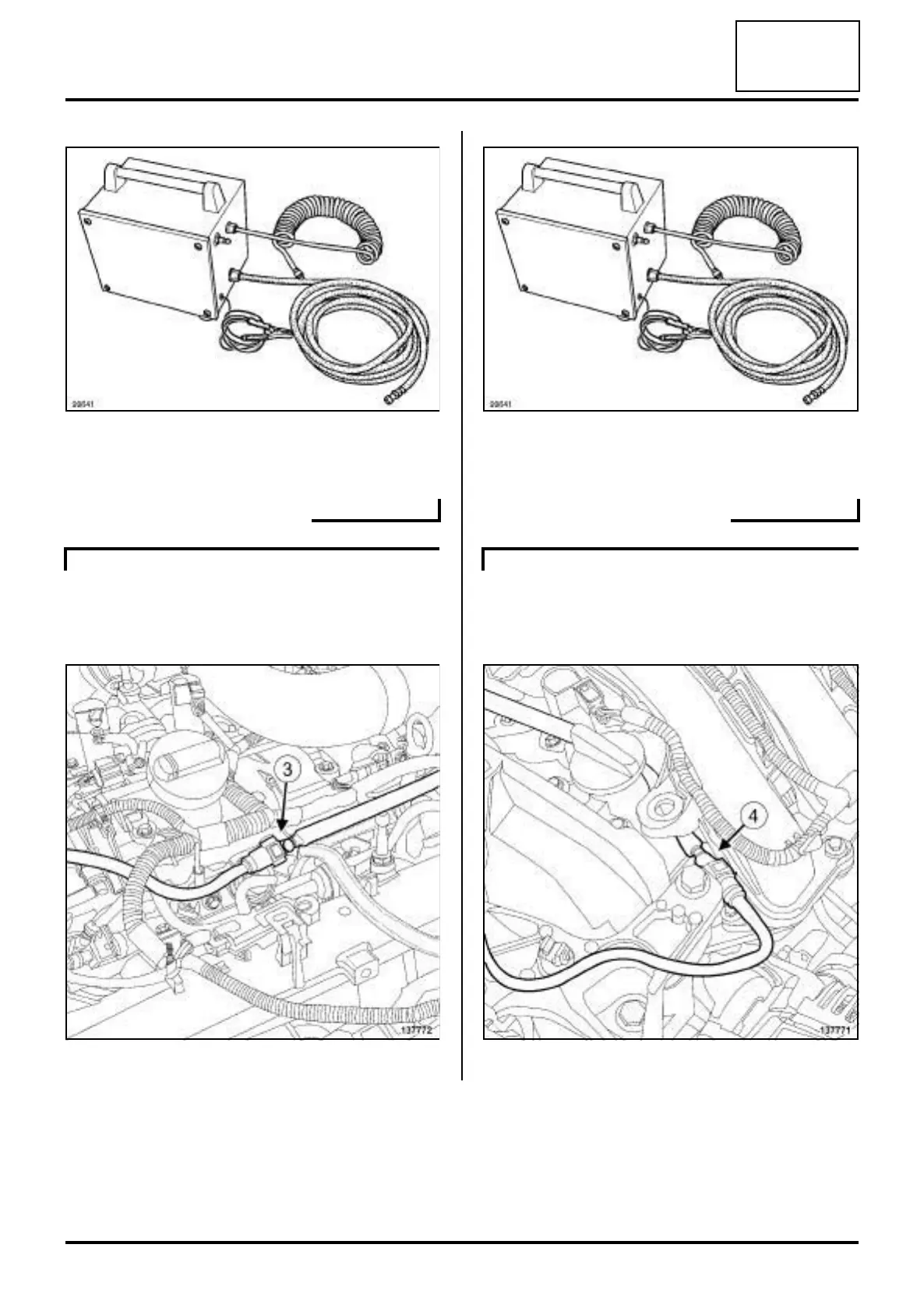

Fuel tank: Draining
19C
a Connect the pneumatic transfer pump for fuels on
the fuel supply pipe of the fuel priming pump.
a Remove the front engine cover.
a Disconnect the fuel supply pipe union from the injec-
tor rail.
a Fit a « T » union (Mot. 1311-08) (3) .
a Connect a pneumatic transfer pump for fuels to
the « T » union outlet.
a Remove the front engine cover.
a Disconnect the fuel supply pipe union from the injec-
tor rail.
a Fit a « T » union (Mot. 1311-08) (4) .
99641
F4R
137772
99641
K4M
137771
