19C-7
TANK
Fuel tank: Removal - Refitting
19C

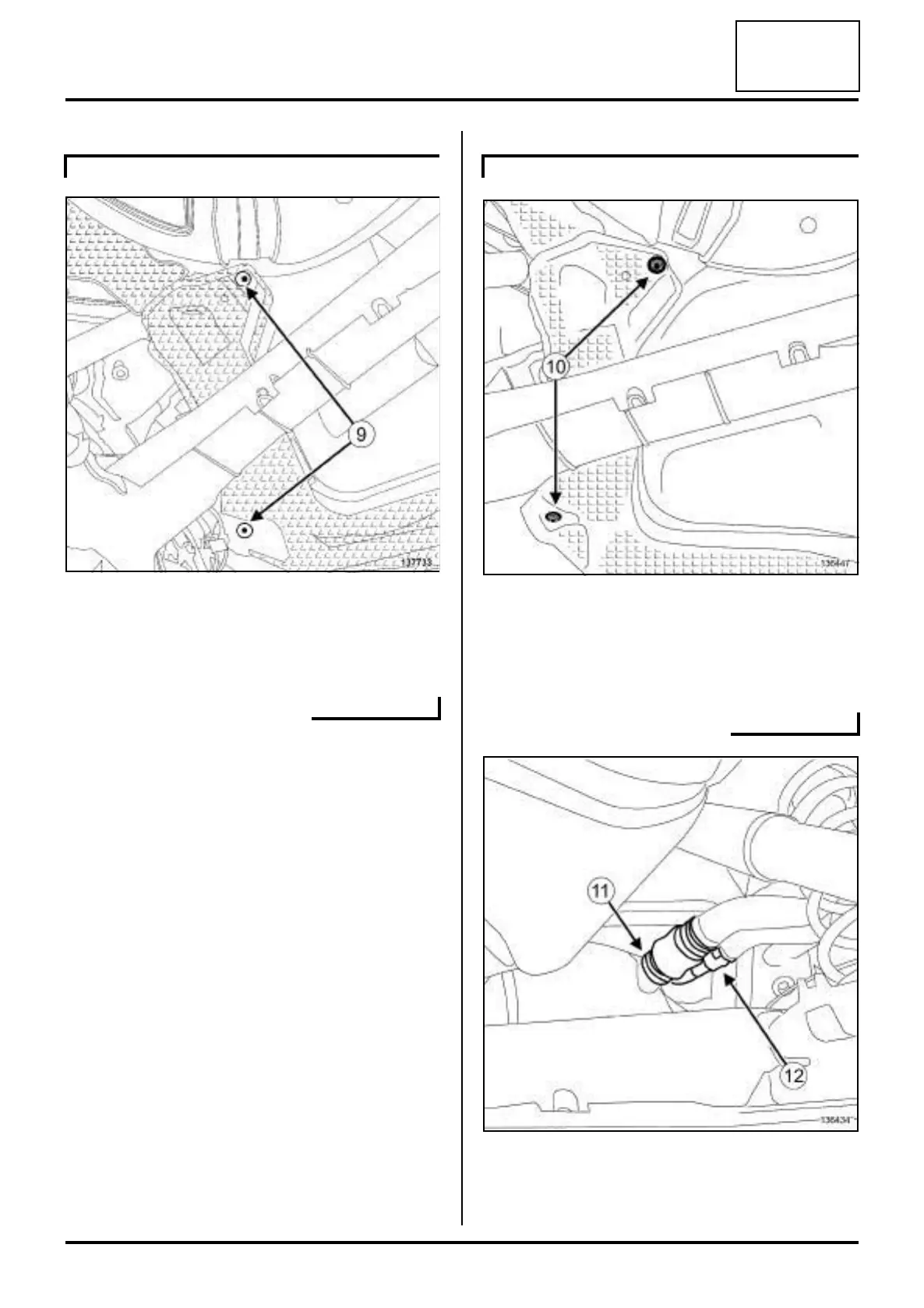

a Remove:
-the rear heat shield bolts (9) ,
-the rear heat shield.
a Remove:
- the rear heat shield bolts (10) ,
- the rear heat shield.
a Remove the clip (11) from the « filler neck - fuel
tank » connecting hose on the fuel tank side.
a Disconnect the anti-return pipe union (12) .
F9Q or K9K
137733
F4R or K4M
136447
136434
