10A-89
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Drain the refrigerant fluid circuit using the refrige-
rant charging station (see Coolant circuit Drai-
ning - Refilling) (62A, Air conditioning).
a Remove:
-the engine cover,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) ,
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the upper air deflector from the cooling radiator,
-the side air deflectors from the cooling radiator,
- the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
- the frontal impact cross member (see Front im-
pact cross member: Removal - Refitting) (41A,
Front lower structure),
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms).

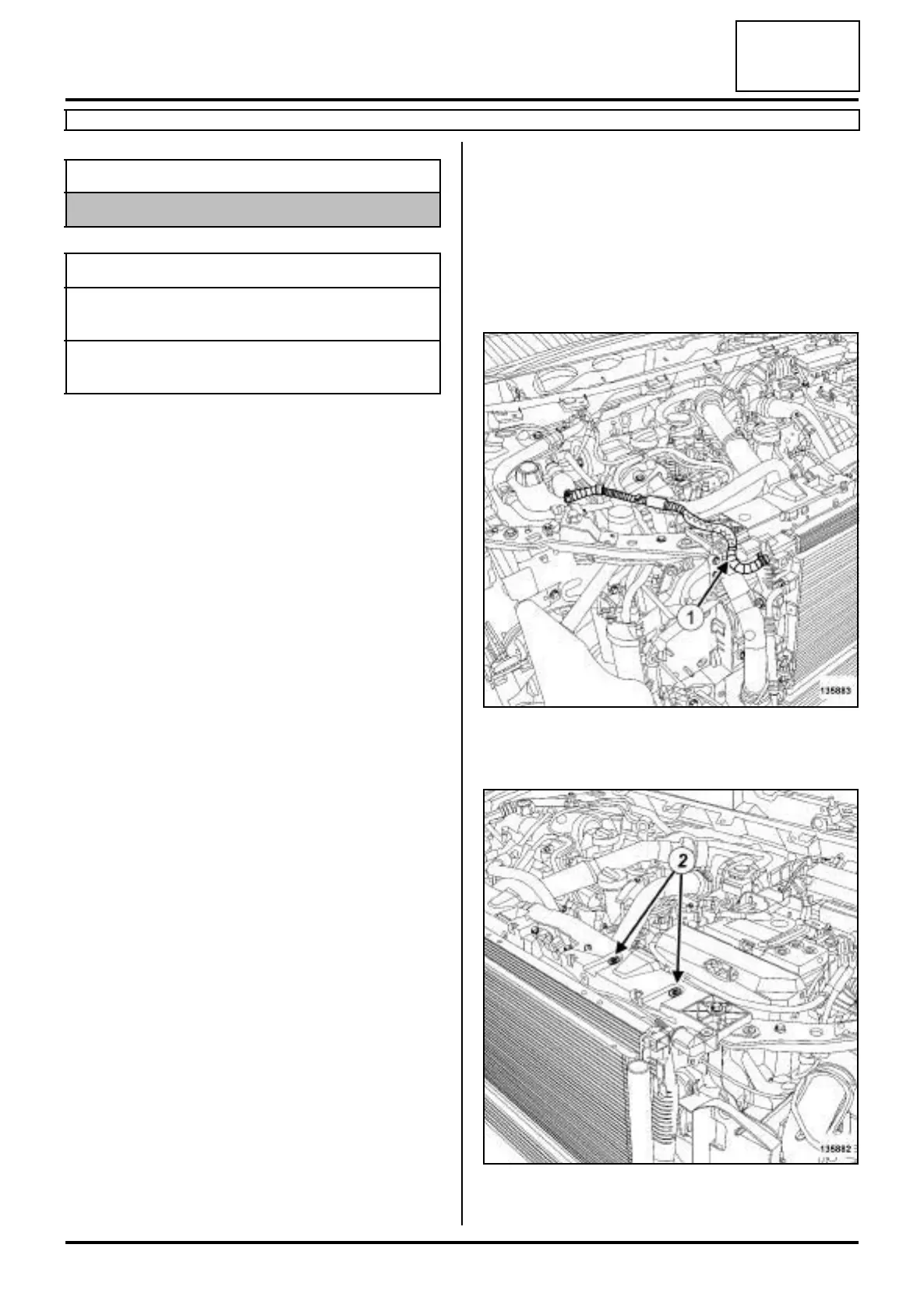

a Unclip the expansion bottle top hose from the front
end panel (1) .
a Remove the engine wiring channel bolts (2) from the
front end panel.
Essential equipment
refrigerant charging station
Tightening torquesm
bolts (1) to (6) of the
multifunction support
44 N.m
bolt (7) of the multifunc-
tion support
25 N.m
135883
135882
