19D-2
ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
F9Q
19D
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the central bolt (3) from the suspended en-
gine mounting rubber pad support.
a Gently lower the engine until the rubber pad deta-
ches.
a Remove:
-the bolts (4) from the suspended engine mounting
support on the body,
-the suspended engine mounting support on the bo-
dy.
a Remove:
- the gearbox mounting bolts (5) from the suspended
engine mounting,
- the gearbox mounting from the suspended engine
mounting.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the gearbox mounting on the suspended engi-
ne mounting.
a Torque tighten the gearbox mounting bolts on the
suspended engine mounting (62 N.m).
a Refit the mounting on the suspended engine moun-
ting body.
a Torque tighten the bolts of the suspended engine
mounting support on the body (62 N.m).
a Refit the central bolt for the suspended engine
mounting rubber pad support.
a Torque tighten the central bolt for the suspended
engine mounting rubber pad support (105 N.m).
II - FINAL OPERATION
a Remove the (Mot. 1453) and (Mot. 1453-01).
a Refit:
- the front left-hand bonnet stop,

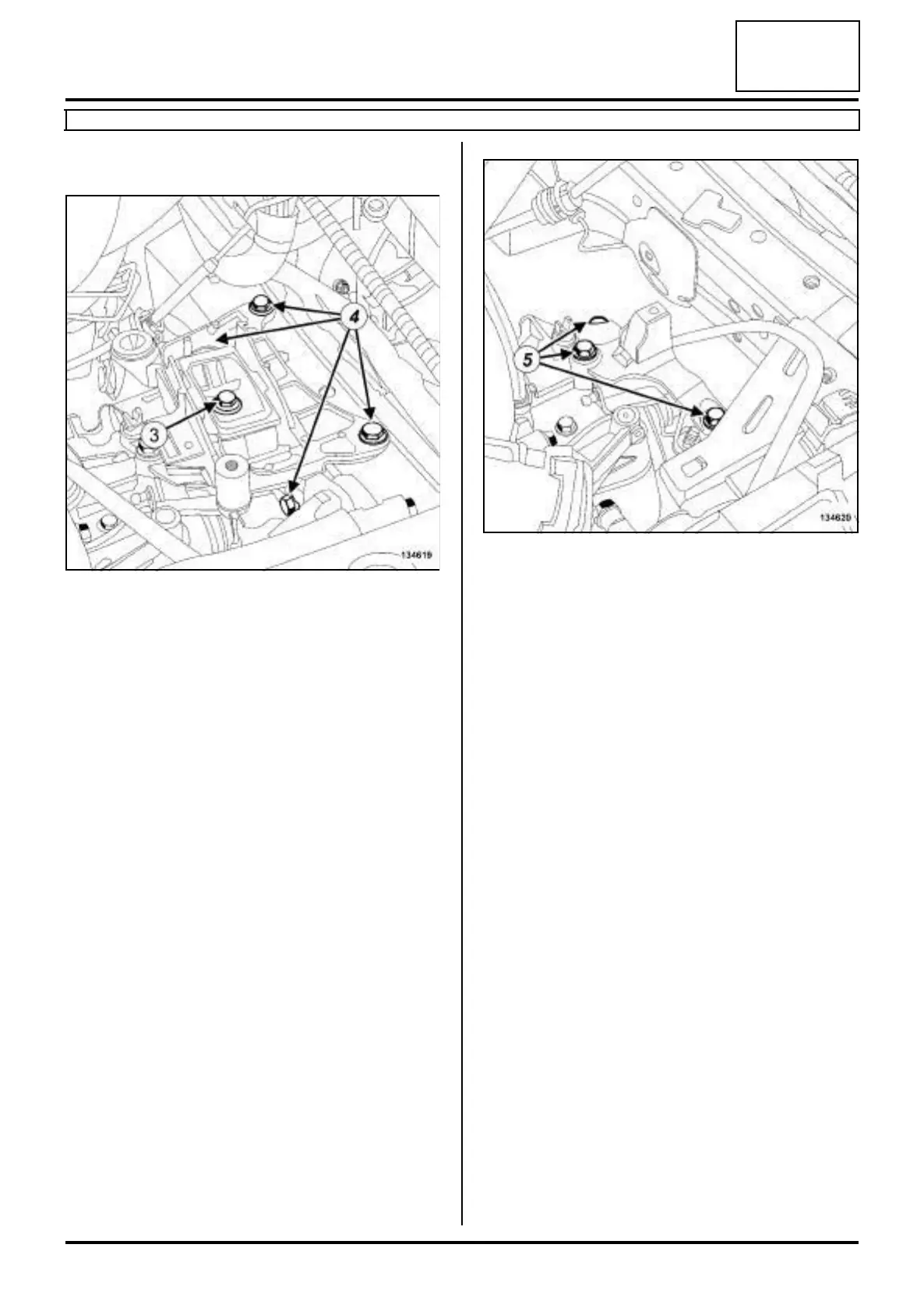

134619
