Multifunction support: Removal - Refitting
K9K
10A
a Tighten to torque and in order:

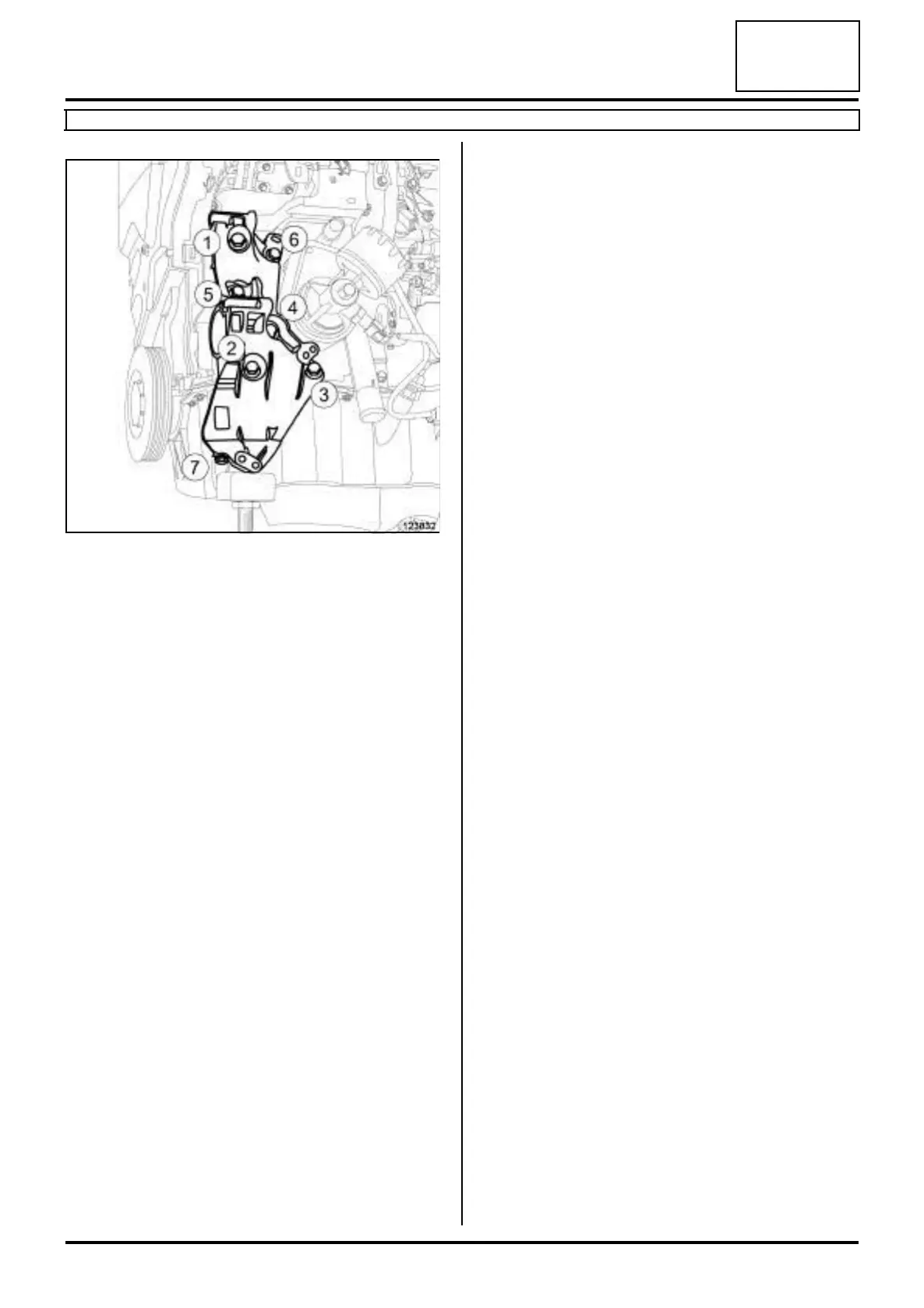

-the bolts (1) to (6) of the multifunction support
(44 N.m),
-the bolt (7) of the multifunction support (25
N.m).
II - FINAL OPERATION
a Refit:
-the air conditioning compressor (see Compressor:
Removal - Refitting) (62A, Air conditioning),
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) .
a Fit the front end panel.
a Refit:
-the lower bolts from the front end panel,
-the front end panel upper bolts,
-the front end panel clips,
-the bolts of the engine cooling fan assembly wiring
channel on the front end panel.
a Clip the expansion bottle top hose onto the front end
panel.
a Refit:
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
lower structure),
- the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
- the cooling radiator side air deflectors,
- the upper air deflector of the cooling radiator,
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure).
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) ,
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the engine undertray,
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine cover.
a Connect the battery (see Battery : Removal - Refit-
ting) (80A, Battery).
a Fill the refrigerant circuit using a refrigerant char-
ging station (see Coolant circuit Draining - Refil-
ling) (62A, Air conditioning).
