19D-19
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K4M
19D
II - OPERATION FOR REMOVAL OF PART
CONCERNED

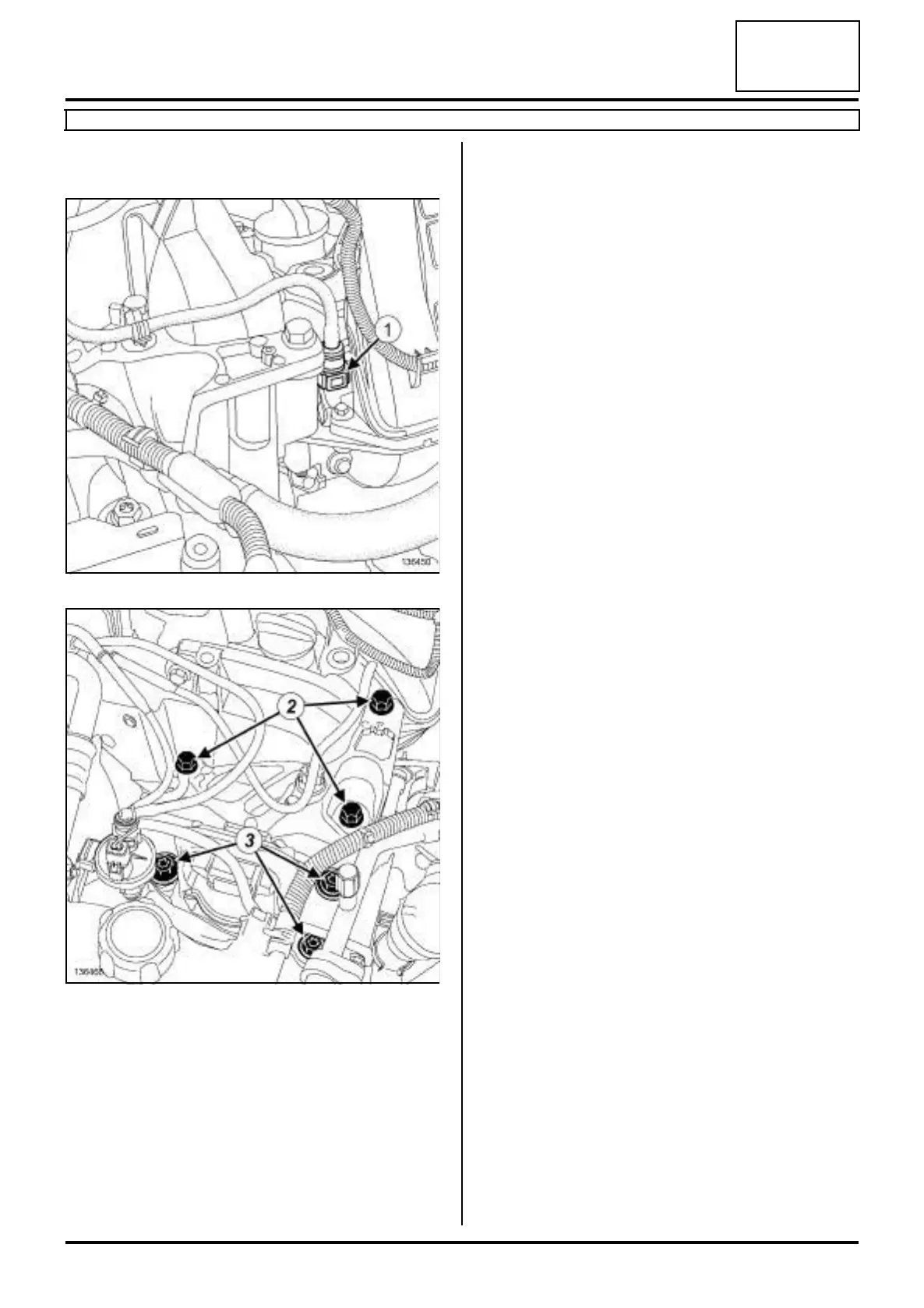

a Disconnect the fuel supply pipe from the injector rail
(1) .
a Insert the blanking plugs.
a Unclip the fuel supply pipe from the right-hand sus-
pended engine mounting.
a Remove the fuel supply pipe from the right-hand
suspended engine mounting.
a Mark the position of the right-hand suspended engi-
ne mounting on the body using a indelible pencil.
a Remove:
- the bolts (2) from the right-hand suspended engine
mounting cover,
- the bolt (3) from the rubber pad on the right-hand
suspended engine mounting,
- the right-hand suspended engine mounting.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Fit the right-hand suspended engine mounting to the
engine.
a Tighten to torque:
- the bolts for the suspended engine mounting
rubber pad (62 N.m).
- the bolts for the right-hand suspended engine
mounting cover (62 N.m).
a Fit the fuel supply pipe to the right-hand suspended
engine mounting.
a Clip the fuel supply pipe on the right-hand suspen-
ded engine mounting.
a Remove the blanking plugs.
a Connect the fuel supply pipe to the injector rail.
II - FINAL OPERATION
a Remove the (Mot. 1453) fitted with the (Mot. 1453-
01).
a Refit:
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the engine cover.
136450
136468
