 Do not ll the syringe or tubing with oil
1. Turn the unit upside down.
2. Insert the end of the hard polythene tubing through the hole in the
side of the base.
3. Ease the tubing over the spigot, ensuring that the tubing is securely
ed.
4. The other end of the tubing is ed to the micropipee holder.

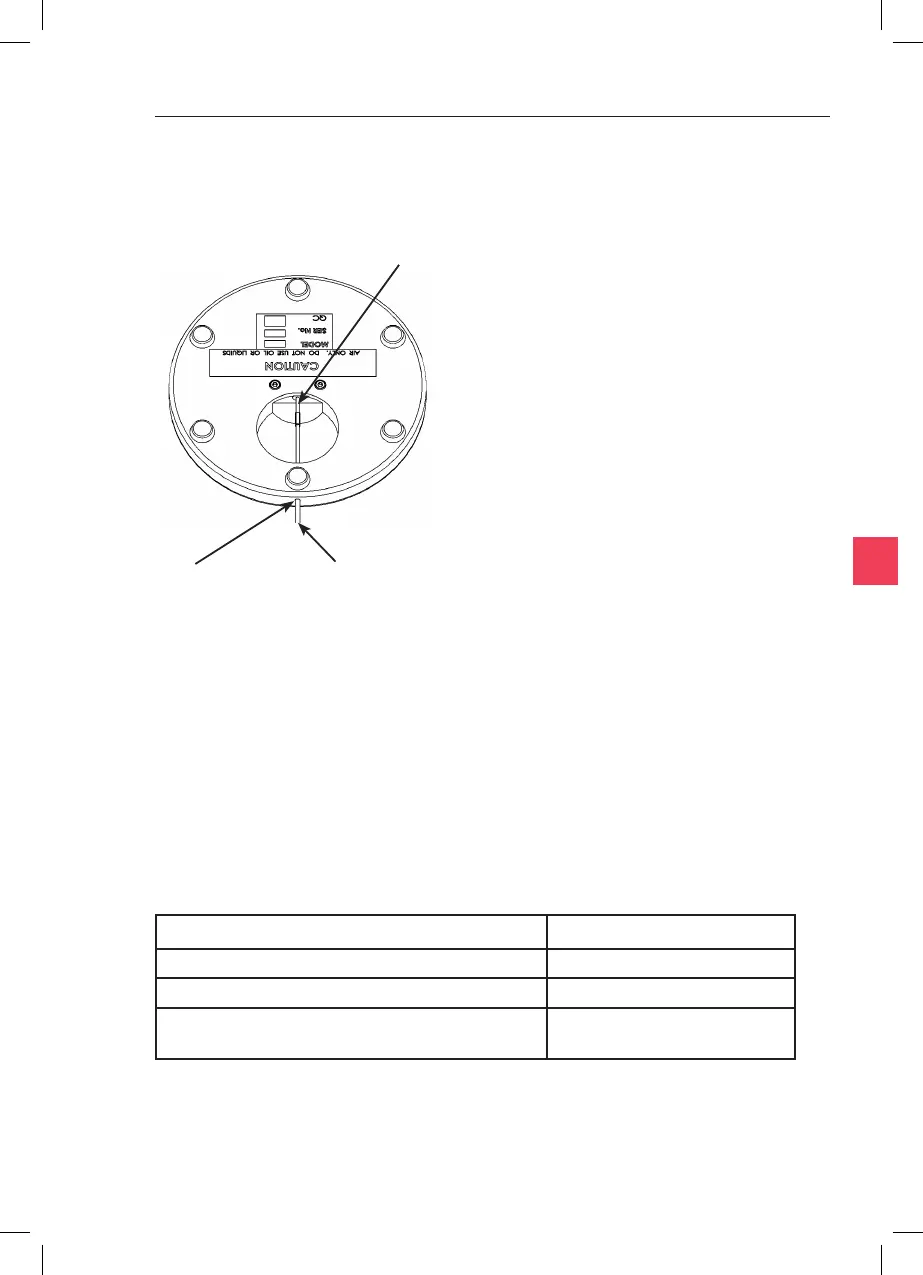

Spigot
Hard Polythene TubingHole
Figure 9-1

 
Piston Stroke 30mm
Weight 1.7kg
Overall Dimensions 125mm diameter
x 120mm high
