REXROTH IndraDrive C Series User Manual

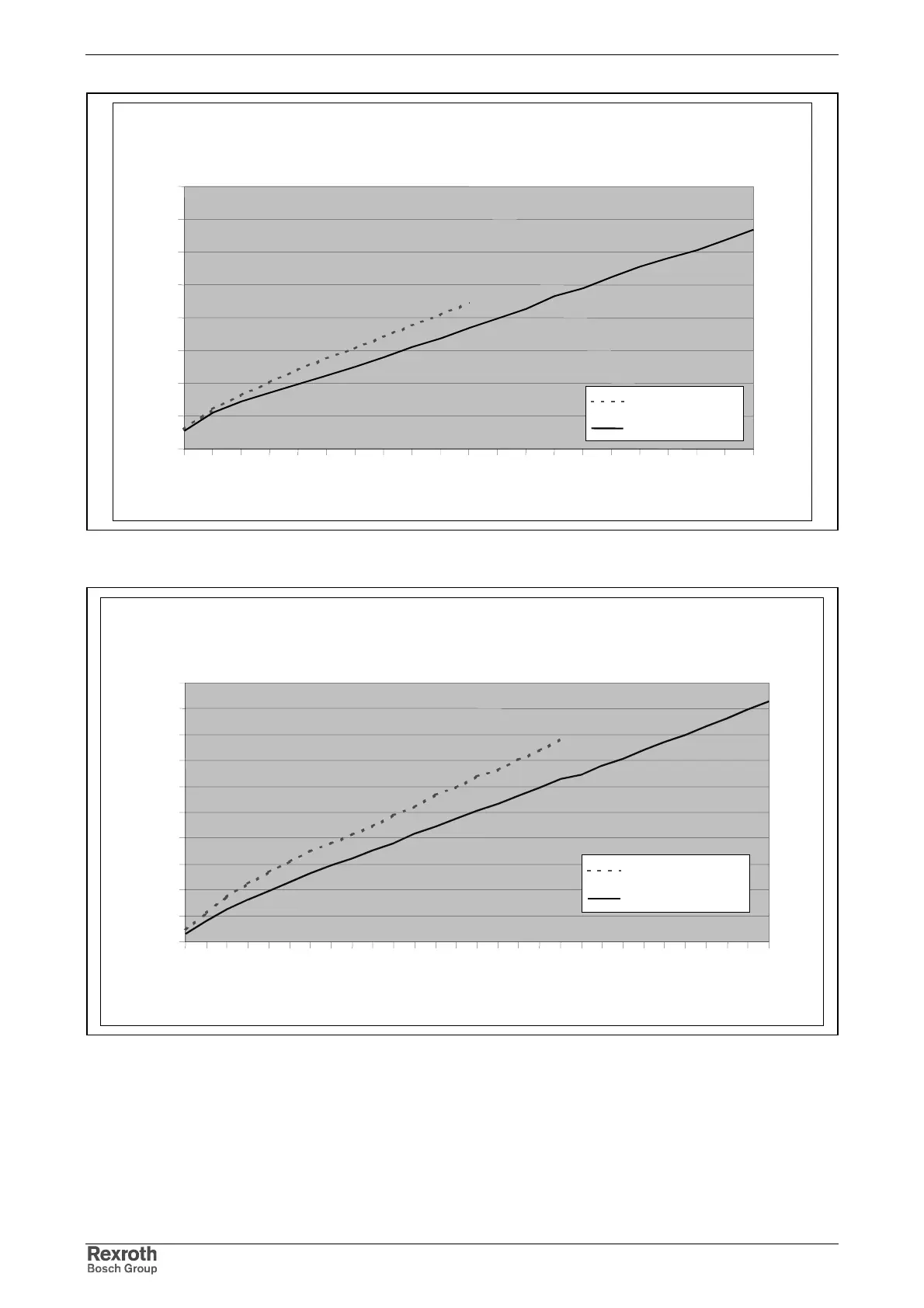

6-8 Electrical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
HCS02.1-E-W0054 @3AC400V
0
2
4
6
8
10
12
14
16
0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,
P
DC cont
[kW]
without choke
with choke
S
LN
[kVA]
Fig. 6-8: HCS02.1E-W0054
HCS02.1-E-W0070 @3AC400V
0
2
4
6
8
10
12
14
16
18
20
0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10, 11, 12, 13, 14,
P
DC cont
[kW]
without choke
with choke
S
LN
[kVA]
Fig. 6-9: HCS02.1E-W0070

REXROTH IndraDrive C Series Specifications

General

Protection Class	IP20
Communication Interfaces	EtherCAT, PROFIBUS, PROFINET, CANopen
Feedback Systems	Incremental Encoders, Absolute Encoders, Resolver
Ambient Temperature	0°C to 45°C
Cooling Method	Natural convection or forced air
Relative Humidity	5% to 85% (non-condensing)
Control Modes	Torque, position
