Ricoh Aficio MP C2030 Service Manual

Tray Heaters (Optional Unit)
D037/D038/D040/D041 2-80 SM

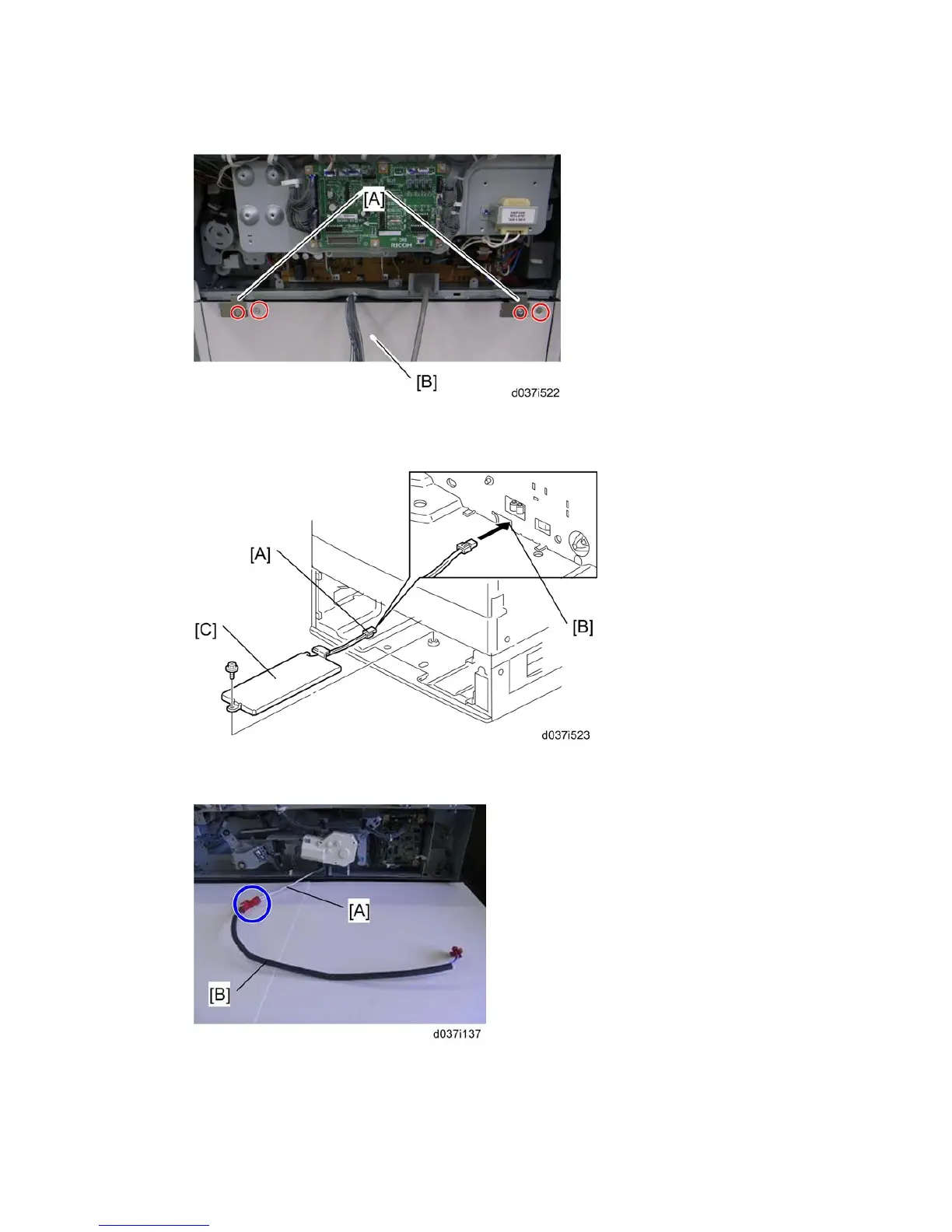

5. Remove the securing brackets [A] ( x 1 each), and then the rear cover [B] of the
paper feed unit ( x 2).
6. Pass the connector [A] through the opening [B].
7. Install the tray heater [C] ( x 1)
8. Connect the heater harness [A] of the heater to the relay harness [B].
