Tray Heaters (Optional Unit)
SM 2-81 D037/D038/D040/D041
Installaion

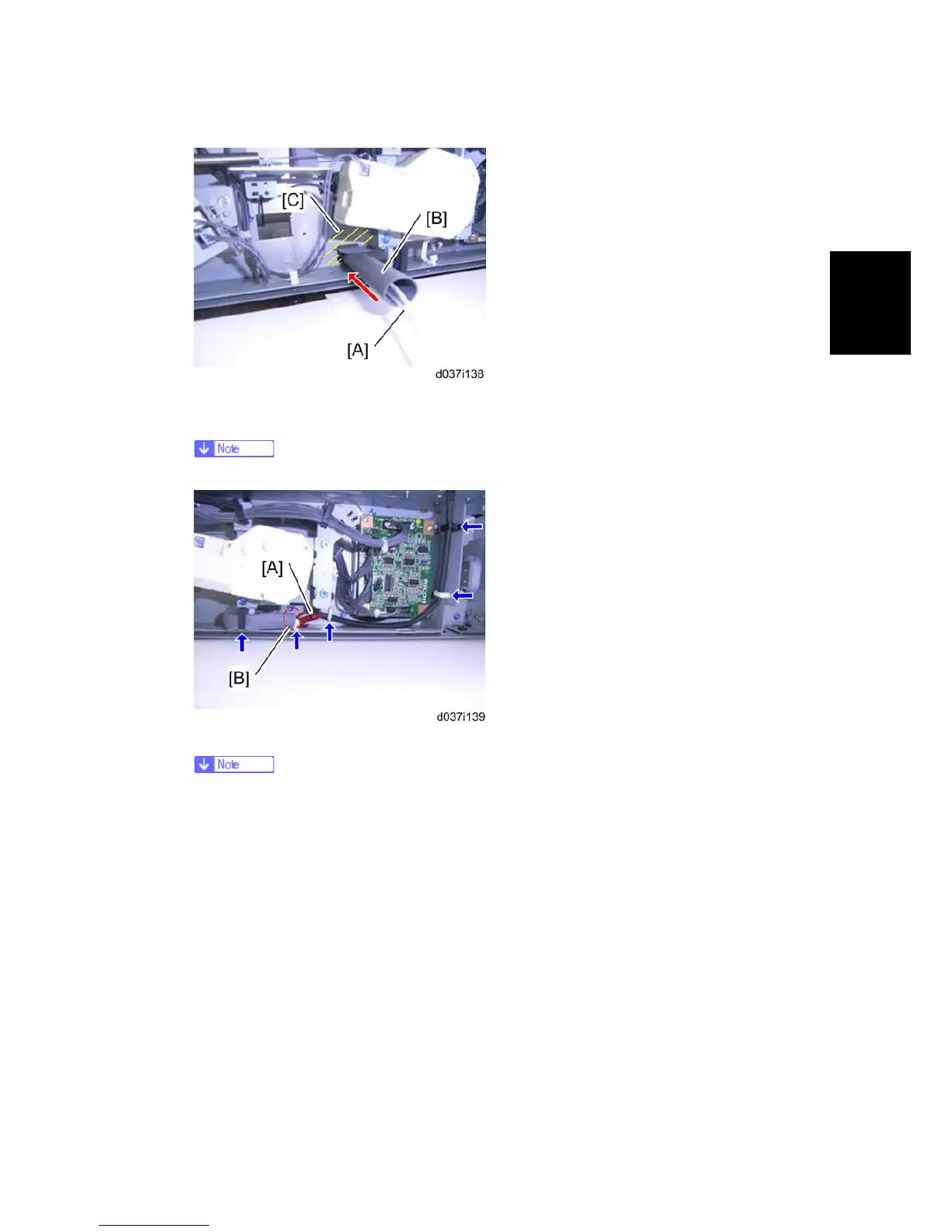

9. Insert the heater harness [A] into the tube [B], and push the tube against the rear frame
of the paper feed unit as shown above.
 Make sure that the tube is in contact with the rear frame [C].
10. Route the relay harness [A] as shown above (= x 5).
 Make sure that the connector [A] is placed securely as shown above.
 Make sure that the edge of the tube [B] is placed as shown above.
11. Reattach the rear cover of the paper feed unit ( x 2) and securing brackets ( x 1
each)
