Paper Feed Unit (D425)
D037/D038/D040/D041 2-26 SM

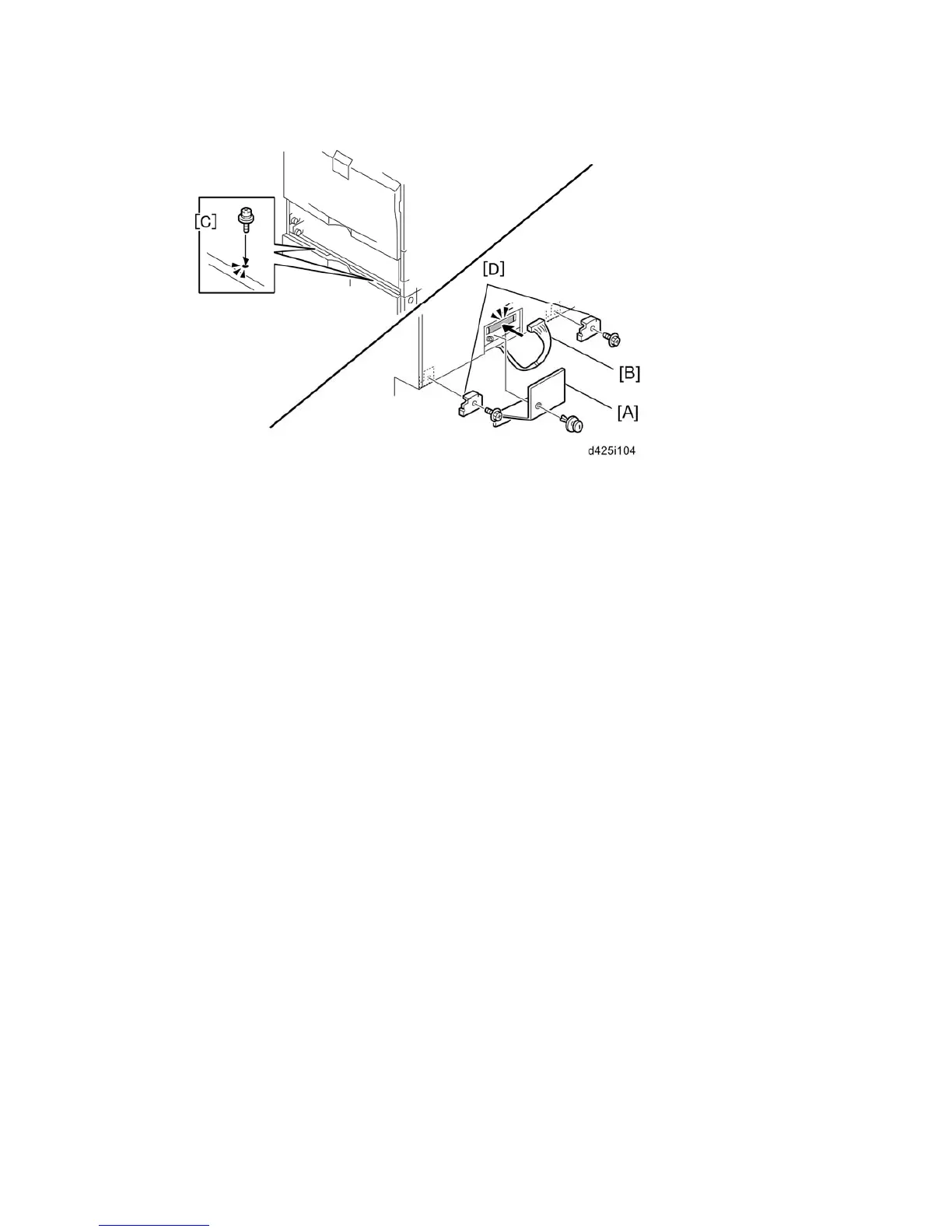

6. Remove the rear connector cover [A] of the main machine (rivet screw x 1).
7. Connect the harness [B] to the main machine.
8. Reinstall the rear connector cover [A] (rivet screw x 1).
9. Remove tray 1 and 2 of the machine.
10. Fasten the screws (M4 x 10) [C].
11. Reinstall all trays.
12. Attach the securing brackets [D] (M4 x 10; x 1 each).
13. Load paper into the paper feed unit.
14. Turn on the main power switch of the machine.
15. Adjust the registration for each tray ( Section: Image Adjustment).
Use SP1002-004
16. Check the paper feed unit operation and copy quality.
