Ricoh Aficio MP C2030 Service Manual

Side Tray (D427)
SM 2-35 D037/D038/D040/D041

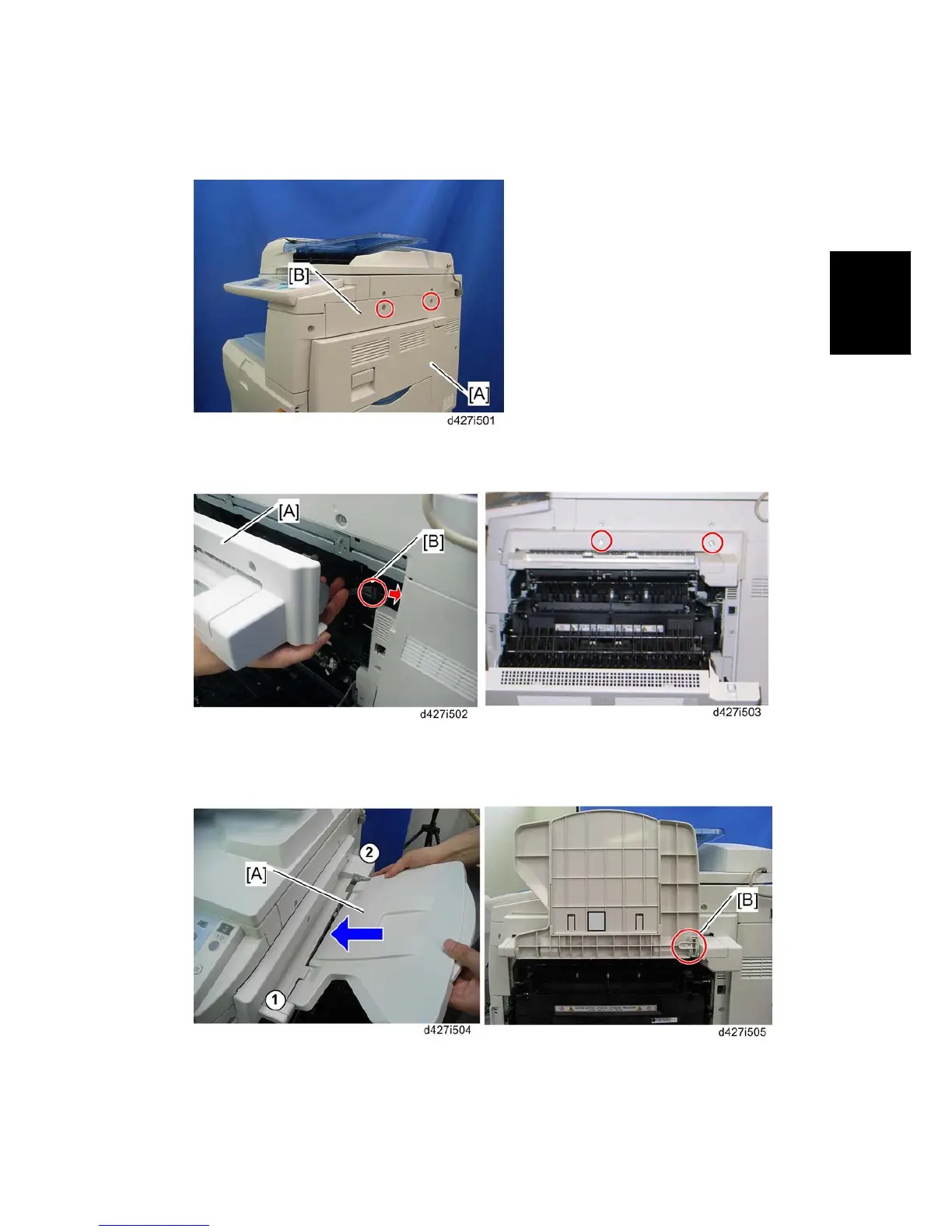

Installaion
1. Remove all tapes on the side tray.
2. Open the duplex unit [A].
3. Remove the right upper cover [B] ( x 2).
4. Close the side tray paper exit unit [A], and then connect the harness [B] to the
machine.
5. Install the side tray paper exit unit ( x 2: removed in step 3).
6. Install the side tray [A].
7. Lift the side tray, and then install the tray stopper [B] ( x 1: M3x8).

Ricoh Aficio MP C2030 Specifications

General

Brand	Ricoh
Model	Aficio MP C2030
Category	All in One Printer
Language	English
