Ricoh Aficio MP C2030 Service Manual

Side Tray (D427)
D037/D038/D040/D041 2-36 SM

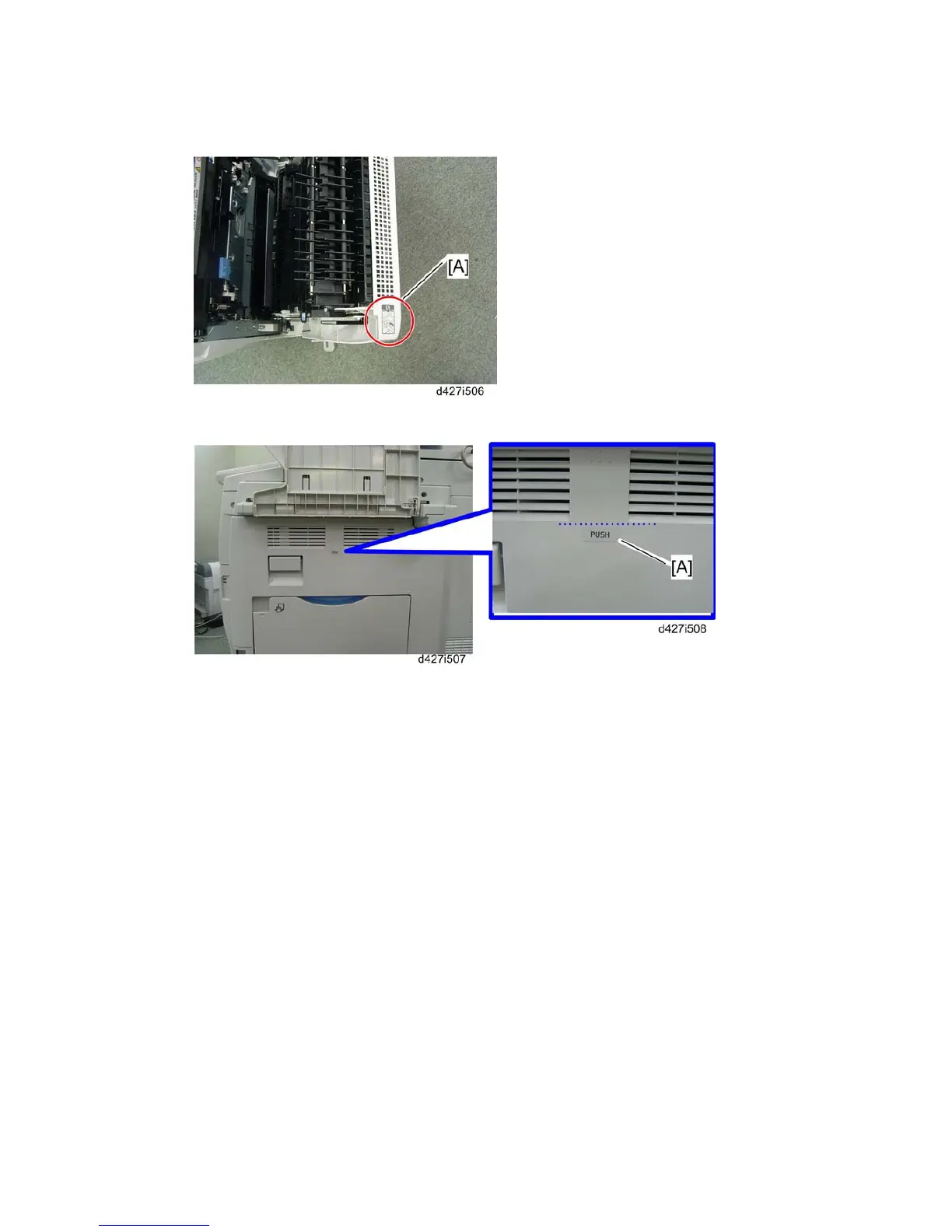

8. Attach the ‘Push door’ decal [A] to the top front edge of the duplex unit cover.
9. Close the duplex unit, and then attach the ‘Push’ decal [A] to the duplex unit cover.
10. Turn on the main power switch of the machine.
11. Check the side tray operation.

Ricoh Aficio MP C2030 Specifications

General

Brand	Ricoh
Model	Aficio MP C2030
Category	All in One Printer
Language	English
