Ricoh B264 - Installation: One G3 Board

G3 INTERFACE UNIT TYPE 3045
SM 7 B779
Fax Option
B779

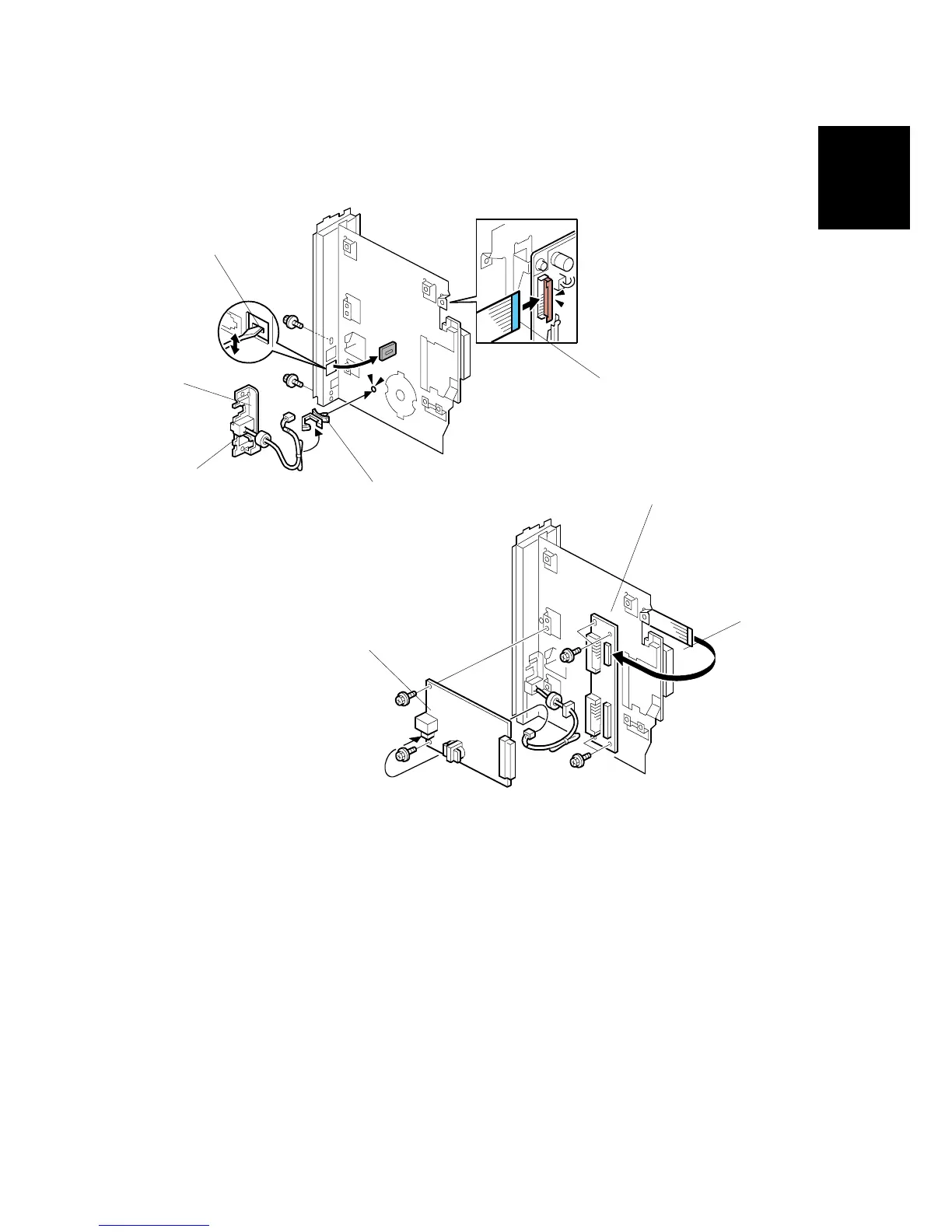

1.3.2 INSTALLATION: ONE G3 BOARD
1. Remove the knockout [A].
2. Attach the clamp [B] ( x1).
3. Attach the head of the RJ-45 connector [C] to the bracket [D].
4. Set the bracket [D] and fasten it. ( x2).
5. Attach one end of the flat film connector [E].
6. Attach the CCUIF [F] ( x4)
7. Attach the other end of the flat film connector [G] to the CCUIF.
8. Attach the G3 board [H] ( x2,  x1,  x2).
9. Return to page 3 and complete the installation.
B779I904.WMF
B779I905.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
