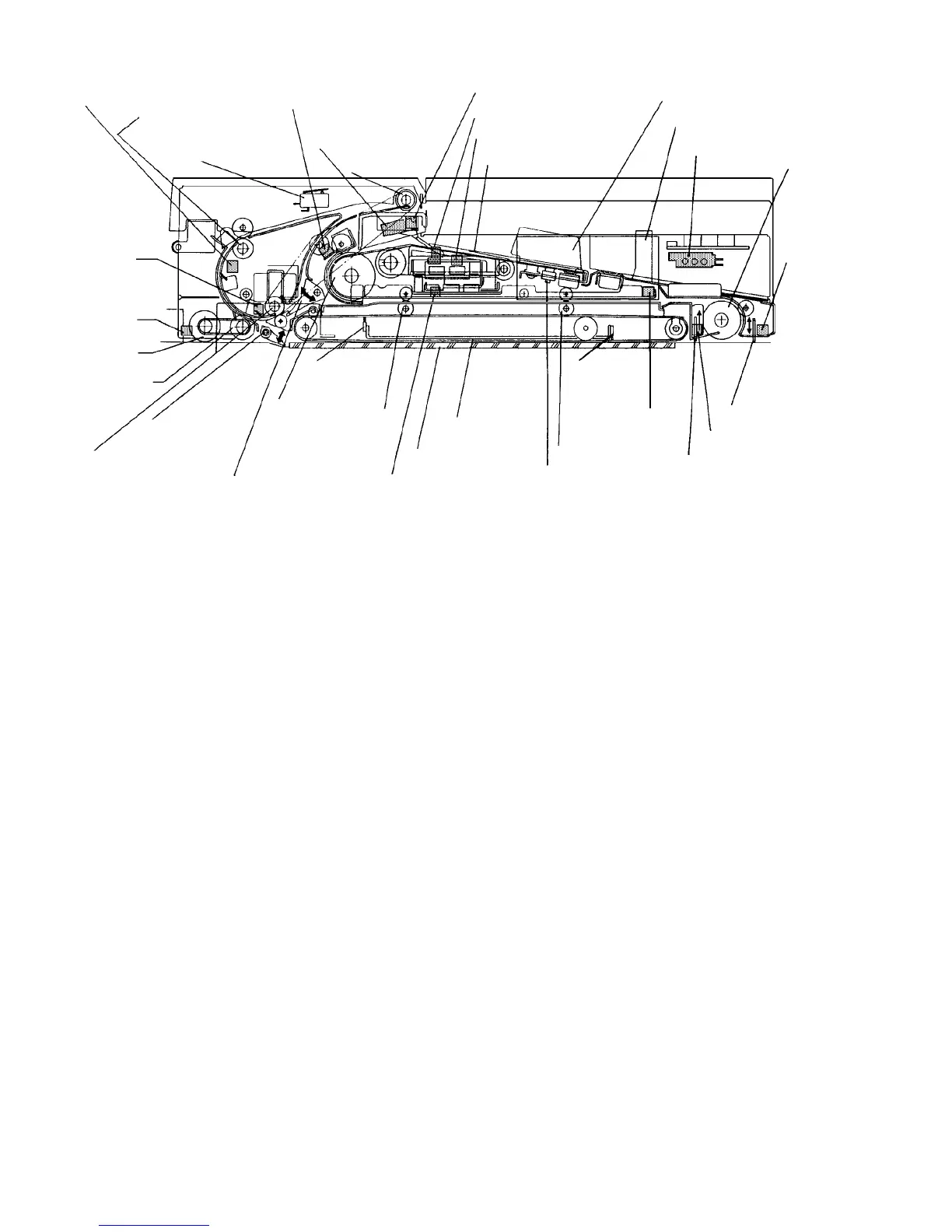

Ricoh FT9101 - Page 160

Switchback roller
2nd reverse sensor
1st reverse
sensor
SADF exit
sensor
Reverse
entrance
roller
SADF exit
roller
Reverse exit
roller
SADF exit
gate plate
Reverse junction gate pawls
Original
feed roller
Antistatic
brush
Relay
rollers
1st transport
sensor
Exposure glass
Transport belt
Original size sensor
Relay rollers
2nd
transport
sensor
Antistatic
brush
SADF registration
gate plate
Registration sensor
SADF entrance
gate plate
SADF set
sensor
Right turn roller
Original length
sensor
Original stopper
Original guides
Original transport belt
Recycle arm sensor
Original set sensor
Exit sensor
Exit roller
Recycle arm height
sensor
Entrance sensor
ADF left cover
safety switch
1 July 1994
ADF
2-109
