Ricoh FT9101 - Replacement and Adjustment

2. REPLACEMENT AND ADJUSTMENT
2.1 Paper Feed
2.1.1 Replacing the feed, reverse and pick-up rollers
PM cycle: Replace every 400K
NOTE
One set of the feed, reverse and pick-up rollers can
feed up to approximately 150,000 sheets of paper.
If the paper trays are not used evenly, replace the
rollers that are worn more with the rollers that are
worn less. Do this before any rollers wear out.

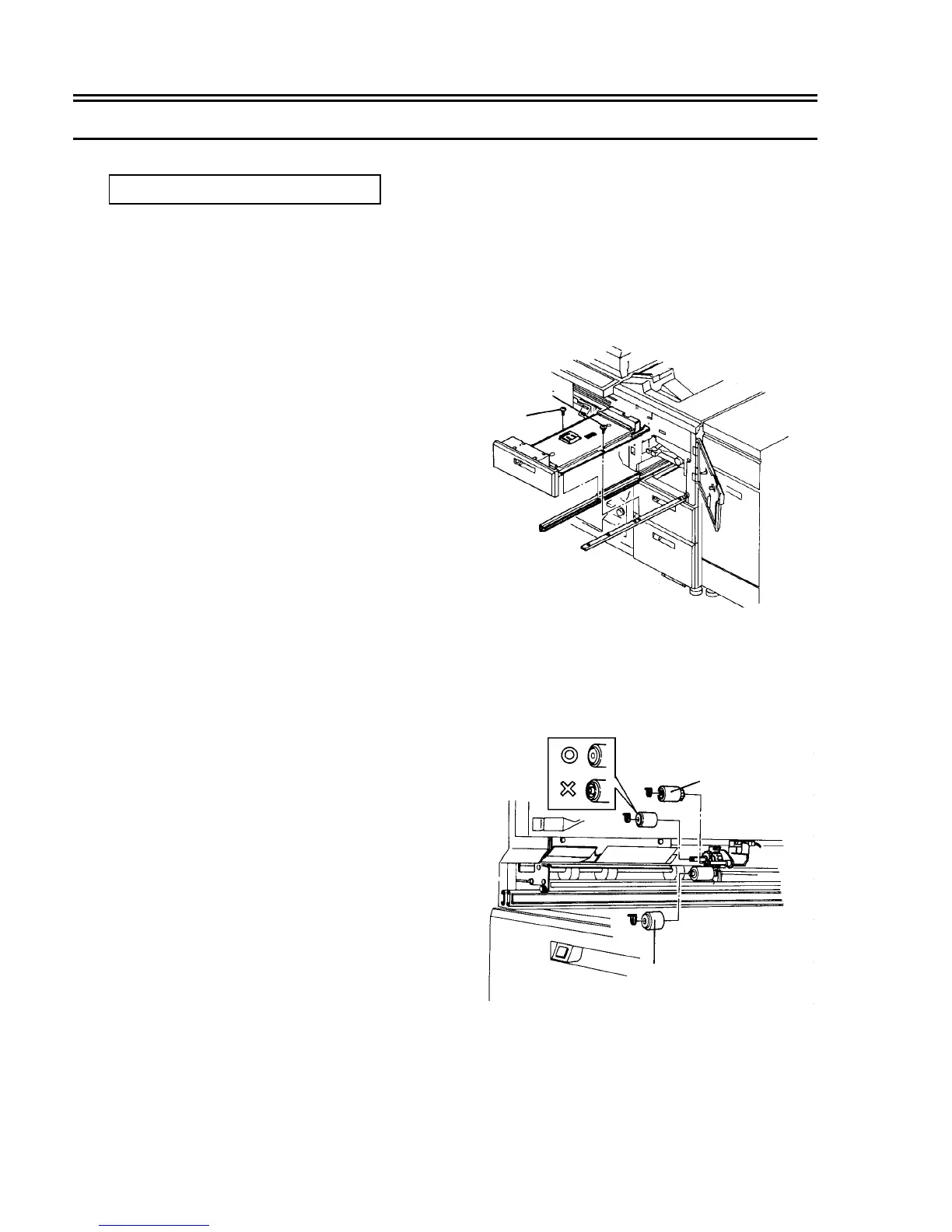

1. Press the tray down keys for all paper trays.
2. Turn off the main switch.
3. Pull out and remove the 1st tray (2 screws).
CAUTION
Note that the unit fixing screws are the stepped
screw on the right side and the plated screw on
the left side.
4. Pull out the 2nd and 3rd trays.
5. Remove stop rings from rollers in the 1st, 2nd, and
3rd feed station.
6. Slide and remove rollers and replace rollers.
CAUTION
• Do not touch the new roller surfaces with
bare hands.
• Install the feed roller in the correct direction.
Stepped screw
Plated screw
Paper feed roller
Pick-up roller
Reverse roller
1 July 1994
Paper Feed
2-1
