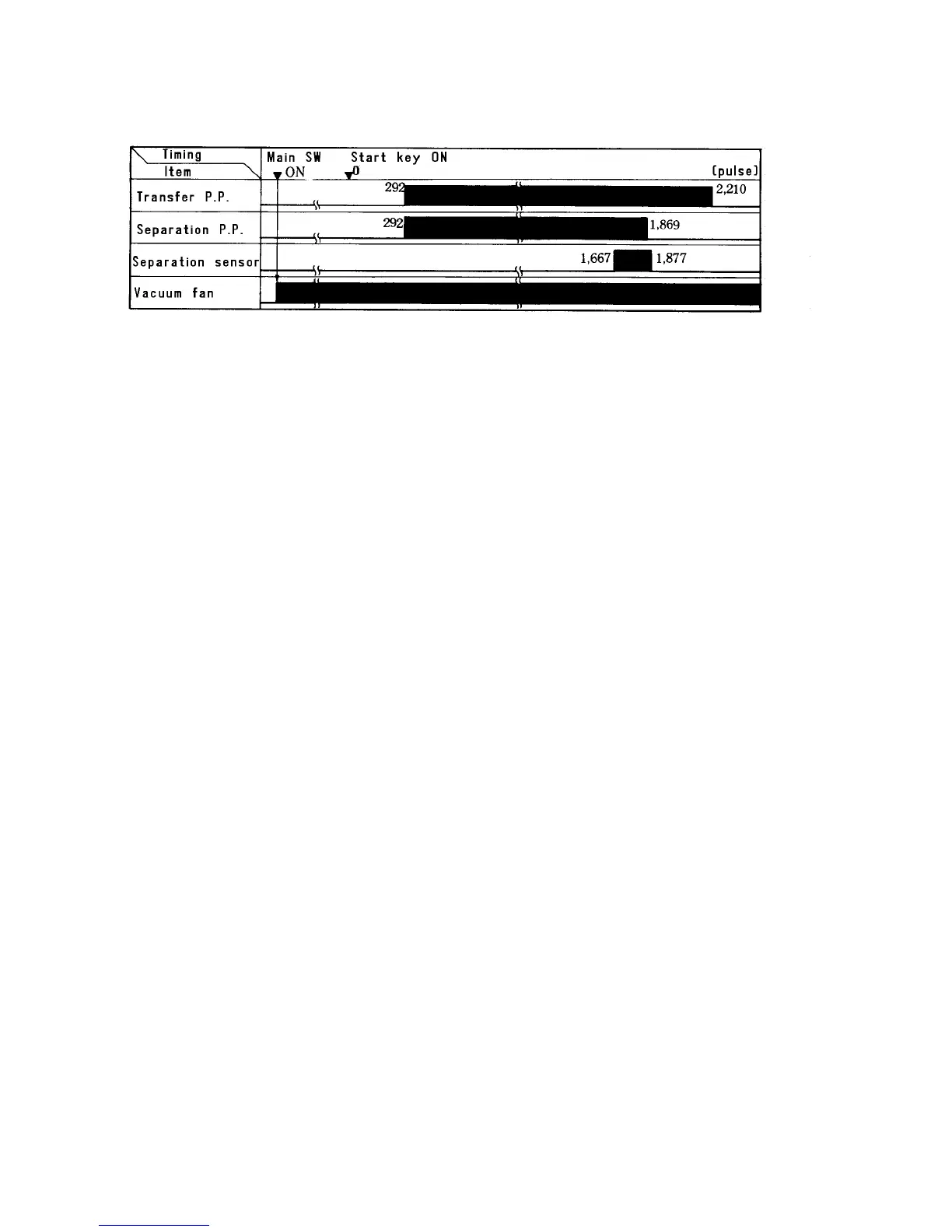

2.6.8 Timing chart
(A4 single copying in the platen cover mode)
The transfer output time is longer than separation output
time because the residual potential is measured for the
process control. The vacuum fan continues to run for 30
minutes by a timer after the main switch is turned OFF.
2.6.9 Error reset
SC11 Transfer leak
SC12 Separation leak
Deteriorated or broken wire.
When a transfer or separation leakage occurs first time, the paper feed jam indicator (loca-
tion A) stays ON on the display panel. (In case of a real paper jam, the indicator blinks, but it
does not stay ON.) This is not counted as a paper feed jam in the logging data, but is
counted as an SC in the [3-07] screen. After that, SC11 (or SC12) will be indicated on the
display panel if the leakage occurs more two times (three times total) in 100 copies.
