2.6 Image Transfer and Paper Separation
2.6.1 Main construction

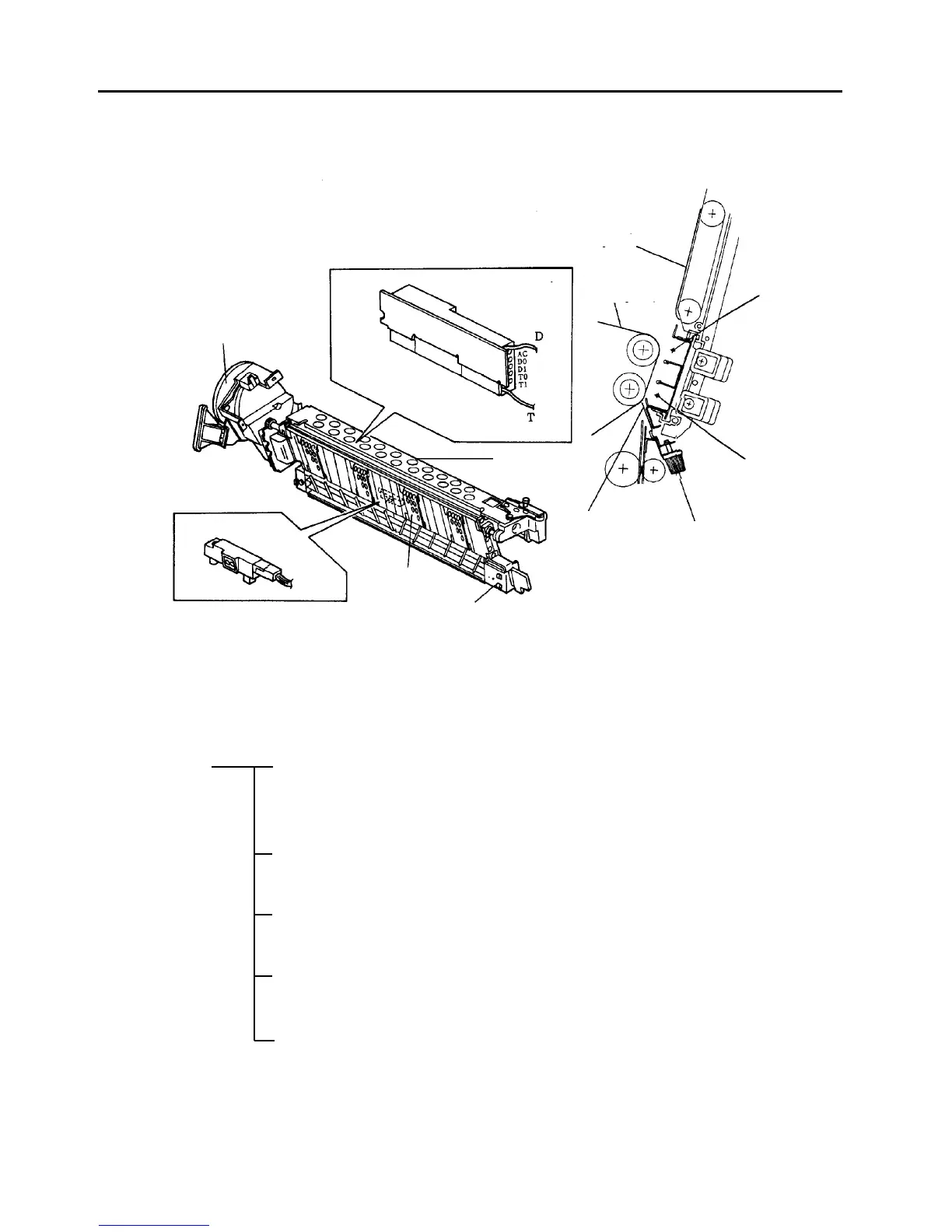

Structural diagram
Construction
The flex separation system. Transfer and paper dis-
charge by the transfer and separation discharge. An mis-
feed on the transport unit error is detected by a
reflective photosensor.
The transport belts are driven by the main motor through
the vertical transport drive.
After separation paper is held against the transport belts
by the suction of the vacuum fan.
The transport release spring is used to release the trans-
port unit.
The positions of the T/S corona and transport units are
separately maintained.
Transport belt
Separation
corona wire
Transfer corona wire
Guide mylar
adjusting screw
Transfer entrance
guide mylar
Vacuum fan
Transport unit
Transfer and
separation corona unit
Transport belt
Separation sensor
Transfer and
separation power
pack
Image transfer and
paper separation
Transfer and separation
mechanism
Transport belt drive
mechanism
Transport vacuum
mechanism
Transport unit release
mechanism
Transfer/separation and
transport unit positioning
1 July 1994
