2.1.2 Replacing parts in the paper feed unit
Replace parts in the paper feed unit when:
• Electric parts are changed (paper feed motor,
various sensors and pick-up solenoid).
• The grip roller is replaced.

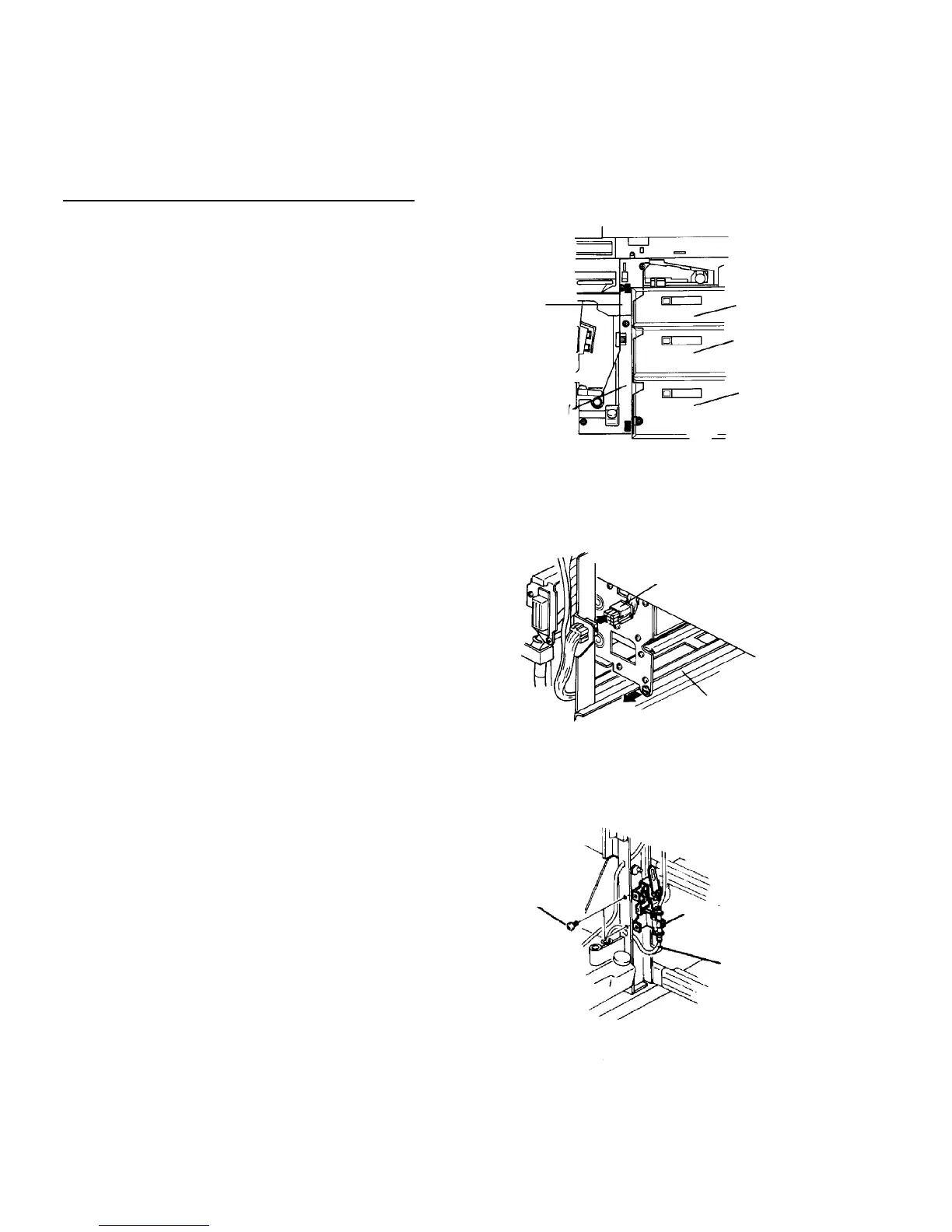

Removing paper feed unit
1. Remove the inner cover(s) from the vertical
transport unit.
2. Remove the paper tray from the paper feed station
as it is required to remove the feed unit.
3. Disconnect and put the paper feed connector to
the far side.
4. Loosen the slot head fixing shaft and pull it about
10 mm in the direction of the arrow.
5. When you need to remove the feed unit at the third
feed station, remove the oil pump unit bracket (2
screws).
1st tray
2nd tray
3rd tray
Remove for the
1st tray
Remove for the
2nd or 3rd tray
Paper feed connector
(-) fixing shaft
Fitting screw
Oil pump unit bracket
Oil tube
To Next Page
